Description

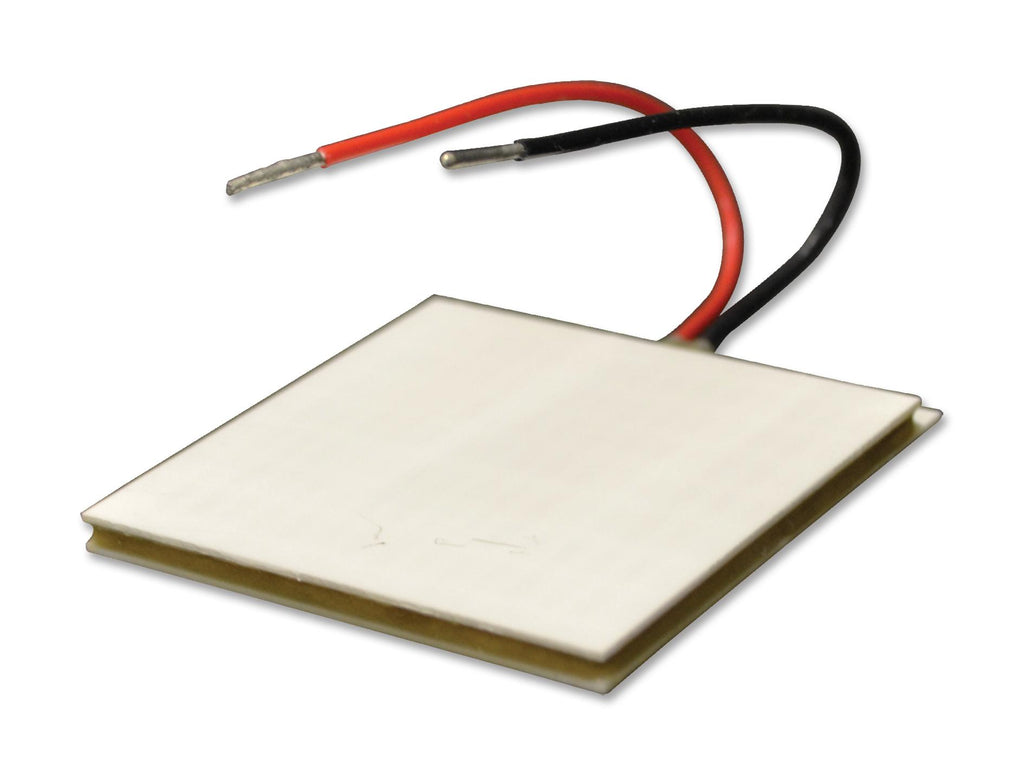

The APH-241-14-11-E is a Thermoelectric (Peltier) Cooler Module with 146W power rating. This type of module can be bonded using heat sink bonder. Modules available for up to 150°C continuous operation and up to 200°C short term operation. Wide variety of finishes available for specific operating ranges or regimes. Standard devices cover a wide range of pellet geometries. Single-stage modules can create systems which are effective from a few mW to few hundred Watts of cooling power. Miniature modules available for cooling components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.
- High temperature
- Bespoke designs available
- Maximum delta T performance up to 76°C
Applications
Thermal Management
Product details
| No. of Stages: 1 Stage |
| Cooling Power Pc: 146W |
| Current Max @ Diff Temperature Max: 8.9A |
| Voltage Max @ Diff Temperature Max: 29.2VDC |
| Length: 55mm |
| Width: 55mm |
| Depth: 3.8mm |
| Temperature Difference Max: 68°C |
| Product Range: APH |
| Internal Resistance: - |
| Lead Wires: 100mm, UL-Style 1569, Unstripped |
Other details
| Brand | EUROPEAN THERMODYNAMICS |
| Part Number | APH-241-14-11-E |
| Quantity | Each |
| Technical Data Sheet EN |  |
