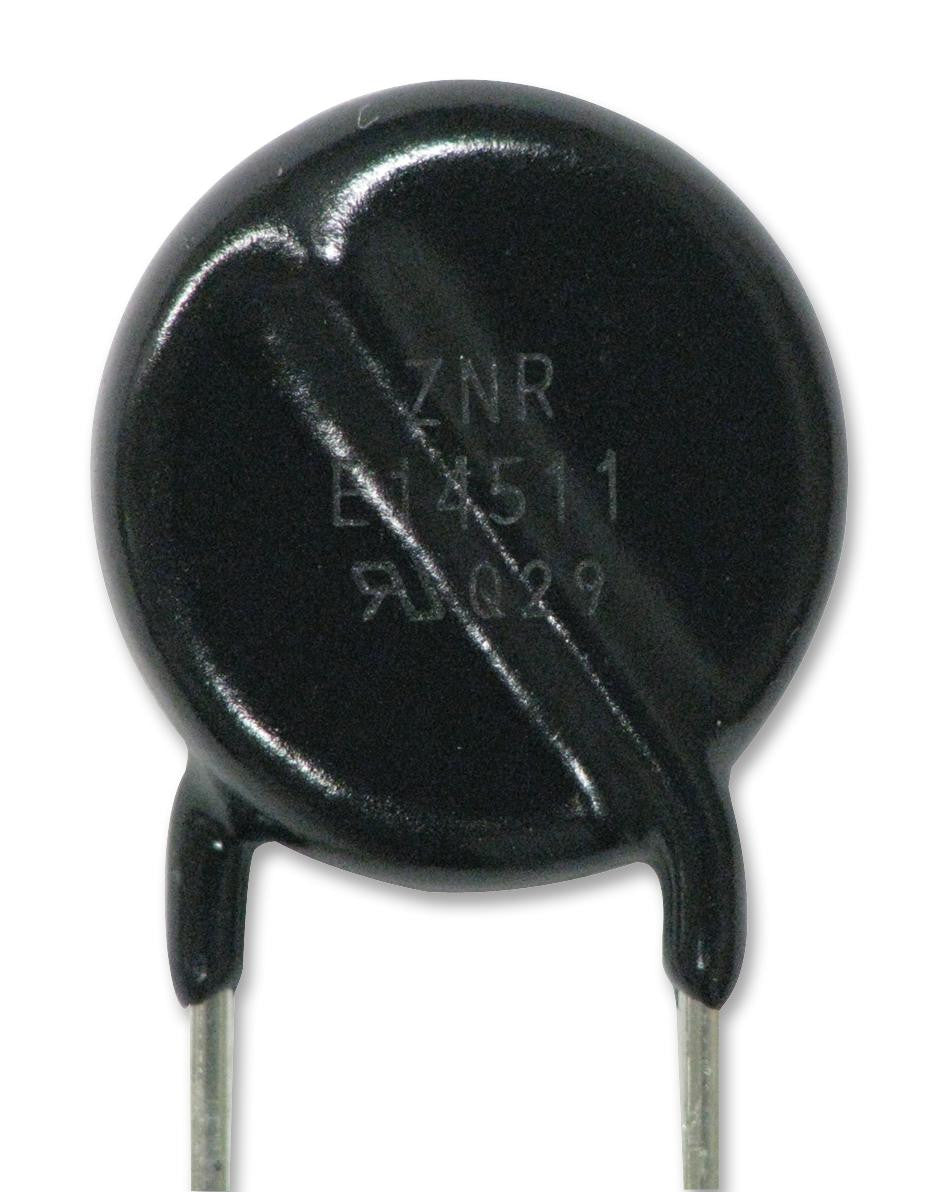

This is a TVS Varistor, Surge Absorber, 140 V, 180 V, ZNR E14 Series, 360 V, Disc 16.5mm product from PANASONIC ELECTRONIC COMPONENTS with the model number ERZE14A221
Product details
| Operating Temperature Min |
-40°C |
| Clamping Voltage Vc Max |
360V |
| Peak Surge Current @ 8/20µs |
10kA |
| Voltage Rating V DC |
180V |
| Operating Temperature Max |
85°C |
| Varistor Case Style |
Disc 16.5mm |
| Product Range |
ZNR E14 Series |
| Automotive Qualification Standard |
- |
| Varistor Type |
Metal Oxide Varistor (MOV) |
| Peak Energy (10/1000uS) |
155J |
| Voltage Rating V AC |
140V |
Other details
| Brand |
PANASONIC ELECTRONIC COMPONENTS |
| Part Number |
ERZE14A221 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
