Texas Instruments MSP430F2132TRHBT MSP430 Microcontroller Family MSP430F2x Series Microcontrollers 16bit 16 MHz

The MSP430F2132TRHBT is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1?s. The device configurations with two 16-bit timers, a fast 10-bit A/D converter integrated reference and a data transfer controller (DTC), a comparator, built-in communication capability using the universal serial communication interface and 24 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.

• 16-bit RISC architecture, 62.5ns instruction cycle time
• Internal frequencies up to 16MHz with four calibrated frequencies to ?1%
• Internal very-low-power low-frequency oscillator
• 32kHz Crystal
• High-frequency (HF) crystal up to 16MHz
• Resonator clock
• External digital clock source
• External resistor
• 16-bit Timer0_A3 with 3 Capture/Compare registers
• 16-bit Timer1_A2 with 2 Capture/Compare registers

• On-chip comparator for analog signal compare function or slope ADC
• 10-bit 200ksps ADC with internal reference, sample-and-hold, autoscan and data transfer controller
• Enhanced UART supporting auto-baudrate detection (LIN)
• IrDA Encoder and decoder
• Synchronous SPI
• Brownout detector
• Serial on-board programming
• No external programming voltage needed
• Programmable code protection by security fuse
• Bootstrap loader

Applications

Aerospace, Defence, Military, Medical, Portable Devices

Other details

Brand	TEXAS INSTRUMENTS
Part Number	MSP430F2132TRHBT
Quantity	Each (Supplied on Cut Tape)

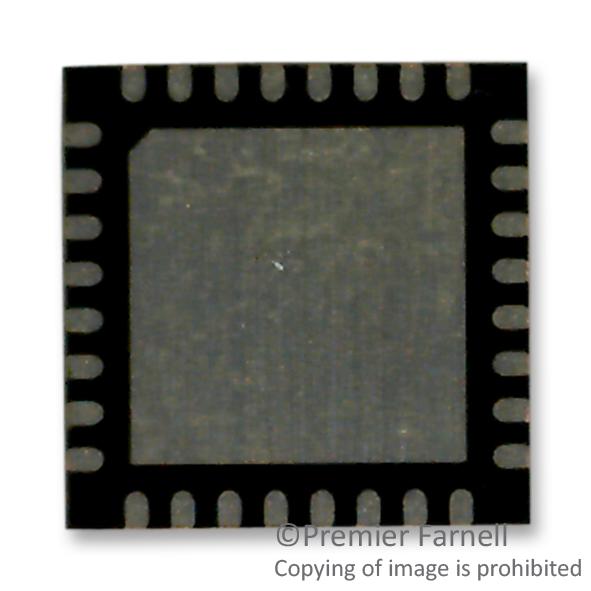

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
