Description
Afinia Einscan-SE V2 Overview
- 1Description
- 2Quick Scanning Capable
- 33D Printer Compatible
- 4Post-Processing

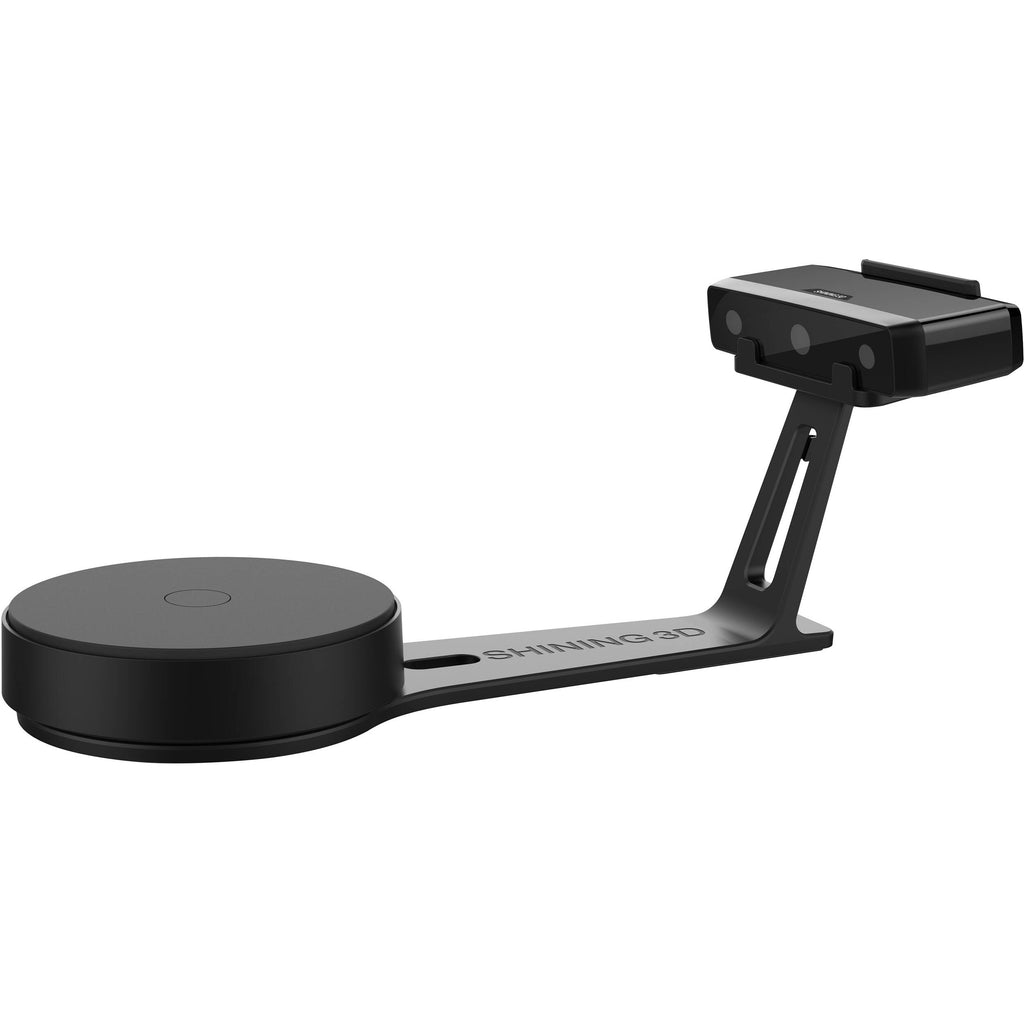

For designers looking to recreate detailed models with accurate 3D scans, the Afinia EinScan-SE V2 3D Scanner with Turntable gives printing enthusiasts a solid foundation for their next reproduction project with enhanced precision and ease of use.

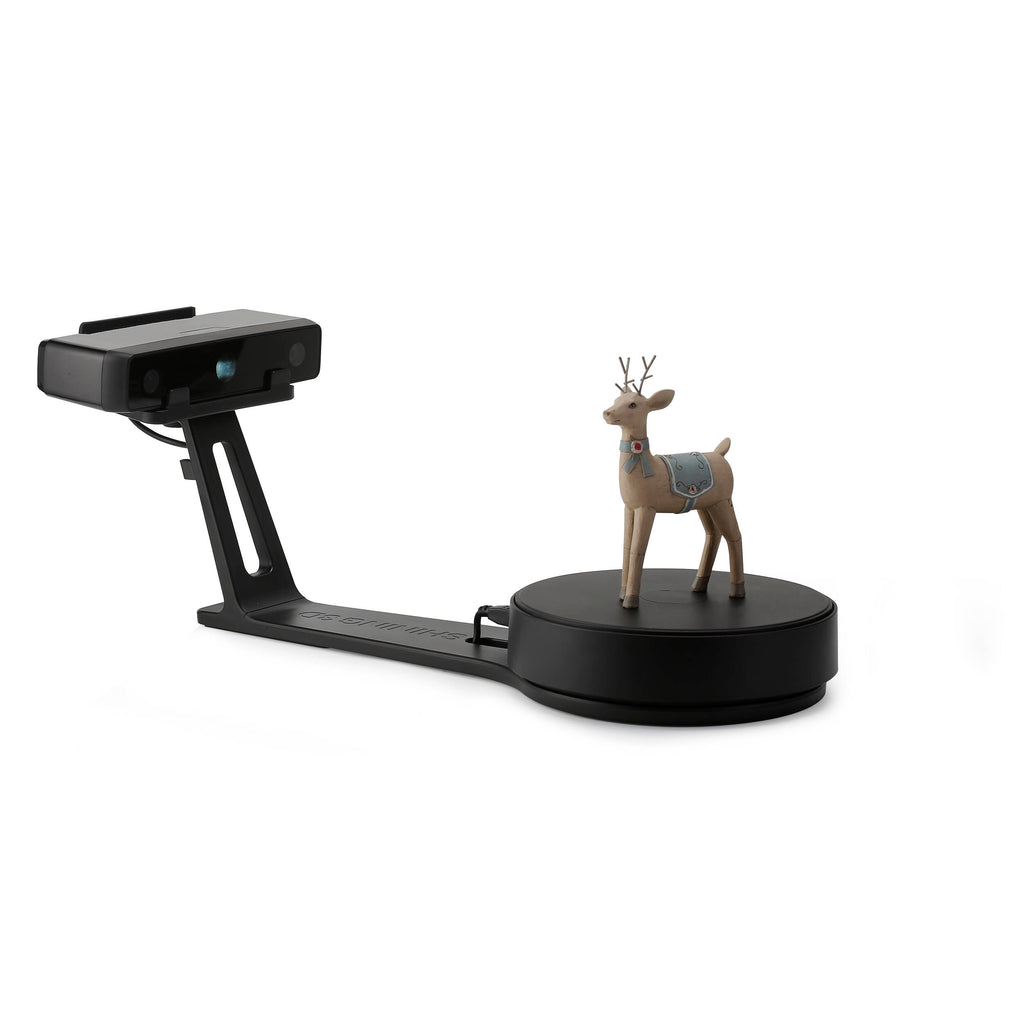

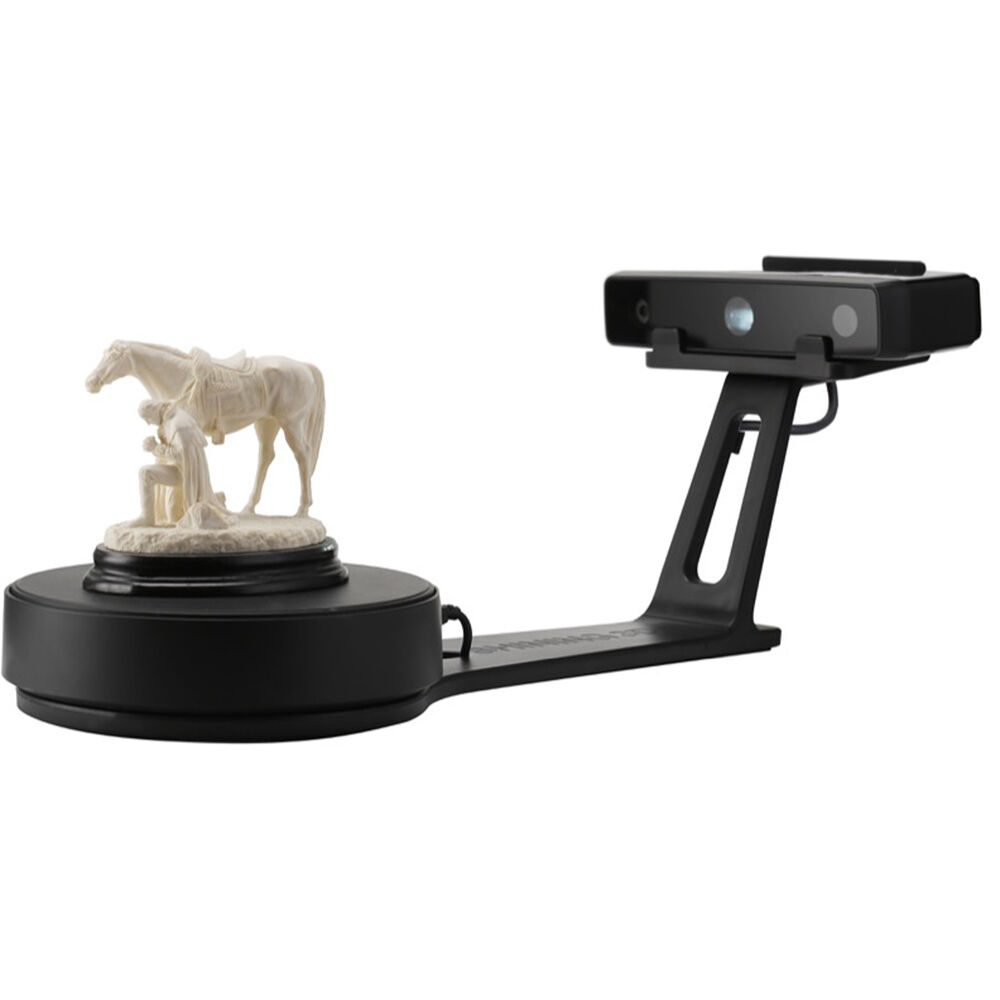

Comprised of a removable scanner with white light LED technology and turntable, scan items as small as 7.9 x 7.9 x 7.9" and as large as 27.6 x 27.6 x 27.6". Built-in texture capture ensures each model is digitally recreated with fine details, making reproduction precise with 0.05mm accuracy. You get single scan and turntable scan modes which allow you to take single shots from multiple angles or have a full 45-second rotation to capture all angles. Automatic calibration reduces your setup time, and if you wish to adjust your scanning distance, you can pair the scanner with an optional tripod.

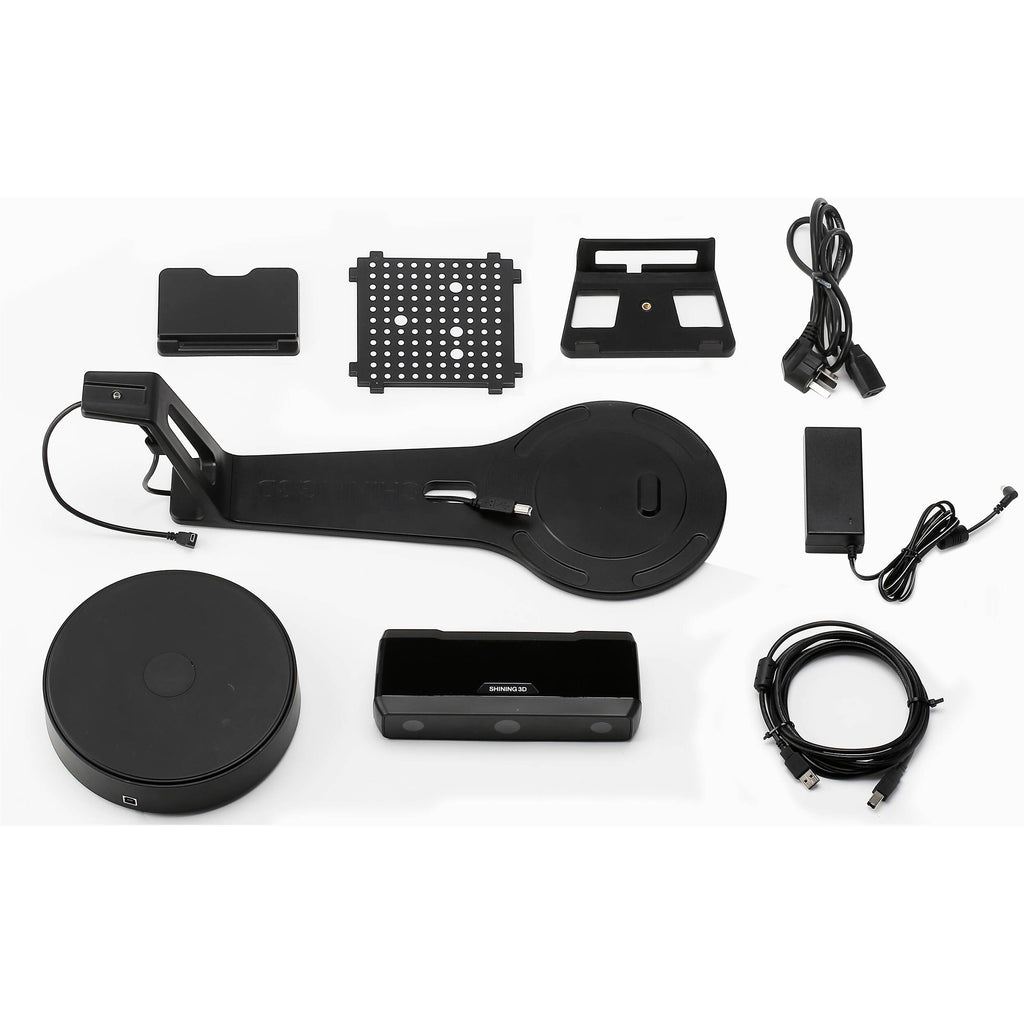

In the Box
- Afinia EinScan-SE V2 3D Scanner with Turntable
- Limited 1-Year Manufacturer Warranty
- Description
- Quick Scanning Capable
- 3D Printer Compatible
- Post-Processing
Afinia Einscan-SE V2 Specs
| Scan Volume |
Minimum:
1.2 x 1.2 x 1.2" / 30 x 30 x 30 mm Maximum: 27.6 x 27.6 x 27.6" / 700 x 700 x 700 mm (Fixed) 7.9 x 7.9 x 7.9" / 200 x 200 x 200 mm (Auto) |
| Scan Speed |
1 Second (Fixed)
45 Second (Auto) |
| Accuracy |
0.05 mm
|
| Image Resolution |
1.3 MP
|
| System Connection |
USB-A 2.0
|
| File Formats |
ASC, OBJ, PLY, STL
|
| Scan Volume |
Minimum:
1.2 x 1.2 x 1.2" / 30 x 30 x 30 mm Maximum: 27.6 x 27.6 x 27.6" / 700 x 700 x 700 mm (Fixed) 7.9 x 7.9 x 7.9" / 200 x 200 x 200 mm (Auto) |
| Scan Speed |
1 Second (Fixed)
45 Second (Auto) |
| Accuracy |
0.05 mm
|
| Stand-off Distance |
11.4 x 18.9" / 290 x 480 mm
|
| Point Distance |
6.69 to 7.9 mil / 0.17 to 0.2 mm
|
| Image Resolution |
1.3 MP
|
| Light Source |
LED
|
| System Connection |
USB-A 2.0
|
| File Formats |
ASC, OBJ, PLY, STL
|
| OS Compatibility |
Windows 7
Windows 8 Windows 10 *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| CPU Requirement |
Intel Core i5 and Faster
|
| Memory Requirement |
16 GB
|
| GPU Requirement |
NVIDIA GeForce GTX 660
|
| VRAM Requirement |
2 GB (Minimum)
|
| Power Consumption |
40 W
|
| DC Input Power |
12 VDC at 3.33 A
|
| Load Capacity |
11 lb / 5 kg
|
| Dimensions |
22.4 x 8.3 x 8.3" / 570 x 210 x 210 mm
|
| Weight |
5.5 lb / 2.5 kg
|
| Package Weight |
10.15 lb
|
| Box Dimensions (LxWxH) |
24.6 x 12.5 x 8.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
