| ₹ 547.13 includes GST and import duties. | |
| B2B customers can avail ₹ 83.44 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

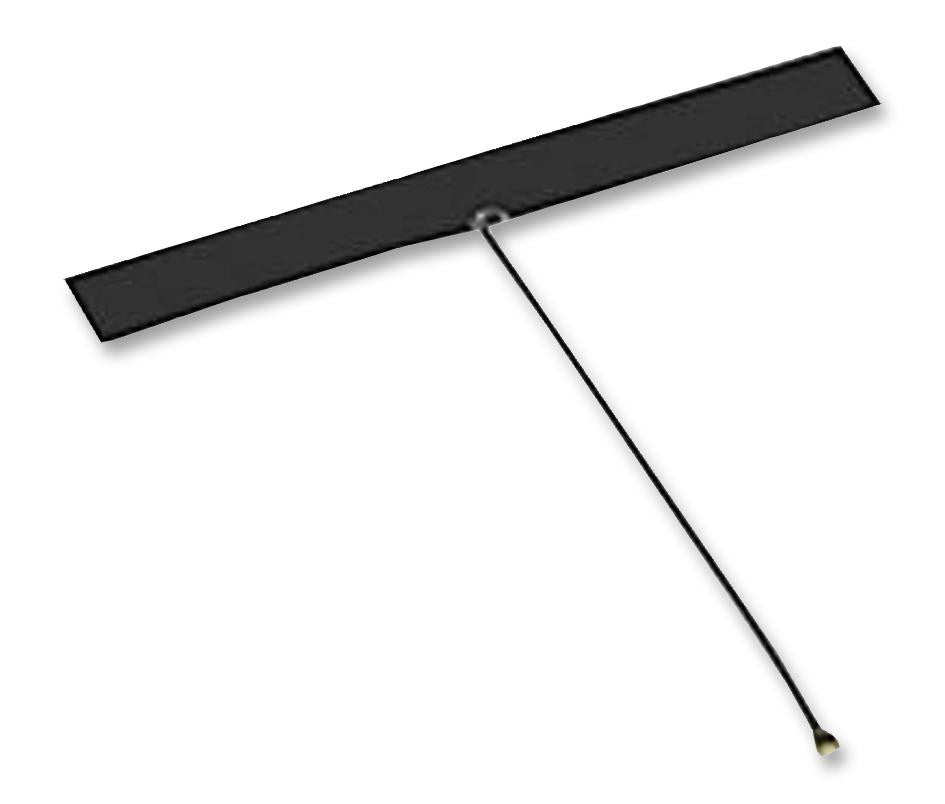

The 105263-0003 is a 6-band cellular stand-alone Omni-directional Antenna with 200mm cable. This lightweight antenna with its compact design offers more space savings than any similar antenna operating over the same frequency bands in the industry. The antennas balanced feed-structure facilitates true ground-plane independence that enables easy integration into wireless devices without PCB-size limitations and influence from land-ground-induced currents. This feature helps free up costly investments in engineering resources and expertise required for frequency tuning and (multiple) band optimization.
- Poly-flexible double-sided adhesive tape for easy peel-and-stick mounting
- Robust coaxial cable to flexi-antenna with pull-force of 18N ensures maximum antenna reliability
Applications
Medical, Industrial, Wireless
Product details
| Input Impedance | 50ohm |
| Antenna Applications | GSM Mobile Phones |
| Antenna Polarisation | Linear |
| Antenna Mounting | Adhesive |
| VSWR | - |
| Product Range | - |
| Frequency Max | 2.69GHz |
| Antenna Type | GSM |
| Frequency Min | 824MHz |
| Input Power | 2W |
| Gain | 3dBi |
Other details
| Brand | MOLEX |
| Part Number | 105263-0003 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 536.19 |
| 3-5 | ₹ 530.72 |
| 5-10 | ₹ 519.77 |
| 10+ | ₹ 508.83 |
Bulk discount will be automatically applied during checkout based on quantity.
