Description

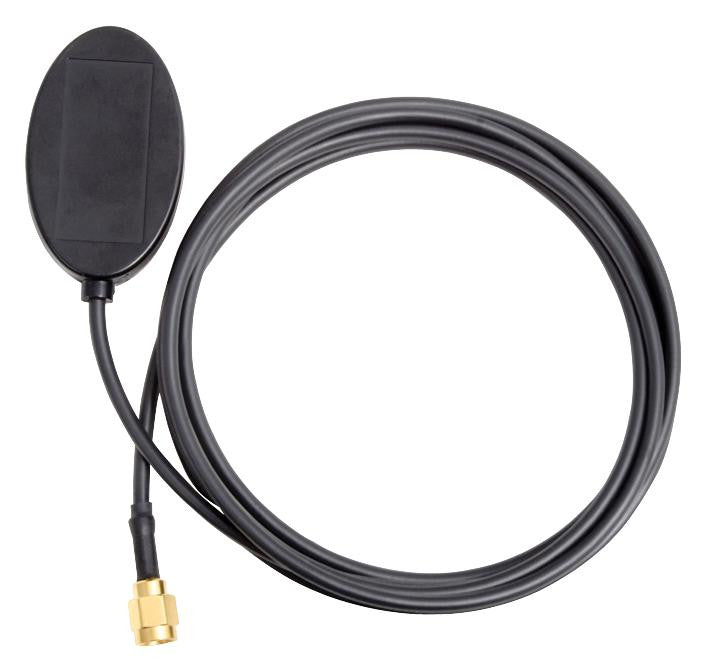

The W4000G197 from Pulse Engineering is an active GPS antenna. It is an active GPS, ultra thin, oval shaped antennas offer versatility for installation, as they can be positioned on the window without orientation concerns. This antenna is mainly used in vehicle tracking, fleet management / asset tracking, in-car infotainment and "Pay-as-you-drive" insurance applications.
- 50 percent thinner than standard GPS antennas
- Versatile installation inside the vehicle
- Glass or dashboard mount
- 5m cable length
- SMA male straight connector
- Frequency is 1575.42MHz
- Omni-directional radiation
- Nominal impedance is 50 ohm
- 26dB gain
- Current consumption is 12mA
Applications
Wireless
Product details
| Input Impedance | 50ohm |
| Antenna Applications | Asset & Fleet Tracking |
| Antenna Polarisation | - |
| Antenna Mounting | SMA Connector |
| VSWR | 1.5 |
| Product Range | - |
| Frequency Max | 1.57542GHz |
| Antenna Type | GPS |
| Frequency Min | - |
| Input Power | - |
| Gain | - |
Other details
| Brand | PULSE ENGINEERING |
| Part Number | W4000G197 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
