Description
Optex SX-360Z Overview
- 1Description
- 2Flexible Pattern Adjustment / Zoom Function
- 3Highly Dense
- 4Multi-Focus Lens
- 5False Alarm Protection
- 6Additional Features

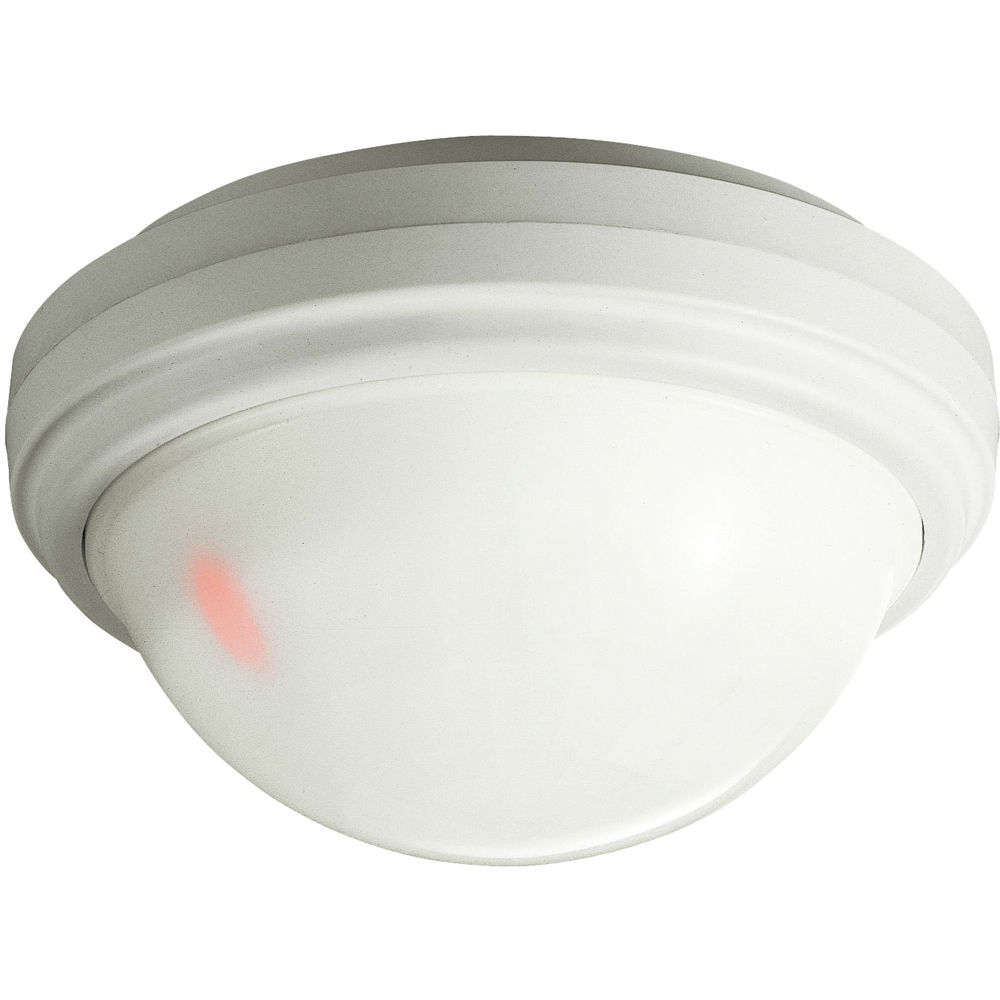

The Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function and highly dense, triple-element detection pattern provides 360° of detection performance at any ceiling height up to 16' high. By simply twisting the unit's domed lens, the detection pattern can be easily adjusted at any installation height, thereby making it a flexible ceiling detector. The 276 dense zones provide a 60' diameter detection area at any installation height from 8 to 16' with no dead spots. This, combined with its compact design, makes the detector suitable for a variety of large or small, residential or commercial applications.
In the Box
- Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function
- Limited 5-Year Manufacturer Warranty
- Description
- Flexible Pattern Adjustment / Zoom Function
- Highly Dense
- Multi-Focus Lens
- False Alarm Protection
- Additional Features
Optex SX-360Z Specs
| Technology |
Passive infrared
|
| Installation |
Commercial, industrial, residential
|
| Zones |
Interior
Detection Zones: 276 |
| Coverage |
Ø 60' (Ø 18 m), 360° zoom
|
| Mounting |
Ceiling Height: 8.0 to 16.0' (2.4 to 5.0 m)
|
| Sensitivity |
3.0°F (-16°C) at 2.0 ft/sec (0.6 m/sec)
|
| Sensitivity Adjustment |
Low:
? 30 to 40' (? 9 to 12 m)<br> Medium: ? 40 to 50' (? 12 to 15 m)<br> High: ? 50 to 60' (? 15 to 18 m)
|
| Speed |
Detectable: 1 to 6 ft/sec ( 0.3 to 1.8 m/sec)
|
| Indicators |
LED: Blinks during warm-up period
alarm condition |
| Alarm |
Period: 2.0 ±0.5 sec
Output: N.C, 28 VDC, 02.A maximum |
| Switch |
Tamper: N.C, opens when cover removed
|
| Count Period |
Pulse: 2.0 ±5 sec, 1,2 or 4
|
| Warm-Up Period |
Approximately 20 sec (LED blinks)
|
| Wiring |
Wire Size:
AWG22 (0.33 mm2) At 12 V: 1,070' (320 m) At 14 V: 2,140' (650 m) AWG20 (0.52 mm2) At 12 V: 1,700' (510 m) At 14 V: 3,400' (1,020 m) AWG18 (0.83 mm2) At 12 V: 2,700' (820 m) At 14 V: 5,300' (1,600 m) |
| Power Input |
6 to 18 VDC
|
| Current Draw |
13 mA (normal), 18mA (maximum)
|
| RF Interference |
No alarm 30 V/m
|
| Humidity |
95% maximum
|
| Operating Temperature |
-4 to 122°F (-20 to 50°C)
|
| Diameter |
5.04" (128.00 mm)
|
| Depth |
2.46 to 2.88" (67.00 to 73.00 mm)
|
| Weight |
8 oz (224 g)
|
| Package Weight |
0.7 lb
|
| Box Dimensions (LxWxH) |
6 x 6 x 3"
|
