Description

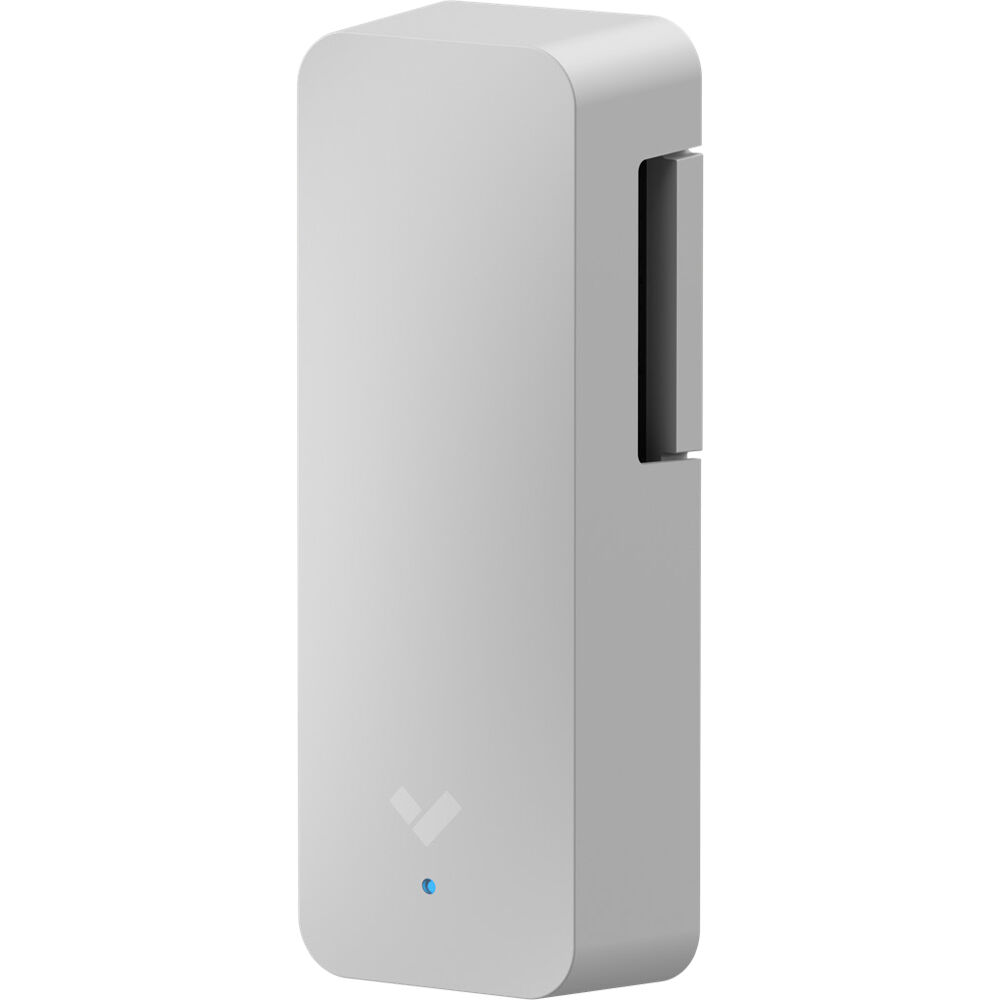

Verkada BX21-HW Overview
Configure components of your security system with the Verkada Wireless Relay. This relay accepts third-party sirens, strobes, and other wired alarm signals. Configure the device to build auto-trigger alarm outputs for an all-in-one flexibly deployed unit. Take advantage of easy setup and manage the relay in Verkada Cloud Command, available separately. The unit includes mounting hardware.
Automatically Trigger Alarm Outputs
- Wire 12 to 24 VDC sirens, strobes, or other signaling devices to the output of the relay for a fully customized intrusion response, supporting a maximum of 30W output power
- Output automatically activates if an alarm is raised
Flexible Deployments
- Integrates with third-party wired devices
- Wireless connectivity for flexible deployments
- Lightweight alternative to alarm panel for one-off inputs or outputs
Cloud-Managed for Easy Setup
- Pairs automatically with the BC82 Alarm Console, BK21 Alarm Keypad, or BH61 Wireless Hub
- Easily set up and manage settings in Command
- Monitor device status and recent events, even on the go
Built to last
- Covered by industry-leading 10-year warranty
- Automatic firmware updates keep systems secure
Items Included
- Verkada Wireless Relay
- T10 Torx Wrench
- Limited 10-Year Manufacturer Warranty
Additional Resources
Verkada BX21-HW Specs
General
| Compatibility |
Verkada BC82 Alarm Console / BK21 Alarm Keypad / BH61 Wireless Hub
|
Inputs / Outputs
| Inputs |
Wired Signal Input (Optional)
|
Wireless
| Wireless |
Yes
|
| Global Positioning (GPS, GLONASS, etc.) |
Yes
|
| Wireless |
Proprietary 915 MHz (US & Canada)
868 MHz (UK & Europe) 916.8 MHz (ANZ) |
| Wireless Range |
1000' / 305 m Line-of-Sight
200' / 61 m Typical Enviorment |
Power
| Power Source |
DC Input
|
| DC Input Power |
12 to 24 VDC
|
| Power Consumption |
30 W
|
Environmental
| Certifications |
FCC, IC, CE, UKCA, RCM, NDAA, IC
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
0 to 95%
|
Physical
| Mounting |
Back: 1x Adhesive Strip
Back: 2x Wall Anchors & Screws |
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
4.7 x 1.7 x 1.19" / 119.6 x 44 x 30.3 mm
|
| Weight |
0.5 lb / 226 g
|
