Description

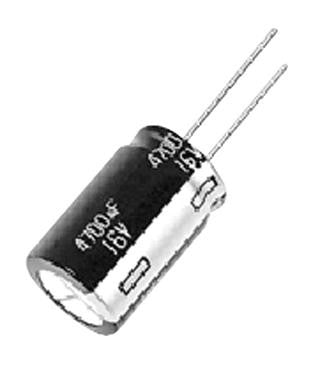

The Panasonic NHG series is automotive grade Type A, radial leaded polarized aluminium electrolytic capacitor. NHG series parts cover broad range of voltage ratings and capacitance values. Typical applications include audio, video and general purpose electronic circuits.
- Capacitance value ranges 2.2µF to 22000µF for 6.3VDC to 100VDC
- Capacitance value ranges 1µF to 330µF for 160VDC to 450VDC
- Available in -55°C to 105°C and -25°C to 105°C temperature range based on rated voltage
- Capacitance tolerance is ±20%
- Endurance at 105°C from 1000h to 2000h
- Low ESR and high ripple current
- Automotive grade AEC-Q200 compliant
Applications
Industrial, Automotive, Consumer Electronics, Portable Devices, Power Management
Product details
| Operating Temperature Min | -25°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 1000 hours @ 105°C |
| Voltage Rating | 160V |
| Product Range | NHG Series |
| Diameter | 6.3mm |
| Automotive Qualification Standard | - |
| ESR | - |
| Capacitance | 4.7µF |
| Lead Spacing | 2.5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 11.2mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | ECA2CHG4R7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
