Description

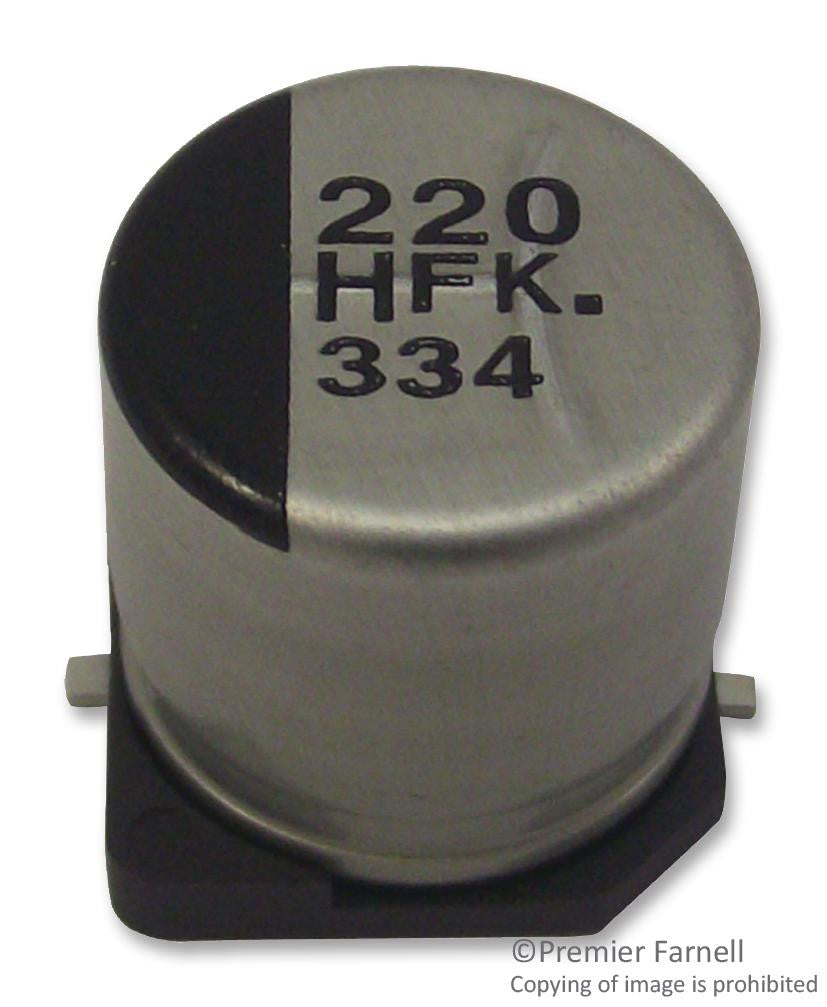

The Panasonic FC series capacitors are automotive grade type V, surface mount aluminium electrolytic capacitors. The capacitance values ranges from 1µF to 1500µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range of 6.3VDC to 50VDC
- Tolerance of ±20%
- Endurance of 1000h at 105°C
- Operating temperature range -40°C to 105°C
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 1000 hours @ 105°C |
| Voltage Rating | 6.3V |
| AE Capacitor Case | Radial Can - SMD |
| Product Range | FC Series |
| Diameter | 8mm |
| Automotive Qualification Standard | AEC-Q200 |
| ESR | - |
| Capacitance | 220µF |
| Packaging | Cut Tape |
| Ripple Current AC | 150mA |
| Height | 6.2mm |
| MSL | - |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | EEEFC0J221P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 87.6 |
| 3-5 | ₹ 86.71 |
| 5-10 | ₹ 84.92 |
| 10+ | ₹ 83.13 |
Bulk discount will be automatically applied during checkout based on quantity.
