Description

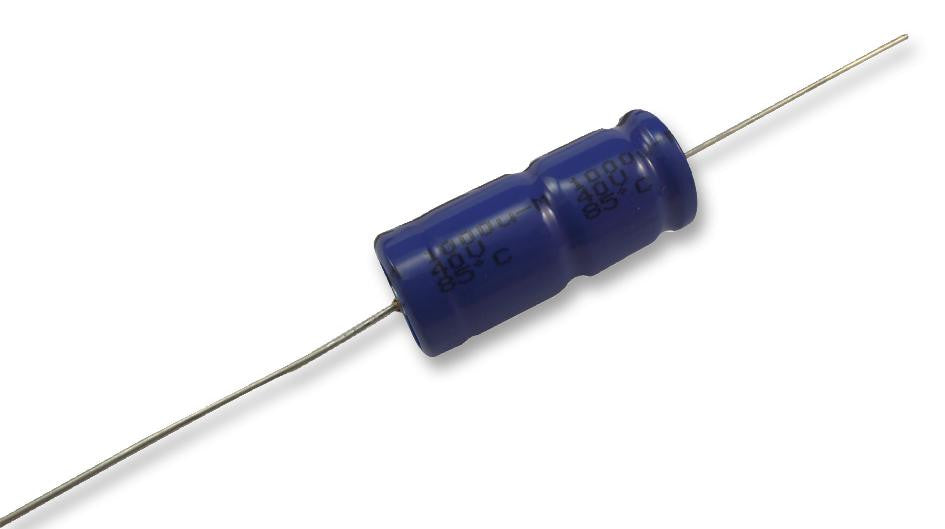

The Vishay 021 ASM series are axial leaded, miniature, standard aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 15mF. These capacitors are used in smoothing, filtering, buffering circuits, power supply, audio-video and general purpose applications.
- ±20% tolerance
- Working voltage range of 6.3V to 100V
- Operating temperature range -40°C to +85°C
- Endurance of 2500hours to 8000hours at 85°C based on case size
- Miniaturized, high CV product per unit volume
- Charge and discharge proof
- Cylindrical aluminium case, insulated with a blue sleeve
- Low mounting height boards, vibration and shock resistant
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Operating Temperature Min | -40°C |
| Capacitor Terminals | Axial Leaded |
| Operating Temperature Max | 85°C |
| Lifetime @ Temperature | 2000 hours @ 85°C |
| Voltage Rating | 63V |
| Product Range | 021 ASM Series |
| Diameter | 8mm |
| Automotive Qualification Standard | - |
| ESR | 1.3ohm |
| Capacitance | 100µF |
| Lead Spacing | - |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 18mm |
Other details
| Brand | VISHAY |
| Part Number | MAL202138101E3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Packaging / Drawing / Footprint EN | |
| Product Change Notice EN | |
