| ₹ 74.64 includes GST and import duties. | |
| B2B customers can avail ₹ 11.38 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

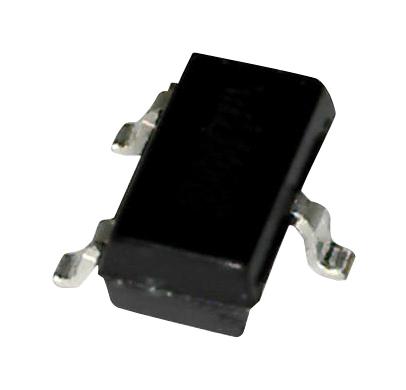

The ZXCT1109SA-7 is a low power high-side unipolar Current Sense Monitor. This eliminate the need to disrupt the ground plane when sensing a load current. The wide common-mode input voltage range and low quiescent current coupled with SOT23 packages make them suitable for a range of applications, including adapters, automotive and systems operating from industrial 24V rails. The device is line powered and as such does not need a separate supply rail. Quiescent current is only 3µA thereby minimising current sensing error. One external gain setting resistor increases versatility by permitting wide gain ranges.
- High accuracy current measurement
- Low quiescent current (3µA)
- Simple to use
- High side monitoring
Automotive, Test & Measurement, Power Management, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | DIODES INC. |
| Part Number | ZXCT1109SA-7 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 73.15 |
| 3-5 | ₹ 72.4 |
| 5-10 | ₹ 70.91 |
| 10+ | ₹ 69.42 |
Bulk discount will be automatically applied during checkout based on quantity.
