Description
The MCP601-I/SN is a low-power Operational Amplifier is offered in single (MCP601) configurations. The op amp utilize an advanced CMOS technology that provides low bias current, high speed operation, high open-loop gain and rail-to-rail output swing. Product offering operates with a single supply voltage that can be as low as 2.7V, while drawing 230µA (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation. Device is appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current.
- Input range includes ground
- Unity-gain stable
Applications
Test & Measurement, Signal Processing
Product details

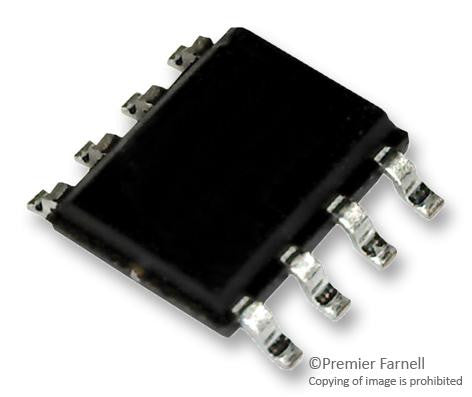

| Amplifier Case Style | SOIC |
| Operating Temperature Min | -40°C |
| Supply Voltage Range | 2.7V to 5.5V |
| Operating Temperature Max | 85°C |
| No. of Amplifiers | 1 Amplifier |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| Slew Rate | 2.3V/µs |
| Packaging | Each |
| Bandwidth | 2.8MHz |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP601-I/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
