Description
The MCP6N11-001E/SN is an Instrumentation Amplifier (INA) with enable/VOS calibration pin (EN/CAL) and several minimum gain options. It is optimized for single-supply operation with rail-to-rail input (no common mode crossover distortion) and output performance. Two external resistors set the gain, minimizing gain error and drift-over-temperature. The reference voltage (VREF) shifts the output voltage (VOUT). The supply voltage range (1.8 to 5.5V). All devices are fully specified from -40 to +125�C.
- Rail-to-rail input and output
- Gain set by 2 external resistors
- Minimum gain (GMIN) options - 1, 2, 5, 10 or 100 V/V
- Power supply rejection ratio (PSRR) - 112dB (typical, GMIN = 100)
- 800�A/channel Typical supply current
- Single channel
- (EN/CAL) Enable/VOS calibration pin
Applications
Portable Devices, Sensing & Instrumentation, Power Management
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Amplifier Case Style | SOIC |
| Operating Temperature Min | -40�C |
| Supply Voltage Range | 1.8V to 5.5V |
| Operating Temperature Max | 125�C |
| No. of Amplifiers | 1 Amplifier |
| CMRR | 94dB |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Slew Rate | 9V/�s |
| Input Offset Voltage | 3mV |
| Packaging | Each |
| Bandwidth | 500kHz |
| Amplifier Output | Rail to Rail |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP6N11-001E/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

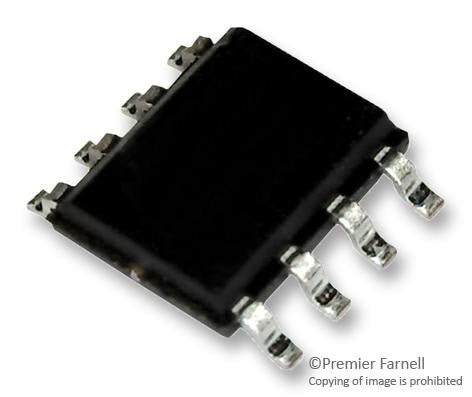

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
