| ₹ 232.73 includes GST and import duties. | |
| B2B customers can avail ₹ 35.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The MCP6N11-100E/SN is a rail-to-rail single-channel Instrumentation Amplifier with enable/VOS calibration pin (EN/CAL) and several minimum gain options. It is optimized for single-supply operation with rail-to-rail input (no common mode crossover distortion) and output performance. Two external resistors set the gain, minimizing gain error and drift over temperature. The supply voltage range (1.8 to 5.5V) is low enough to support many portable applications. This device is fully specified from -40 to +125�C.
- Rail-to-rail input and output
- Gain set by 2 external resistors
- No common mode crossover distortion
- 115dB Common mode rejection ratio (CMRR) (typical, GMIN=100)
- 112dB Power supply rejection ratio (PSRR) (typical, GMIN=100)
- 800�A/channel (typical) Supply current
Applications
Sensing & Instrumentation, Power Management
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Amplifier Case Style | SOIC |
| Operating Temperature Min | -40�C |
| Supply Voltage Range | 1.8V to 5.5V |
| Operating Temperature Max | 125�C |
| No. of Amplifiers | 1 Amplifier |
| CMRR | 115dB |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Slew Rate | 6V/�s |
| Input Offset Voltage | 350�V |
| Packaging | Each |
| Bandwidth | 500kHz |
| Amplifier Output | Rail to Rail |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP6N11-100E/SN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

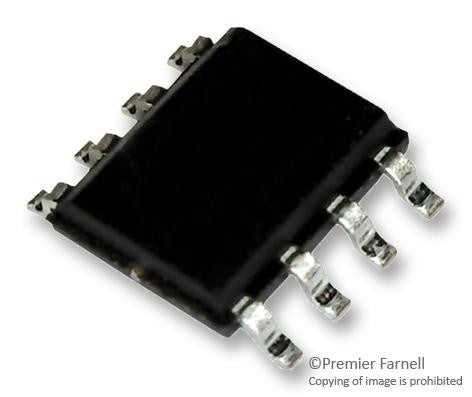

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 228.08 |
| 3-5 | ₹ 225.75 |
| 5-10 | ₹ 221.09 |
| 10+ | ₹ 216.44 |
Bulk discount will be automatically applied during checkout based on quantity.
