Description

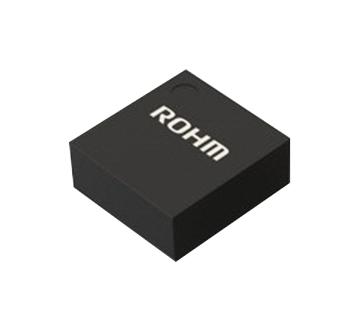

BD5291GWL-E2 is a single operational amplifier with input/output rail-to-rail. It features input/output rail-to-rail operation with a supply voltage as low as 1.7V, wide input/output range when operated at low voltage. In addition, ultra low input bias current (1pA typical) due to MOSFET input, it is suitable for using sensor amplifiers. It is used in applications such as buffer, active filter, sensor amplifier, battery-powered equipment.
- Low operating supply voltage, input/output rail-to-rail
- Low input offset voltage, high common mode rejection ratio
- High slew rate, operating voltage range from 1.7V to 5.5V
- Slew rate is 2.5V/µs typical
- Input common-mode voltage range from VSS to VDD
- Input offset voltage is ±2.5mV maximum
- Common-mode rejection ratio is 70dB minimum
- Operating temperature range from -40°C to +85°C

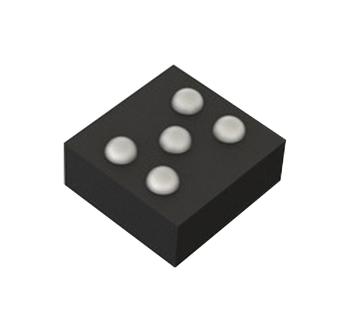

- Package style is WLCSP
Product details
Other details
| Brand | ROHM |
| Part Number | BD5291GWL-E2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
