Description

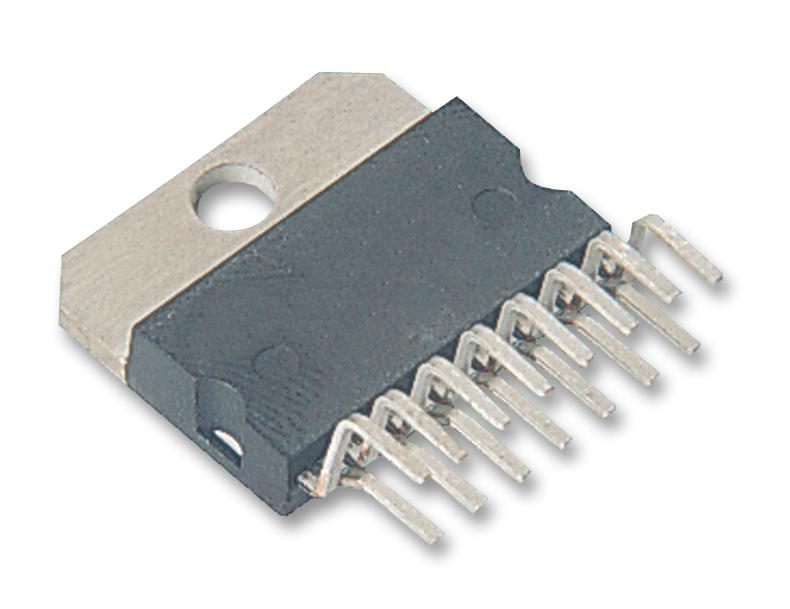

The TDA7294V is a DMOS audio amplifier with mute and standby function in Multiwatt15V package. This device is intended for use as audio class AB amplifier in Hi-Fi field applications. It is able to supply highest power into both 4ohm and 8ohm loads even in presence of poor supply regulation with high supply voltage rejection. The built-in mute function with turn-on delay simplifies the remote operation avoiding switching on-off noises.
- High output current capability
- Very high operating voltage range from ±10 to ±40V
- High output power up to 100W (music power)
- Input bias current of 500nA
- Quiescent current of 30mA
- Slew rate of 10V/µs
- Frequency response (-3dB) range from 20Hz to 20KHz
- Short circuit protection and thermal shutdown
- Very low noise and distortion
- Operating ambient temperature range from 0°C to 70°C
Signal Processing, Audio, Consumer Electronics, Portable Devices
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | TDA7294V |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
