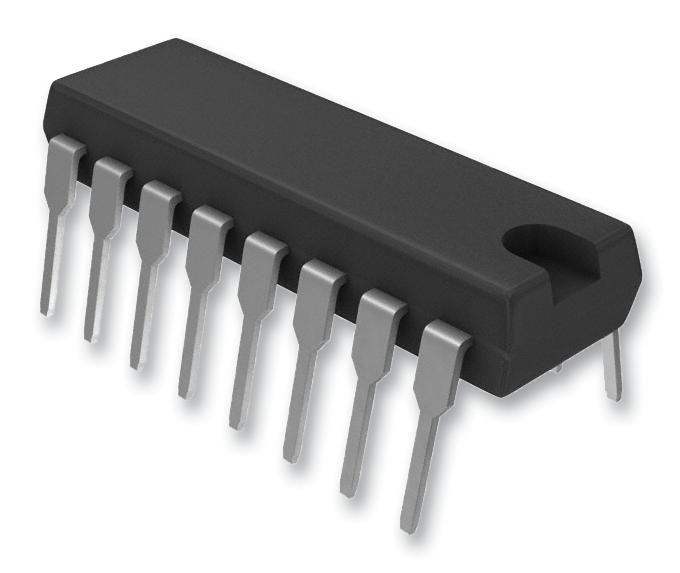

Texas Instruments INA125P Instrument Amplifier 2 250 µV 0.02 V/µs 150 kHz ± 1.35V to 18V DIP

The INA125P is a low power, high accuracy instrumentation amplifier with precision voltage reference in 16pin DIP package. It provides complete bridge excitation and precision differential input amplification on single integrated circuit. A single external resistor sets any gain from 4 to 10000. The INA125P is laser trimmed for low offset voltage, low offset drift and high common mode rejection. The voltage reference is externally adjustable withpin selectable voltages of 1.24V, 2.5V, 5V and 10V for use with variety of transducers. The reference voltage is accurate to ±0.5% (maximum) with ±35ppm/°C drift (maximum). Sleep mode allows shutdown and duty cycle operation to save power.

• -3db bandwidth of 150KHz at G=4
• Low quiescent current of 460µA
• Low offset voltage of ±50µV
• Low offset drift of ±2mV/°C (maximum)
• Low input bias current of 10nA
• High CMR of 114dB at G=500
• Low noise of 38nV/?Hz at f=1KHz
• Input protection to ±40V
• Single supply range from 2.7V to 36V and dual supply range from ±1.35V to ±18V
• Operating temperature range from -40°C to 85°C

Applications

Signal Processing, Industrial, Automation & Process Control, Sensing & Instrumentation

Warnings This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	INA125P
Quantity	Each
