Texas Instruments LM2903QDRQ1 LM2903QDRQ1 Analogue Comparator Differential 2 Comparators 1.3 µs 2V to 36V Soic 8 Pins

The LM2903QDRQ1 is an automotive catalogue Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies is possible, as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

• Low supply-current drain independent of supply voltage - 0.4mA per comparator
• Common-mode input voltage range includes ground
• ±36V Differential input voltage range equal to maximum-rated supply voltage
• Low output saturation voltage
• Output compatible with TTL, MOS and CMOS
• Green product and no Sb/Br

Applications

Automotive, Industrial, Sensing & Instrumentation

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LM2903QDRQ1
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN

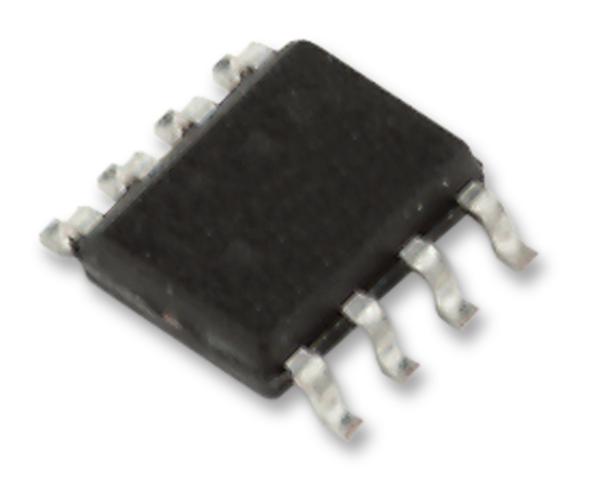

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
