Description

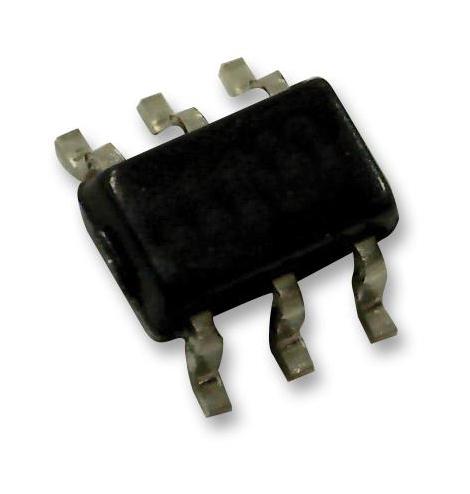

The OPA355NA/3K is a high-speed voltage-feedback CMOS Operational Amplifier with digital shutdown (enable) function. The OPA355 is unity-gain stable and can drive large output currents. This feature provides power savings during idle periods and places the output in a high-impedance state to support output multiplexing. Common-mode input range for the OPA355 extends 100mV below ground and up to 1.5V from V+. The output swing is within 100mV of the rails, supporting wide dynamic range.
- Input range includes ground
- Rail-to-rail output (within 100mV)
- Thermal shutdown function
- Excellent video performance - 0.02% diff gain, 0.05° diff phase and 0.1dB gain flatness of 75MHz
- 5.8nV/�Hz Low noise
- 3pA Low input bias current
- 3.4µA Low shutdown current
- 100ns/30ns Enable/disable time
- Green product and no Sb/Br
Imaging, Video & Vision, Test & Measurement, Signal Processing, Communications & Networking
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA355NA/3K |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
