Description

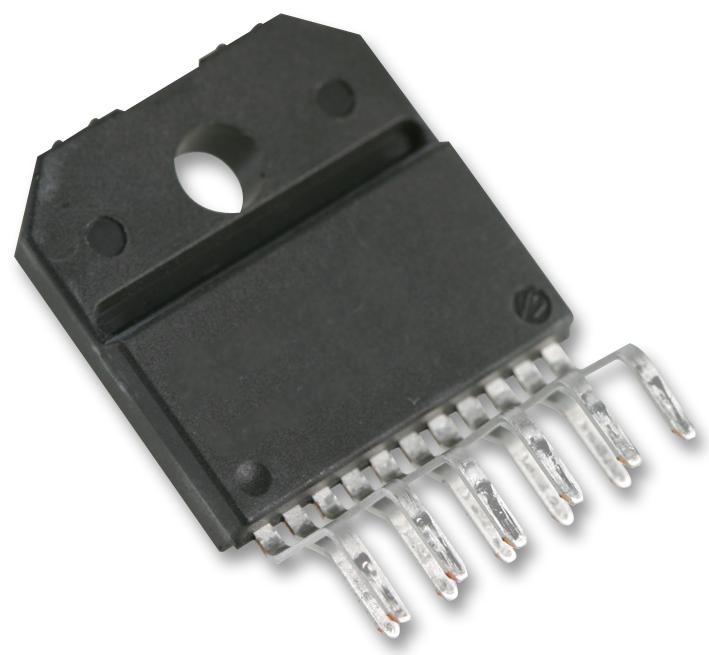

The OPA541AP is a high power, monolithic FET input operational amplifier in 11 pin TO-220 package. Internal current limit circuitry can be user programmed with single external resistor protecting amplifier and load from fault conditions. The OPA541 is fabricated using a proprietary bipolar/FET process. It uses single current limit resistor to set both positive and negative current limits. Applications currently using hybrid power amplifiers requiring two current limit resistors need not be modified.
- Capable of operation from power supplies up to ±40V
- Continuous current of 5A and peak current of 10A
- Programmable current limit
- Gain bandwidth product of 1.6MHz
- Slew rate of 10V/µs
- Input offset voltage of ±2mV
- Input bias current of 4pA
- Common mode rejection of 113dB
- Power supply voltage from ±10V to ±35V
- Operating temperature range from -25°C to 85°C
Signal Processing, Motor Drive & Control, Audio
Warnings This integrated circuit can be damaged by ESD. Failure to observe proper handling and installation procedures can cause damage.Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | OPA541AP |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5059.56 |
| 3-5 | ₹ 5007.94 |
| 5-10 | ₹ 4904.68 |
| 10+ | ₹ 4801.42 |
Bulk discount will be automatically applied during checkout based on quantity.
