Description

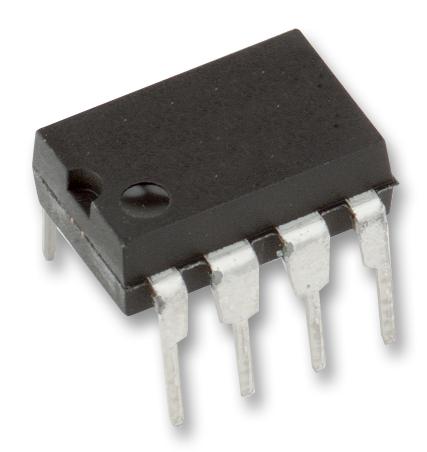

The TLV272IP is a dual Operational Amplifier with rail-to-rail output. The TLV27x takes the minimum operating supply voltage down to 2.7V over the extended industrial temperature range while adding the rail-to-rail output swing feature. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x also provides 3MHz bandwidth from only 550µA. The maximum recommended supply voltage is 16V, which allows the devices to be operated from a variety of rechargeable cells (±8V supplies down to ±1.35V). The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
- 550µA/channel Supply current
- 39nV/?Hz Input noise voltage
- 1pA Input bias current
- 2µV/°C Typical offset drift
- 80dB Typical CMRR
Industrial
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TLV272IP |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 295.25 |
| 3-5 | ₹ 292.24 |
| 5-10 | ₹ 286.22 |
| 10+ | ₹ 280.19 |
Bulk discount will be automatically applied during checkout based on quantity.
