Texas Instruments UA747CN Operational Amplifier Dual 2 1 MHz 0.5 V/µs ± 9V to 15V DIP 14 Pins

The UA747CN is a Dual General-purpose Operational Amplifier features offset-voltage null capability. Each half is electrically similar to UA741. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected and the internal frequency compensation ensures stability without external components. A low-value potentiometer may be connected between the offset null inputs to null out the offset voltage. The UA747C is characterized for operation from 0 to 70°C.

• No frequency compensation required
• Low power consumption
• Short-circuit protection
• Offset-voltage null capability
• Wide common-mode and differential voltage ranges
• No latch-up
• Green product and no Sb/Br

Applications

Signal Processing

Other details

Brand	TEXAS INSTRUMENTS
Part Number	UA747CN
Quantity	Each

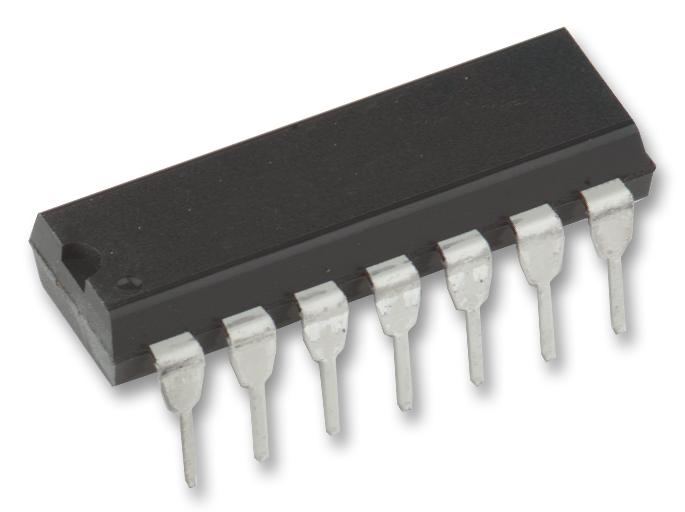

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
