| ₹ 1395.0 includes GST and import duties. | |
| B2B customers can avail ₹ 212.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

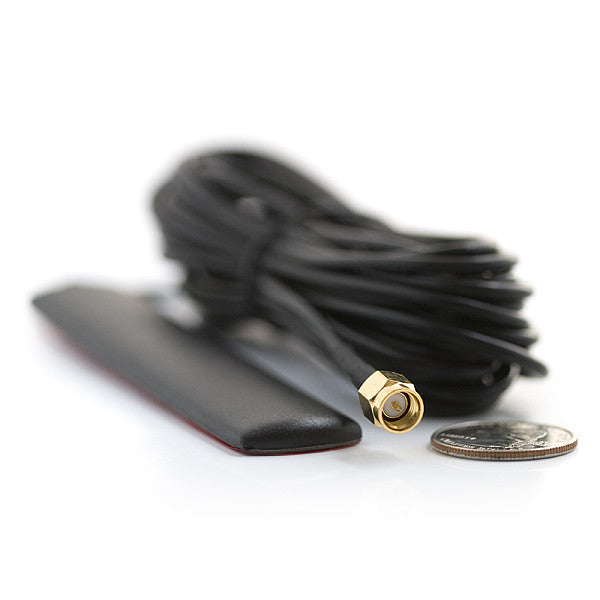

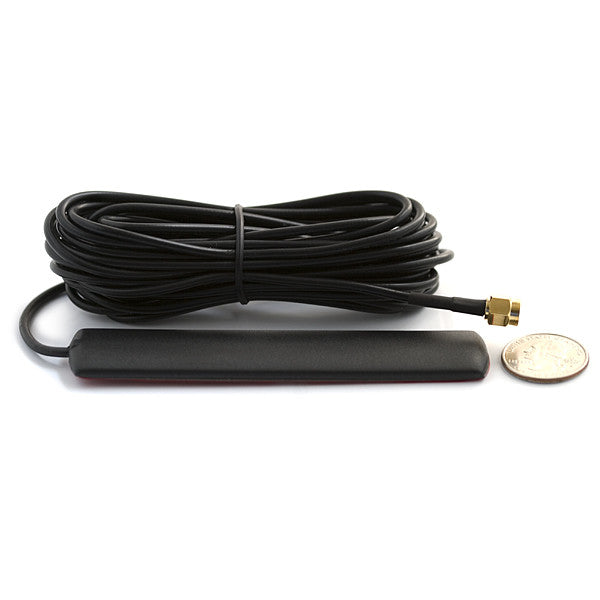

A Quad-band antenna for embedded cellular devices. This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.
Key Specifications:
- Quad-band: 850/900/1800/1900MHz and 2.4GHz
- For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
- Cable with RG174A/U - 3m long
- Connector: SMA
Electrical Properties:
- Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
- Impedance: 50 Ohm nominal
- VSWR: <2.0 : 1
- Gain: 3.5dBi
- Radiation: Omni
- Polarization: Vertical
- Wave: Half Wave Dipole
Mechanical Properties:
- Size: 115x22x4mm
- Connector SMA (Male) standard
- Cable: RG174
- Cable length: 3m
- Over-mold housing: ABS Black
- Mounting: Adhesive backing
- Operation Temperature: -40 to +85C
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1367.1 |
| 3-5 | ₹ 1353.15 |
| 5-10 | ₹ 1325.25 |
| 10+ | ₹ 1297.35 |
Bulk discount will be automatically applied during checkout based on quantity.
