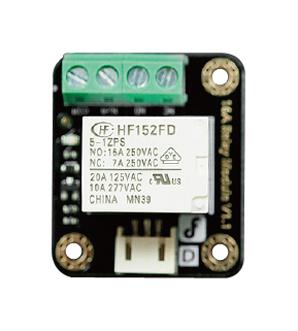

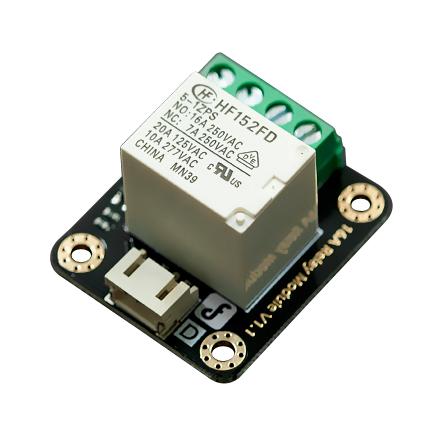

DFR0251 is a Gravity: digital 16A relay module. The 16A relay module can be used in interactive projects. It can also be used to control the lighting, electrical and other equipments. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.
- Contact rating (resistive Load):16A, 277VAC/24VDC
- Maximum switching voltage: 400VAC(NO), Max. switching power: 4700VA
- Operate time (at nominal voltage): 10ms max
- Release time (at nominal voltage): 5ms max
- Single relay board
- Digital Interface
- Control signal: TTL level
- Size is 7 x 29 x 22mm (1.45 x 1.14 x 0.87")
Contents

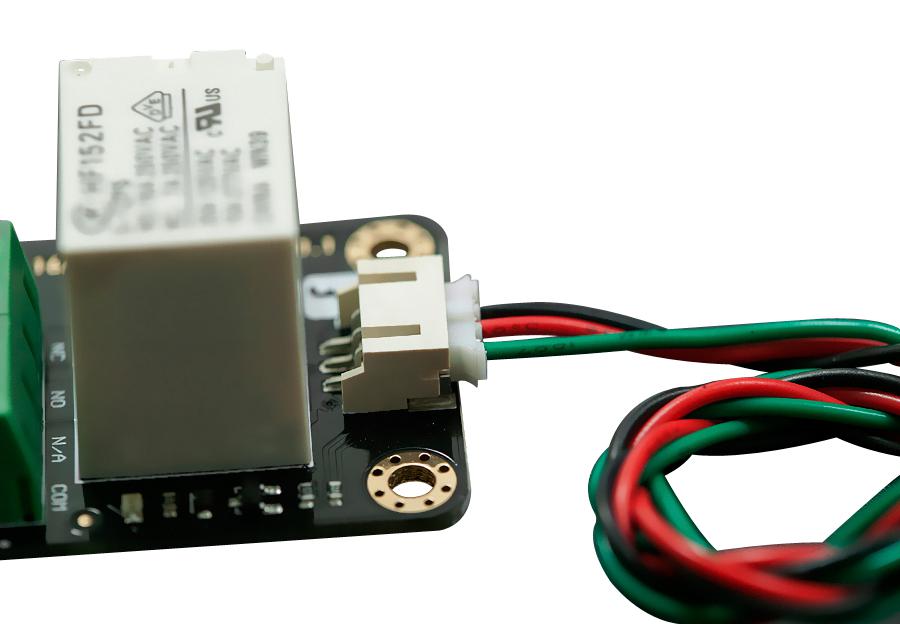

16A relay module x1, Sensor cable x1.
Product details
| Accessory Type |
Digital 16A Relay Module |
| For Use With |
Arduino, Raspberry Pi, ESP32 3.3V / 5V Dev Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0251 |
| Quantity |
Each |
