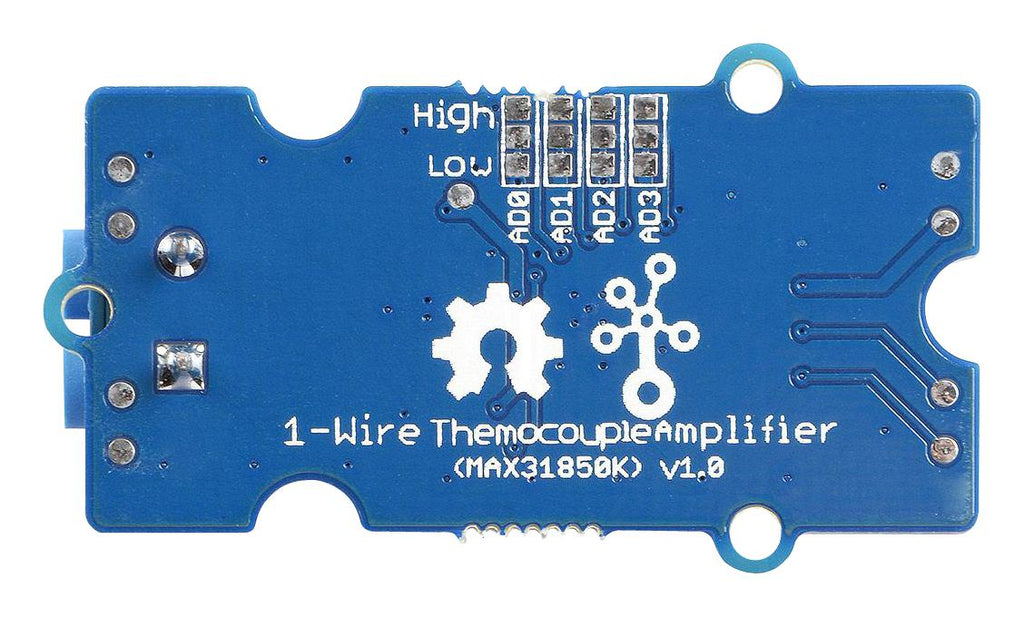

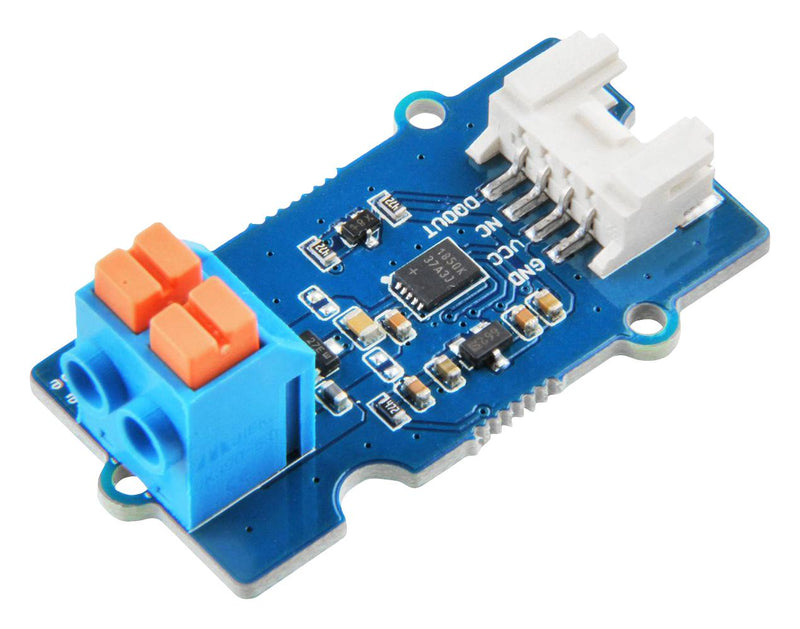

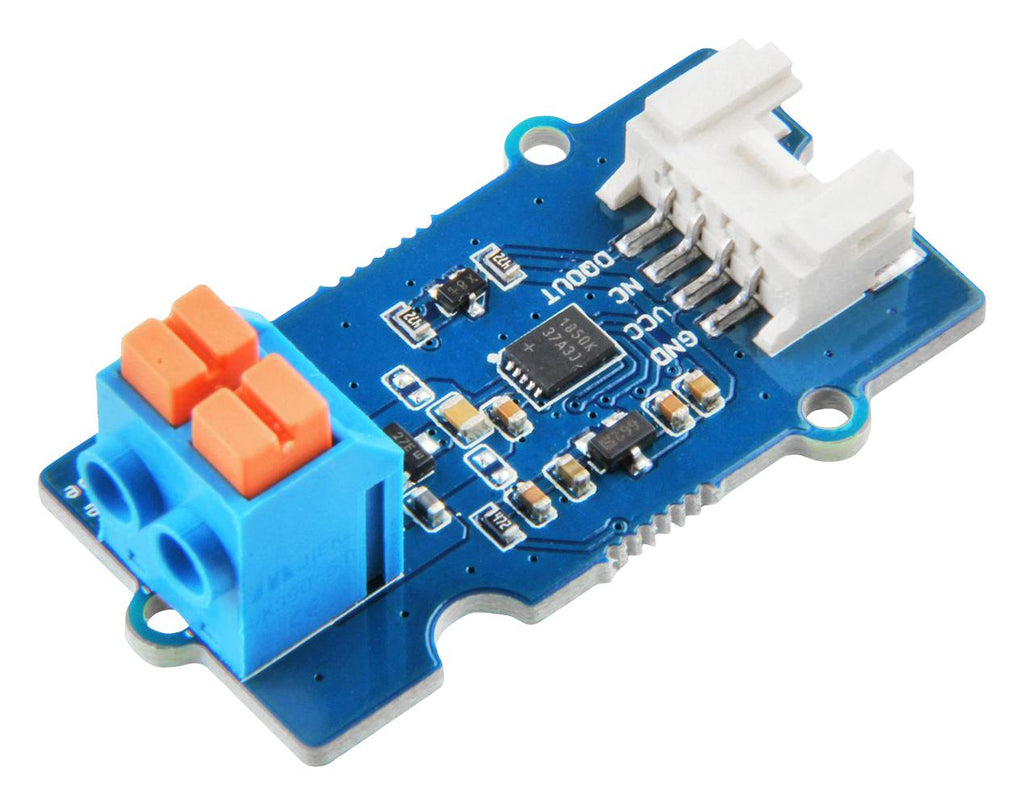

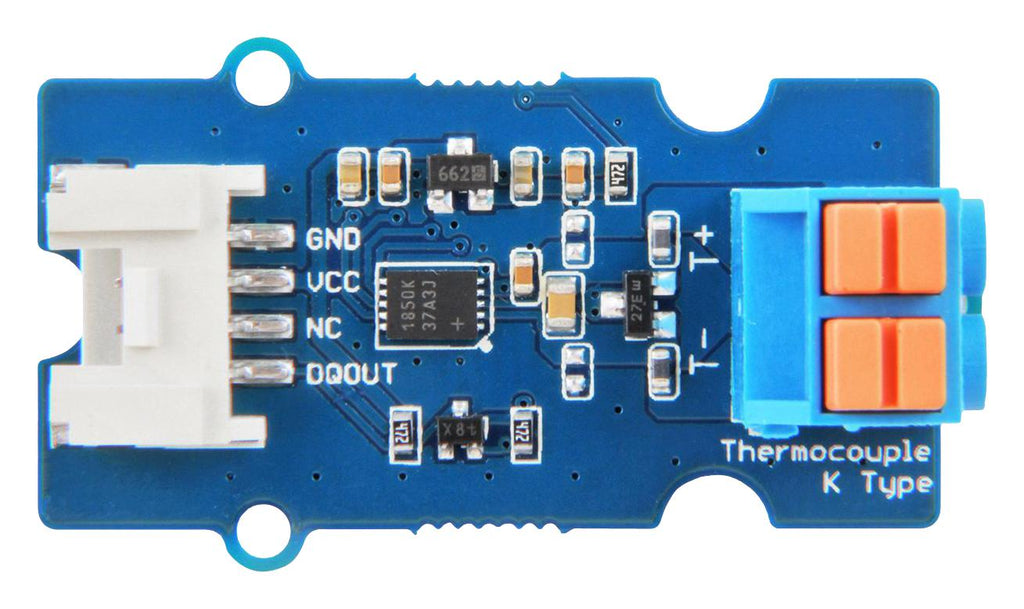

Grove - 1-Wire Thermocouple Amplifier (MAX31850K) is a thermocouple-to-digital converters with 14-bit resolution and cold-junction compensation. This module is designed to be used in conjunction with a k-type thermocouple. The thermocouples have a much larger measurement range than thermistors. For example, this k-type thermocouple on our website has a measurement range of -50°C to +600°C. Typical applications includes medical, appliances, industrial and HVAC(Heating, Ventilation and Air Conditioning).
- Integrated cold-junction compensation
- Wide conversion range: allow readings from -270°C to +1768°C
- 14-bit, 0.25°C resolution
- Will not work with any other kind of thermocouple except K type
- Detects thermocouple shorts to GND or VDD
- Detects open thermocouple
- Working voltage is 3.3V/5V
- Operating temperature range from -40°C to 125°C

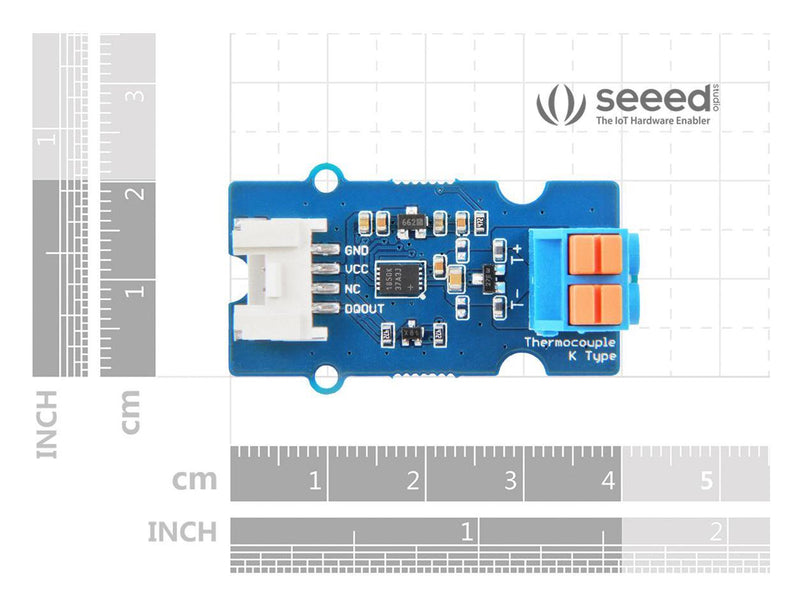

- Dimension is 40mm x20mm x18mm
Contents

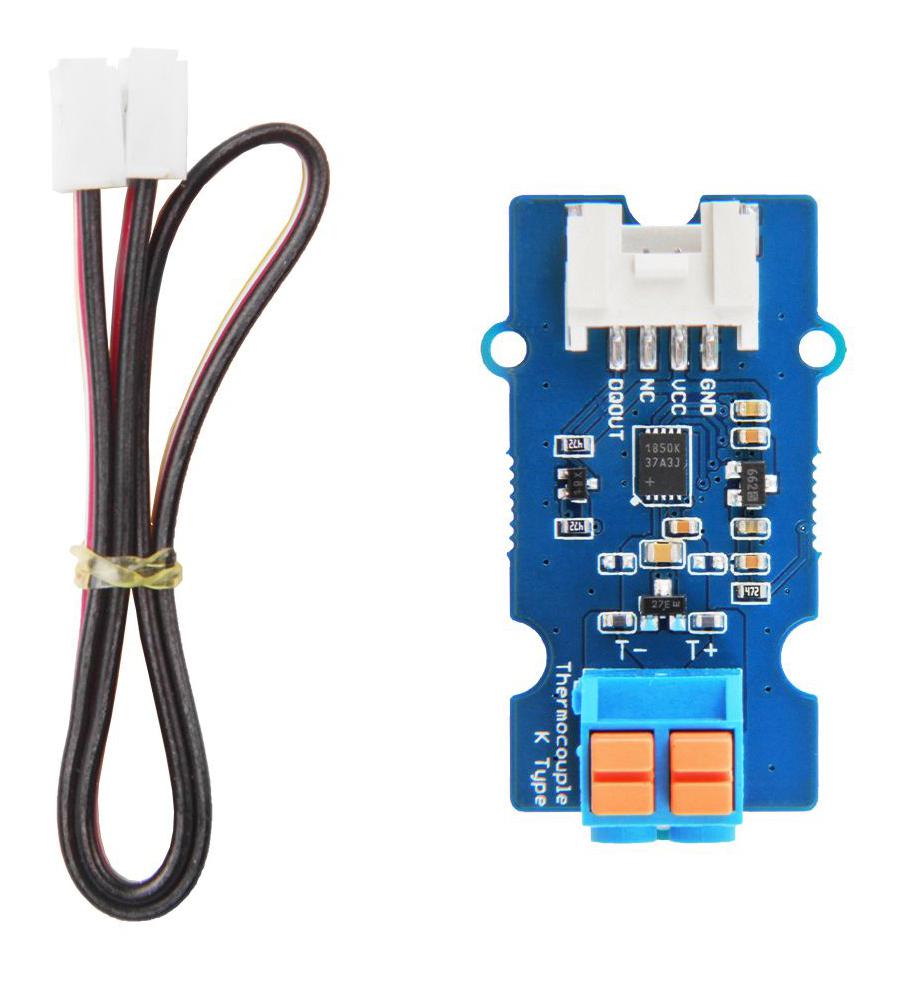

Grove - 1-wire thermocouple amplifier (MAX31850K) x 1, Grove cable x 1.
Product details
| Accessory Type |
Thermocouple Amplifier Board |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
101020555 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
