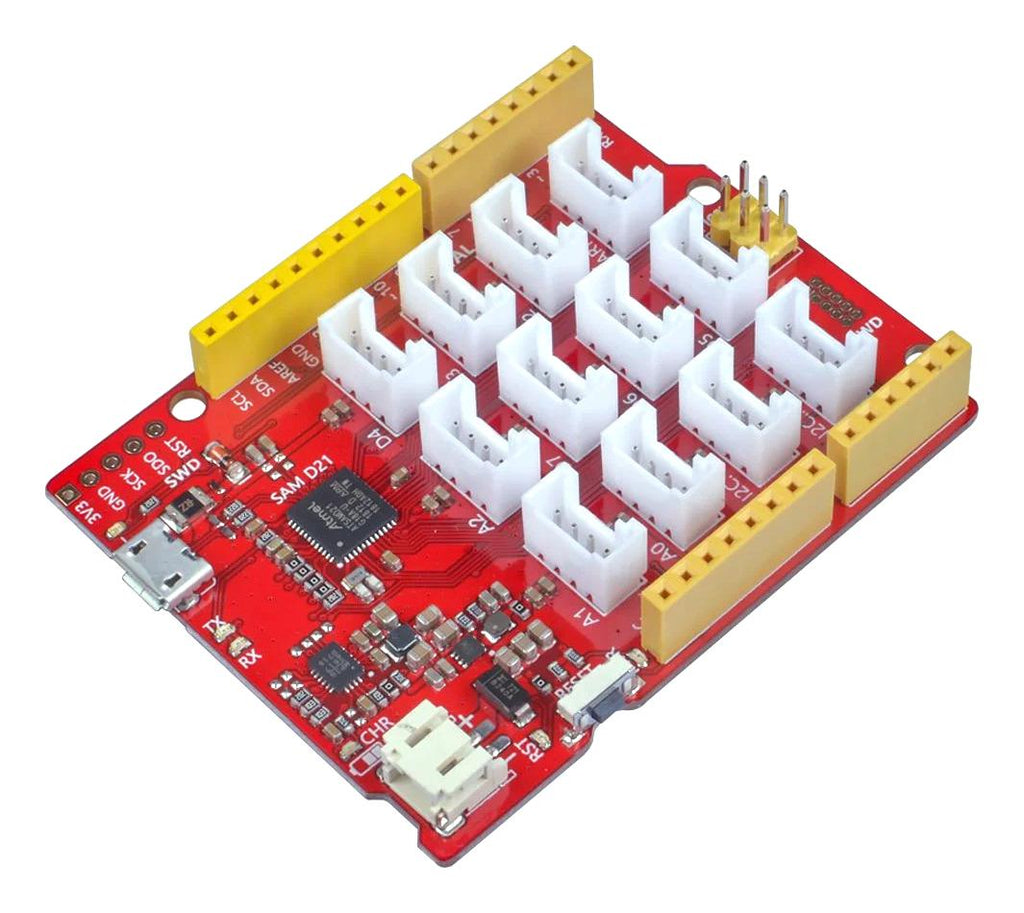

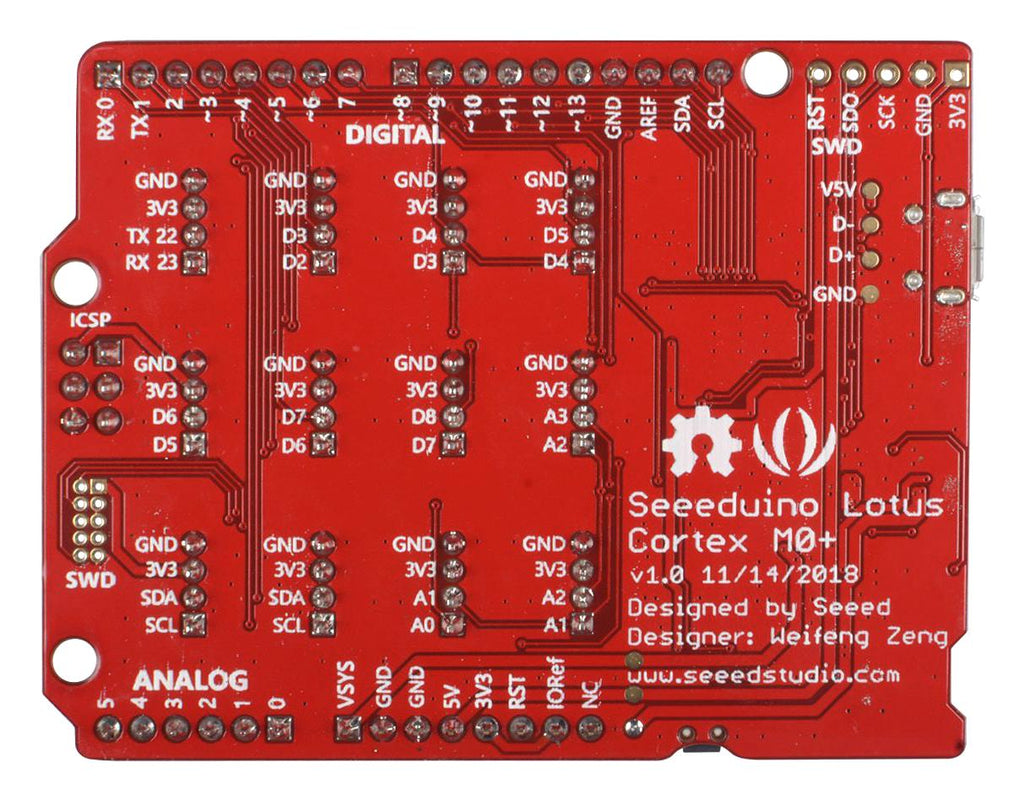

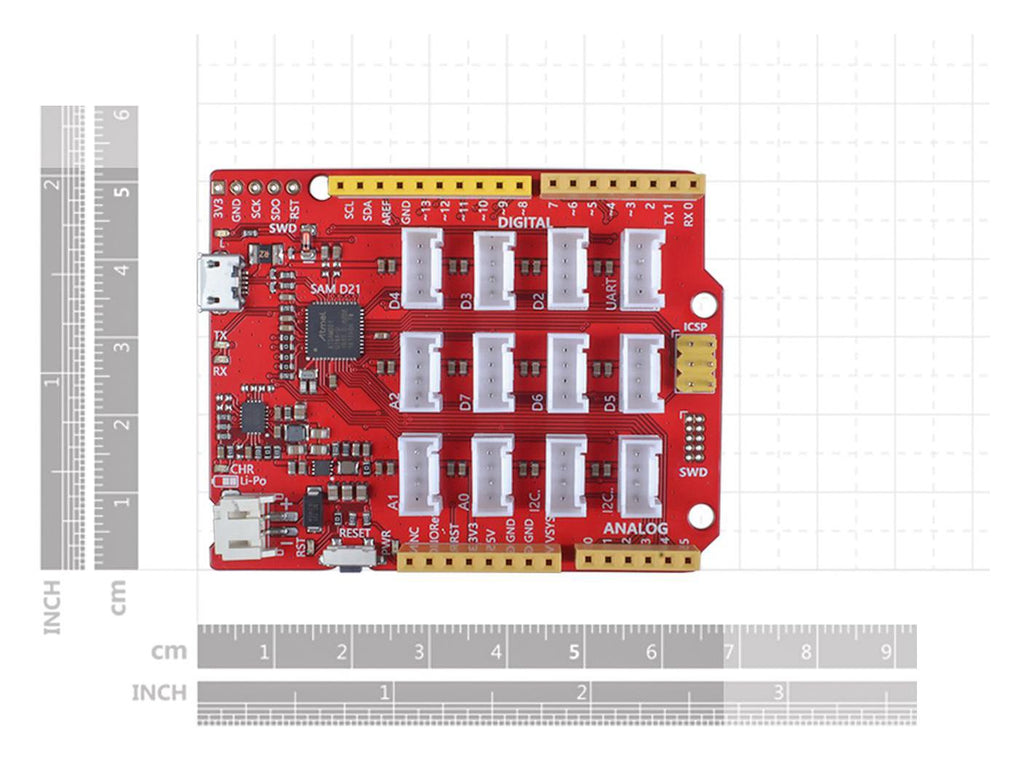

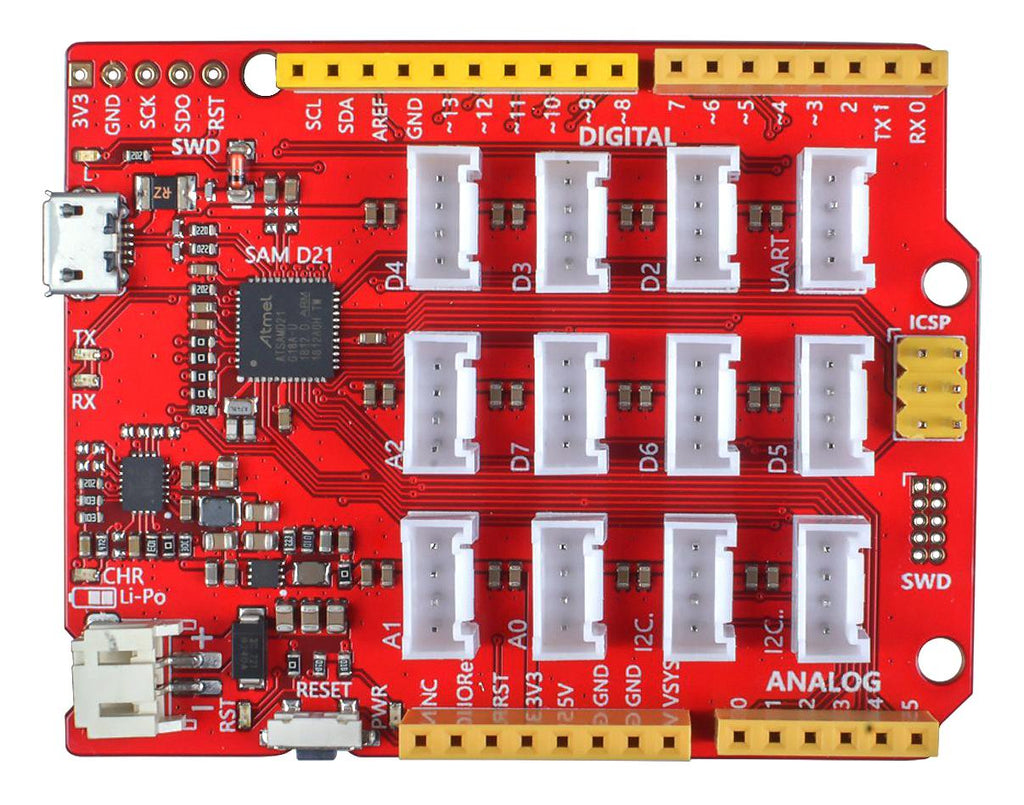

Seeeduino Lotus Cortex-M0+ is a SAM D21 Microcontroller development board. The Atmel® SMART� SAM D21 is a series of low-power microcontrollers using the 32-bit ARM® Cortex®-M0+ processor with 256KB Flash and 32KB of SRAM. Users can consider the Seeeduino Lotus Cortex-M0+ as a combination of Seeeduino and Base Shield. Seeeduino Lotus Cortex-M0+ has 14 digital input/outputs (10 of which support PWM) and 6 analogue input/outputs, 3 Serial Communication Interface, a micro USB connector, a JST2.0 Li-Po connector, an ICSP header, 12 Grove connectors, a reset button. Seeeduino Lotus Cortex-M0+ is an upgraded version of Seeeduino Lotus V1.1, it replaces a more powerful chip, optimizes the circuit layout, and the power supply is more stable. Because this chip supports direct USB level output, there is no need to use a serial port to USB chip, like CP2102N. Therefore, one more hardware serial port is available to the user.
- Compatible with Arduino UNO
- ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21)
- Support power path management
- Support micro-USB or Li-Po battery powered
- 2A maximum charging current
- Suitable for low power design
Product details
| Silicon Manufacturer |
Microchip |
| No. of Bits |
32bit |
| Silicon Family Name |
SAMD21 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-M0+ |
| Silicon Core Number |
ATSAMD21 |
| Kit Contents |
Development Board ATSAMD21 |
| Product Range |
- |
Other details
| Brand |
SEEED STUDIO |
| Part Number |
102010228 |
| Quantity |
Each |
