Texas Instruments SRC4392IPFB Audio Control Sample Rate Converter 1.65V to 3.6V Serial Tqfp 48 Pins -40 °C

The SRC4392IPFB is a 2-channel high-performance asynchronous Sample Rate Converter with a digital audio interface receiver (DIR) and transmitter (DIT), two audio serial ports and flexible distribution logic for interconnection of the function block data and clocks. The DIR and DIT are compatible with the AES3, S/PDIF, IEC 60958 and EIAJ CP-1201 interface standards. The audio serial ports, DIT and SRC may be operated at sampling rates up to 216kHz. The DIR lock range includes sampling rates from 20 to 216kHz. The SRC4392 is configured using on-chip control registers and data buffers, which are accessed through either a 4-wire serial peripheral interface (SPI) port, or a 2-wire Philips I?C bus interface. Status registers provide access to a variety of flag and error bits, which are derived from the various function blocks. An open drain interrupt output pin is provided and is supported by flexible interrupt reporting and mask options via control register settings.

• Automatic detection of the input-to-output sampling ratio
• Excellent jitter attenuation characteristics
• Digital output attenuation and mute functions
• Output word length reduction
• Includes differential line driver and CMOS buffered outputs
• Low jitter recovered clock output
• Four general-purpose digital outputs
• Extensive power-down support
• Green product and no Sb/Br

Applications

Audio, Automotive, Consumer Electronics, Portable Devices

Other details

Brand	TEXAS INSTRUMENTS
Part Number	SRC4392IPFB
Quantity	Each (Supplied on Cut Tape)

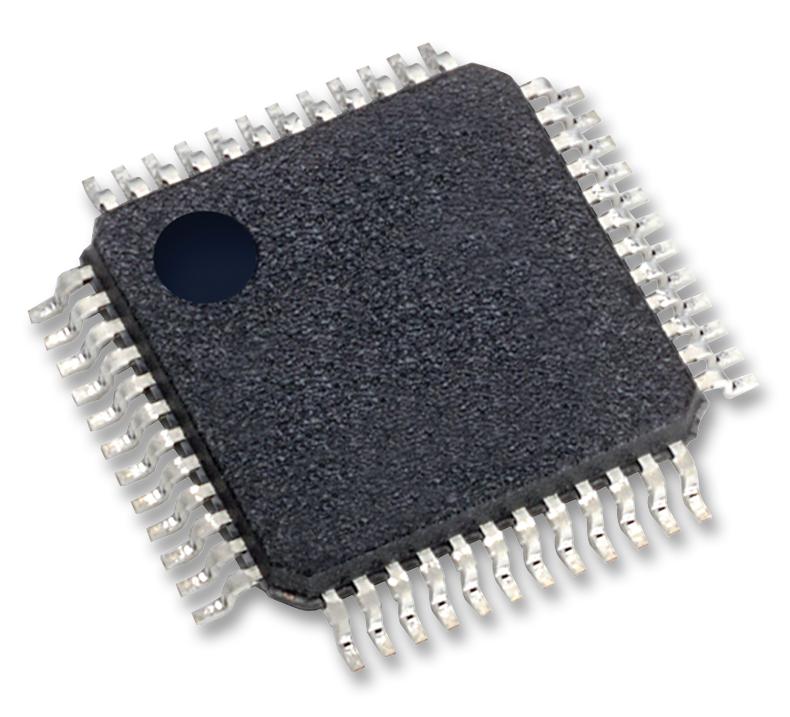

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
