| ₹ 927.13 includes GST and import duties. | |
| B2B customers can avail ₹ 141.39 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

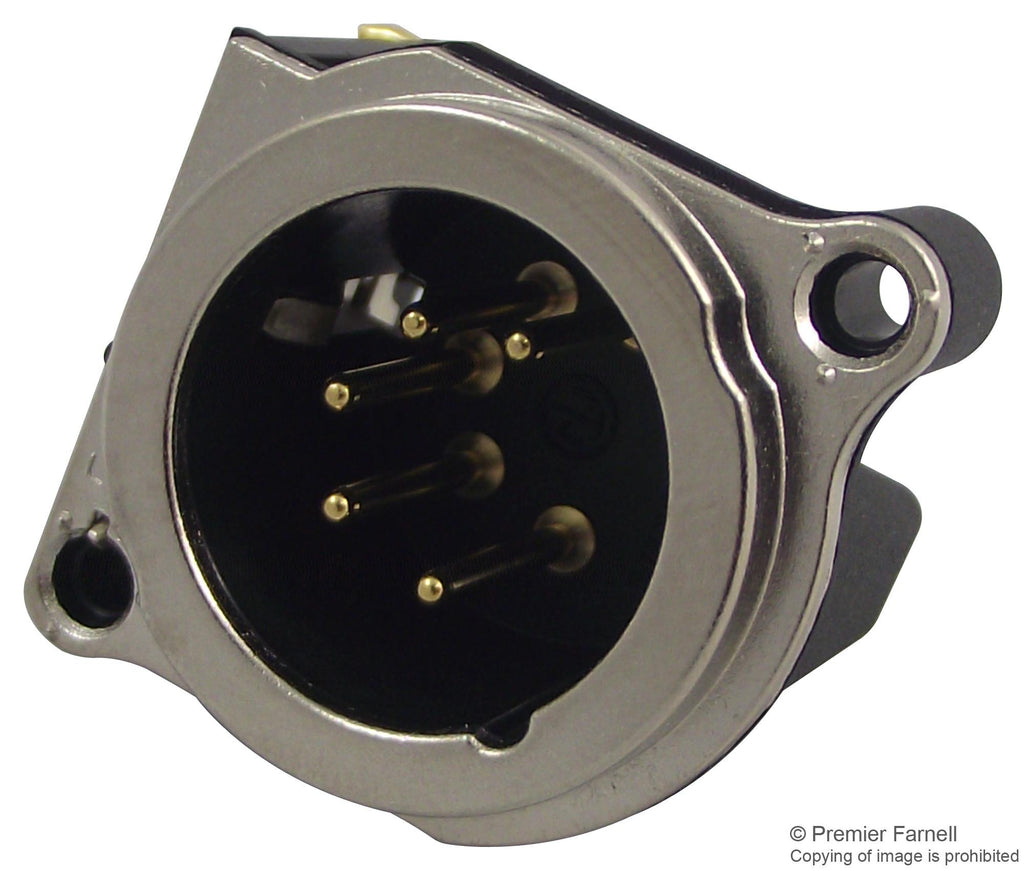

The NC5MBH from Neutrik is a horizontal PCB mount 5 pole male XLR receptacle chassis connector. The metal mounting flange features continuous circumferential ground contact to chassis for best EMC and RF protection. Separate ground contact is provided to mating connector shell and front panel (no connection to pin 1 of connector).
- Smallest size and highest packing density
- Rated voltage is less than 50V and rated current per contact is 3A
- Contact resistance is less than or equal to 5mohm
- Greater than 1000 mating cycles
- UL certified
- Brass contacts with gold plating and polyamide insert material
- Steel latch lock, zinc die-cast ring and nickel flange
- IP 40 protection class and IEC 61076-2-103 compliant
- Flammability rating meets UL94 HB
- Temperature range from -30�C to 80�C
Applications
Audio, Consumer Electronics
Product details
| No. of Contacts | 5Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| Product Range | B Series |
| Connector Body Material | Metal Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC5MBH |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 908.59 |
| 3-5 | ₹ 899.32 |
| 5-10 | ₹ 880.77 |
| 10+ | ₹ 862.23 |
Bulk discount will be automatically applied during checkout based on quantity.
