| ₹ 11737.68 includes GST and import duties. | |
| B2B customers can avail ₹ 1790.0 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

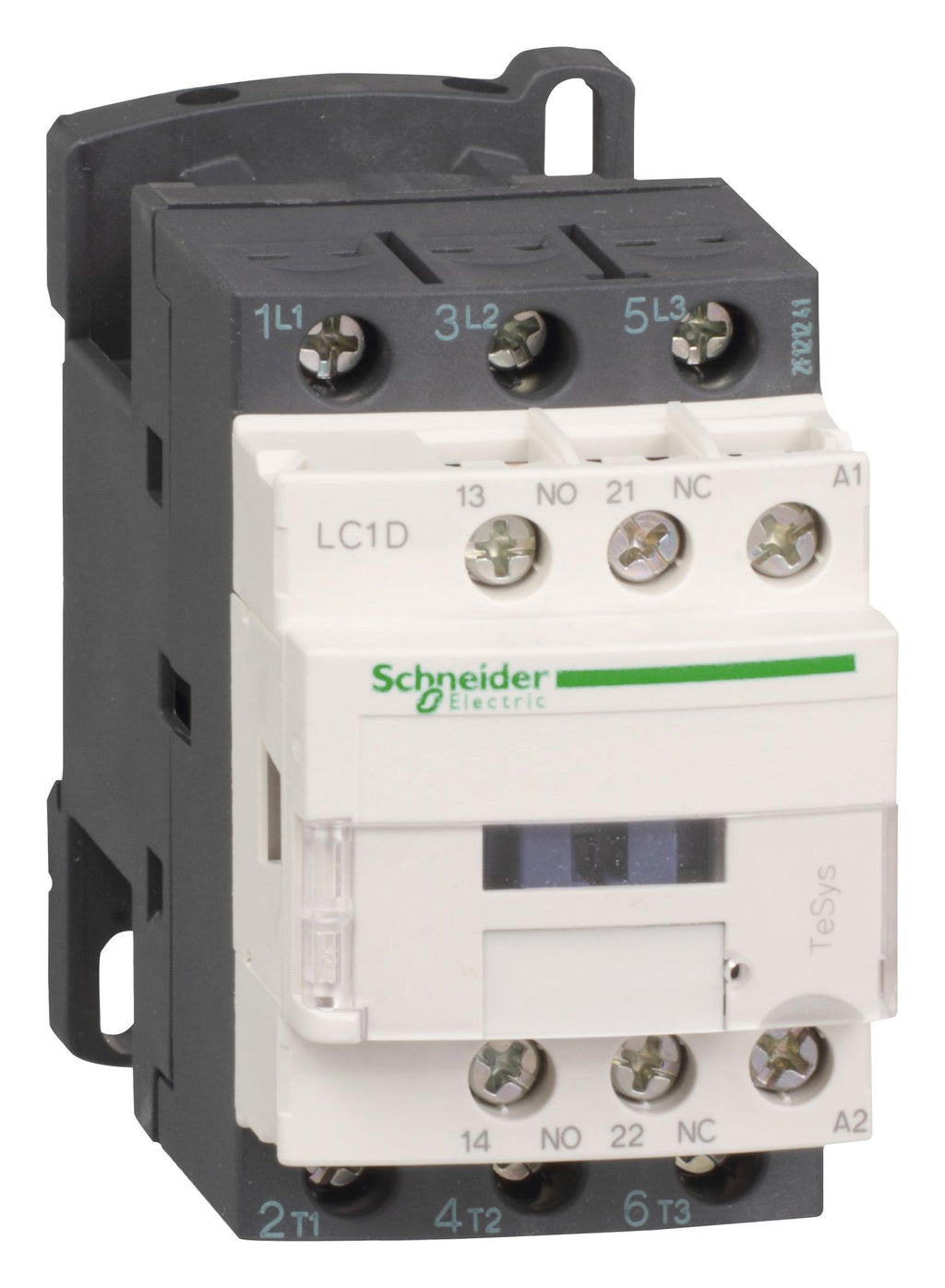

The LC1D25U7 is a TeSys D 3-pole Contactor with 3NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.
- AC-1 and AC-3 utilization category
- Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
- Rated operational current of 40A at <=440VAC (AC-1) & 25A at <=440VAC (AC-3) for power circuit
- 11kW at 415VAC to 440VAC, 50Hz/60Hz Motor power
- 240VAC at 50Hz/60Hz Control circuit voltage
- UL94V-1 Flammability rating
- -5 to 60°C Ambient operating temperature range
- IP2x front face conforming to IEC 60529 standard protection rating
- 3.2W (AC-1) and 1.25W (AC-3) Power dissipation per pole
- Rated breaking capacity of 450A at 440V for power circuit conforming to IEC 60947 standard
Automation & Process Control, Motor Drive & Control, Industrial
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | LC1D25U7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Certificate of Conformity EN | |
| Manufacturer Catalogue EN | |
| Manufacturer Product Page EN | |
| Enhanced Product Overview EN | |
| Handling Instructions EN | |
| Safety Data Sheet B EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11502.93 |
| 3-5 | ₹ 11385.55 |
| 5-10 | ₹ 11150.8 |
| 10+ | ₹ 10916.04 |
Bulk discount will be automatically applied during checkout based on quantity.
