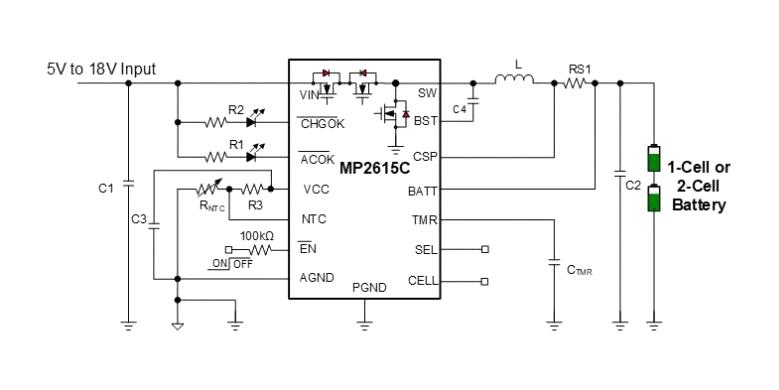

MP2615C is a high-efficiency, switch-mode battery charger suitable for single-cell or dual cell Li-ion or Li-polymer applications. The device is capable of delivering 2.1A of charge current which can be configured via an accurate current-sense resistor across the entire input range. The MP2615C regulates the charge current and full battery voltage using two control loops to achieve high-accuracy constant current (CC) charge and constant voltage (CV) charge. Constant-off-time (COT) control allows the device to operate up to 99% duty cycle when the battery voltage is close to the input voltage. This maintains a relatively high charging current. The battery temperature and charging statuses are always monitored during each charging cycle. Two status monitor output pins are provided to indicate the battery charging status and input power status. The MP2615C is available in a QFN-16 (3mmx3mm) package. Application include smartphones, portable handheld solutions and portable media players.
- 4.75V to 18V operating input voltage
- Up to 99% duty cycle operation
- ±0.75% full battery voltage accuracy
- 4.1V/cell and 4.2V/cell selection for full battery voltage
- Fully integrated power switches, internal loop compensation, reverse blocking protection
- No external reverse blocking diode required
- Preconditioning for fully depleted battery
- Charging operation indicator, configurable safety timer
- Thermal shutdown protection, cycle-by-cycle overcurrent protection
- Battery temperature monitoring and protection
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2615CGQ-P |
| Quantity |
|
| Technical Data Sheet EN |
 |

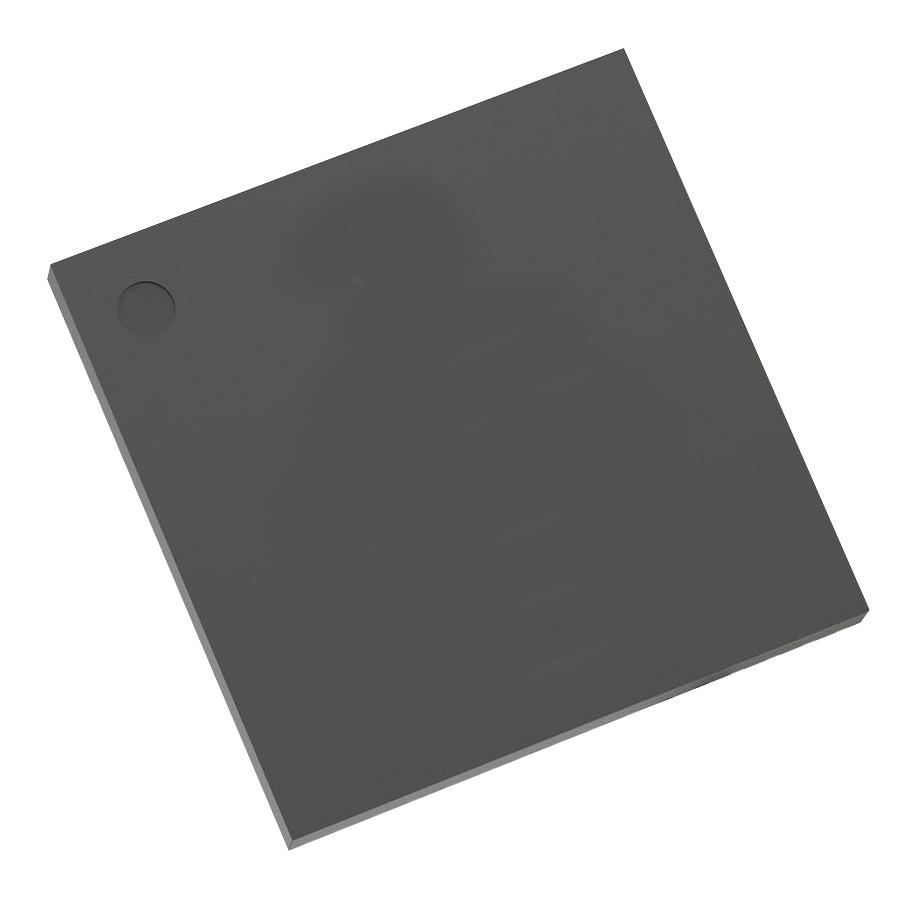

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
