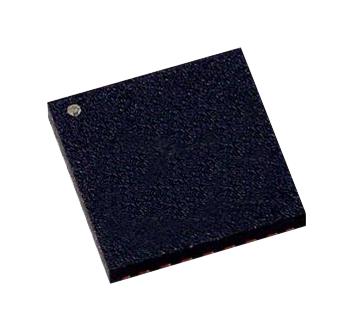

- Highly integrated switch-mode battery charger with system power path management in QFN-26 package
- Power management function, integrated input current limit and input voltage regulation
- Trickle charge function, programmable timer back-up protection
- Selectable 4.2V/4.35V/4.45V charge voltage with 0.5% accuracy
- 4-LED driver for battery fuel gauge indication
- Automatic turn-off at light load, input source detection
- Output source signalling, independent torch-light control
- Negative temperature coefficient pin (NTC) for battery temperature monitoring
- Thermal regulation and thermal shutdown
- Integrated overvoltage protection and overcurrent protection for pass-through path
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP2632BGR-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
