Description
bebob COCO-VENICE Overview

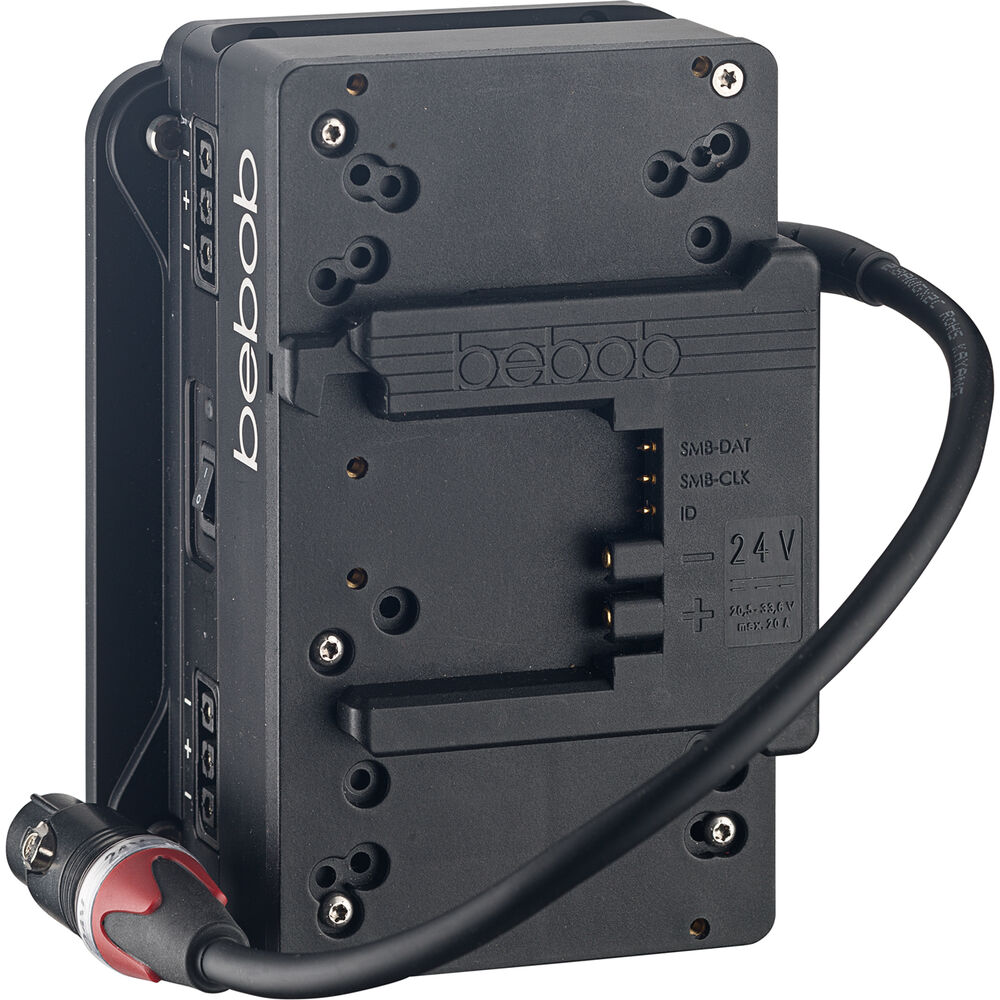

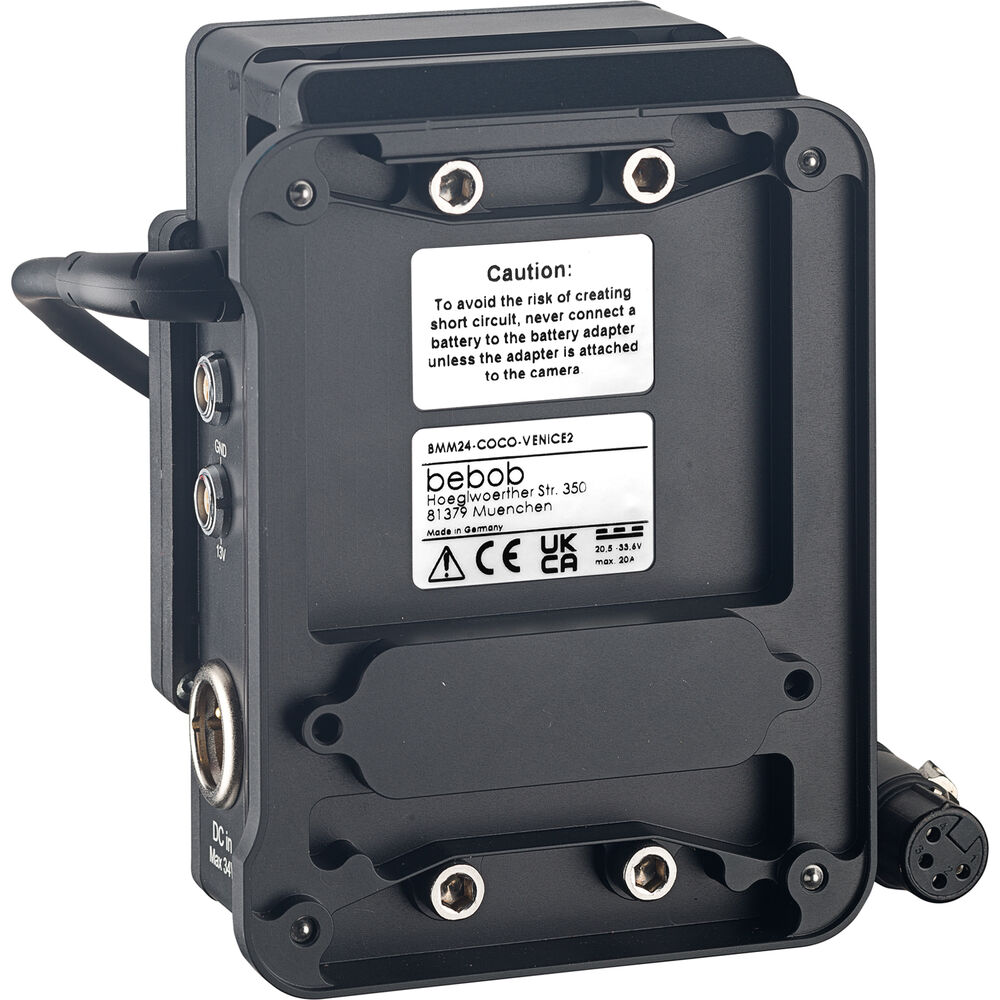

Use this B-Mount Adapter from bebob to power a Sony VENICE or VENICE 2 camera using a bebob B-mount battery and maintain hot-swapping capability. The mount supports failover between mains and battery power to maintain the safety of your equipment using the 4-pin XLR output cable and 3-pin input. The adapter mounts onto the camera's V-mount, and it supports a total 20A continuous draw and 12/24V unregulated output.
On the side of the plate are two Twist D-Tap outputs that support up to 14.4V/2.5A and two USB-A outputs that support 5V/1A. Around the adapter, there are also three 5-13V/1A Hirose outputs, three 12V/2A 2-pin LEMO-type outputs, and one 3-pin Fischer power output to power a variety of accessories.
In the Box
- bebob B-Mount Adapter for Sony VENICE 1 and 2
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
bebob COCO-VENICESpecs
| Maximum Load |
20 A (Peak)
|
| Power Output |
D-Tap: 14 VDC at 2.5 A
USB-A: 5 VDC at 1 A Hirose 4-Pin: 13 VDC at 1 A Hirose 4-Pin: 8.4 VDC at 1 A Hirose 4-Pin: 5 VDC at 1 A LEMO 2-Pin: 12 VDC at 2 A Fischer 3-Pin: 28.8 to 33.6 VDC XLR 4-Pin Male: 34 VDC |
| Plate Front / Battery Mount |
B-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
B-Mount: 24 VDC
|
| Maximum Load |
20 A (Peak)
|
| Power Output |
D-Tap: 14 VDC at 2.5 A
USB-A: 5 VDC at 1 A Hirose 4-Pin: 13 VDC at 1 A Hirose 4-Pin: 8.4 VDC at 1 A Hirose 4-Pin: 5 VDC at 1 A LEMO 2-Pin: 12 VDC at 2 A Fischer 3-Pin: 28.8 to 33.6 VDC XLR 4-Pin Male: 34 VDC |
| Inputs/Outputs |
2x D-Tap
2x USB-A 3x Hirose 4-Pin 3x LEMO 2-Pin Female 1x XLR 3-Pin Female 1x XLR 4-Pin Male |
| Plate Front / Battery Mount |
B-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.7 x 4.6 x 2.9" / 144 x 117 x 72.5 mm
|
| Weight |
27.7 oz / 785 g
|
