Description
Core SWX CXAM-FX6 Overview

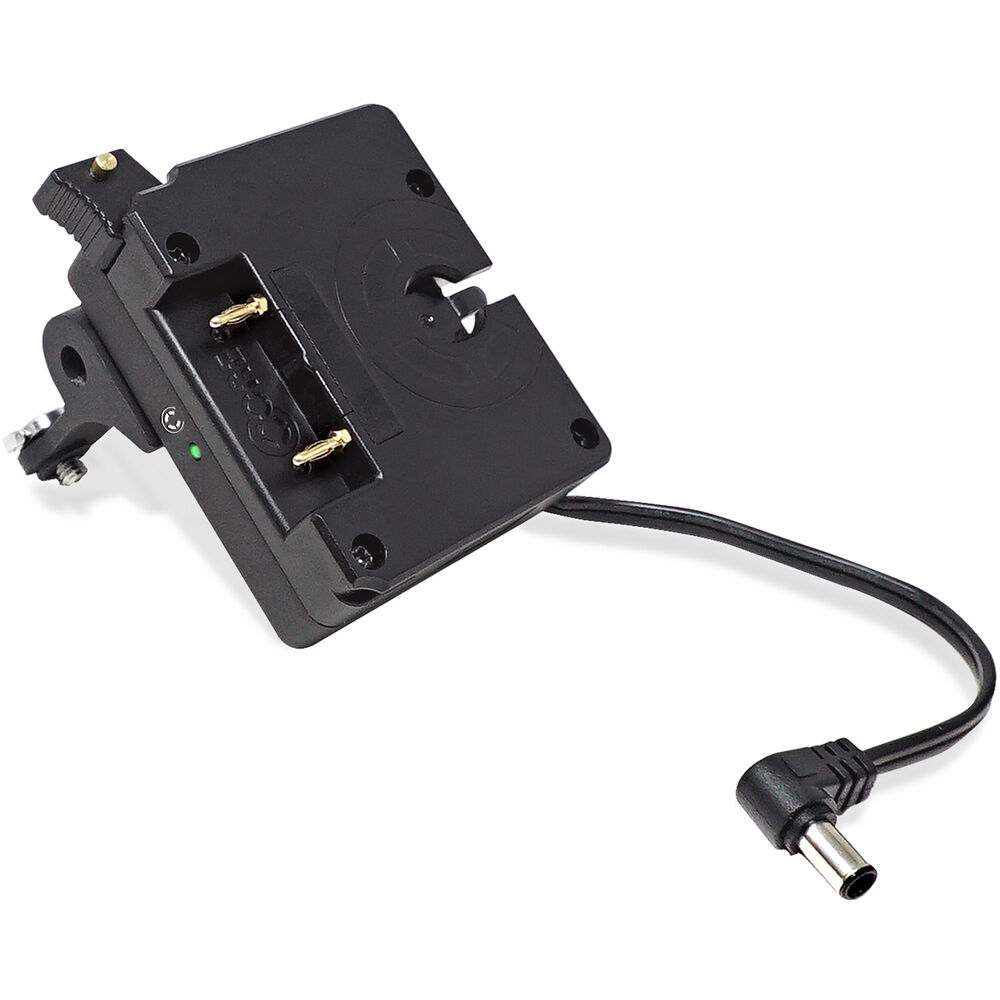

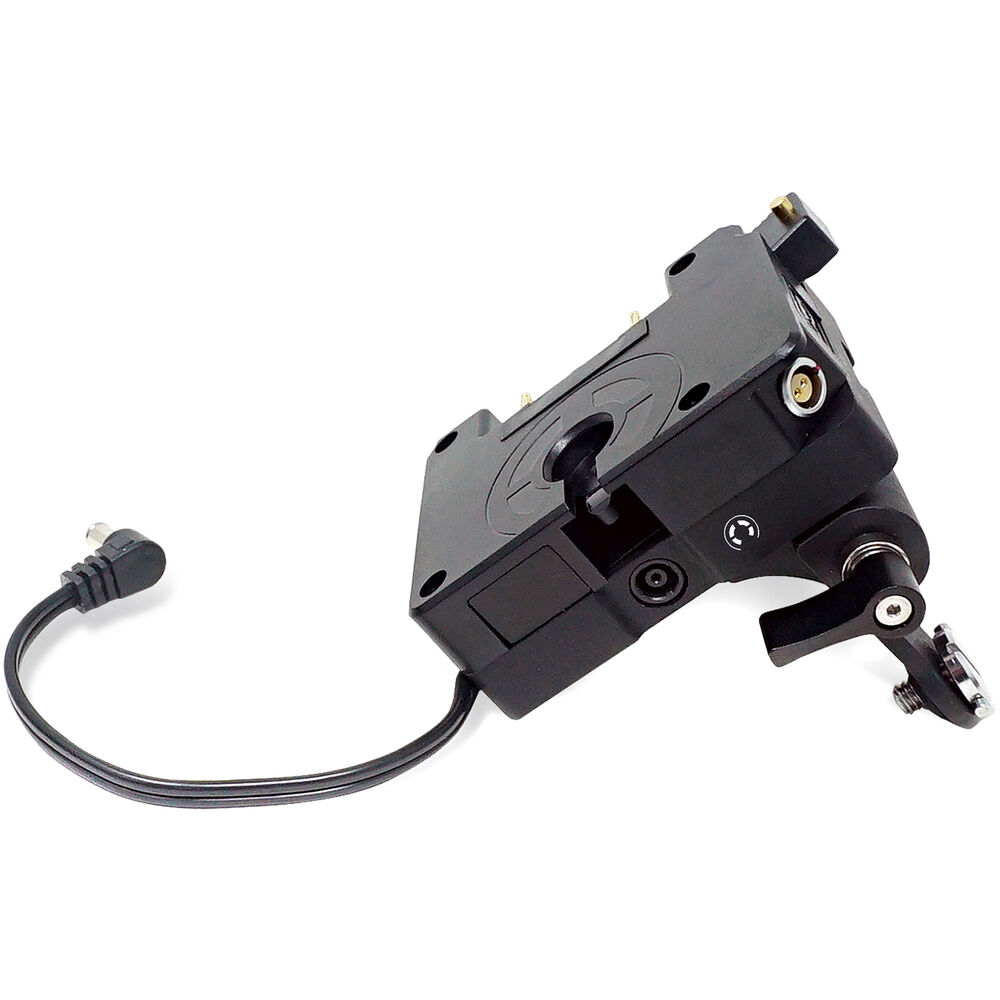

Add a professional, high-capacity battery plate to power your Sony FX6 rig and accessories with this Articulating Gold Mount Battery Plate from Core SWX. The battery plate attaches to the rear of the camera and supports a Gold mount battery while leaving access to the camera's standard battery compartment. The camera is powered using the DC barrel output cable and will fail over to the camera battery if disconnected or depleted.
With the camera's BP-U battery in place, hot swapping is supported. The camera's original power supply can also be plugged into the plate to enable hot swapping between AC and DC power. The plate features one unregulated 11 to 17 VDC D-Tap output and one 5V USB output for powering accessories. Once the plate is mounted onto the camera, the battery plate position can be adjusted by tilting the hinge. The assembly closely matches the rear profile of the camera to allow it to efficiently fit in a camera case.
Gold mount battery
In the Box
- Core SWX Articulating Gold Mount Battery Plate for Sony PXW-FX6
- Mounting Hardware Kit
Core SWX CXAM-FX6 Specs
| Power Input | DC Jack: 11.9 to 16.8 VDC |
| Power Output | DC Jack: 11.9 to 16.8 VDC D-Tap: 11.9 to 17 VDC USB Type-A: 5 VDC |
| Camera Power Method | Connector |
| Inputs/Outputs | 1 x D-Tap 1 x USB-A 1 x Barrel Connector 1 x DC Jack 1 x Unspecified USB |
| Plate Front / Battery Mount | Gold Mount |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Indicator | LED |
| Dimensions | 4.6 x 2.8 x 1.6" / 11.7 x 7.1 x 4.1 cm |
| Weight | 9.6 oz / 272 g |
| Package Weight | 0.81 lb |
| Box Dimensions (LxWxH) | 6.7 x 5.6 x 3.6" |
