Description
- Powers Camera & Multiple Accessories
- LEMO Output to Camera via Optional Cable
- 2-Pin LEMO Output
- 3-Pin LEMO Output
- 4-Pin LEMO Output
- 2x D-Tap Outputs
- USB Port
- Built-In Battery Backup, 200W for 5 Min
- 2-Pin AMP Connector for ENG Cameras
- Cheese Plate Included

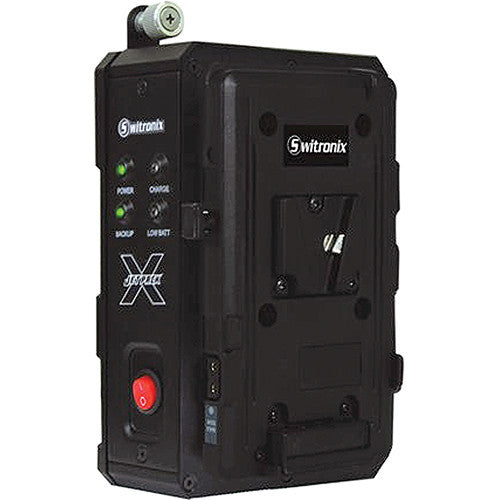

The Core SWX JetPack X V-Mount Base enables you to power multiple accessories along with your camera, featuring three LEMO outputs (2-pin, 3-pin, 4-pin), two D-tap outputs, and a USB port. It allows you to connect to most cameras by connecting an optional JetPack cable of your choice into one of the LEMO outputs. An 11-17VDC 6-pin LEMO input is also available for connecting AC power instead of a battery via an adapter/converter.
The JetPack X has all the features of the original JetPack but adds a built-in battery backup capable of supporting up to 200W in total load for 5 minutes when you swap batteries. It also adds a 2-pin AMP connector for plugging directly into ENG cameras.

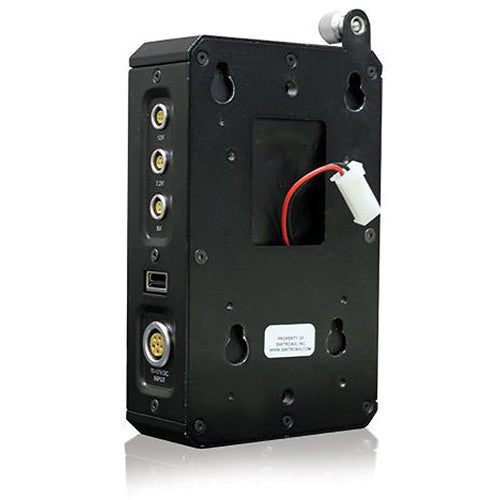

Three 1/4"-20 threads are available on the bottom, two of them spaced 18mm apart for optional rod clamps, and a cheese plate with 1/4"-20 threads is included for attaching on a rig. You can also use an optional X-Mod plate, which can attach the JetPack X to any Gold-Mount or V-mount hole pattern.
- Key Features
-
- Lets you power multiple accessories along with your camera
- Can connect to most cameras using optional JetPack cable of your choice
- Built-in battery backup supporting up to 200W for 5 minutes when you swap batteries
- 2-pin AMP connector for plugging directly into ENG camera
- 11-17VDC 6-pin LEMO (2B) power input
- 1/4"-20 mounting threads on the bottom
- Cheese plate with 1/4"-20 threads included

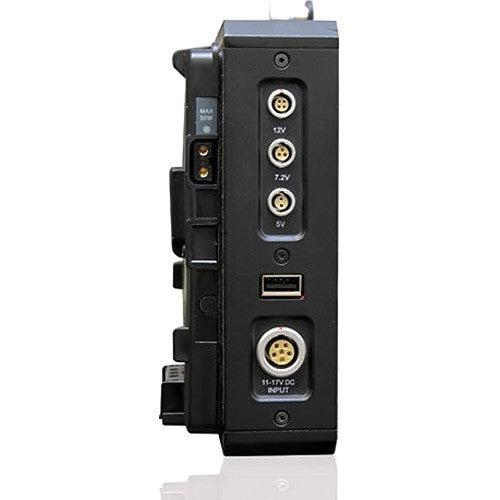

- Outputs
-
- 2-pin LEMO (0B), 5V, 3A
- 3-pin LEMO (0B), 7.2V, 3A
- 4-pin LEMO (0B), 12V, 3A
- 2x D-tap, 11-17VDC, unregulated
- USB, 5V, 1A
- Cheese Plate with 1/4"-20 Threads
- 1-Year Limited Warranty
| Outputs | 2-pin LEMO (0B), 5 V, 3 A 3-pin LEMO (0B), 7.2 V, 3 A 4-pin LEMO (0B), 12 V, 3 A 2x D-tap, 11-17 VDC, unregulated USB, 5 V, 1 A 2-pin Amp connector for direct connection to ENG cameras. |
| Power Input | 11-17 VDC 6-pin LEMO (2B) |
| Mount Type | 3x 1/4"-20 threads, M3 hole pattern |
| Battery Backup | Supports 200 W loads for 5 minutes |
| Material | Aluminum |
| Dimensions | 6.3 x 4 x 2.2" (16 x 10.2 x 5.6 cm) |
| Weight | 1.9 lb (.86 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.0 lb |
| Box Dimensions (LxWxH) | 8.268 x 6.929 x 4.173" |
