Description
DigitalFoto Solution Limited DF-VG9 Overview

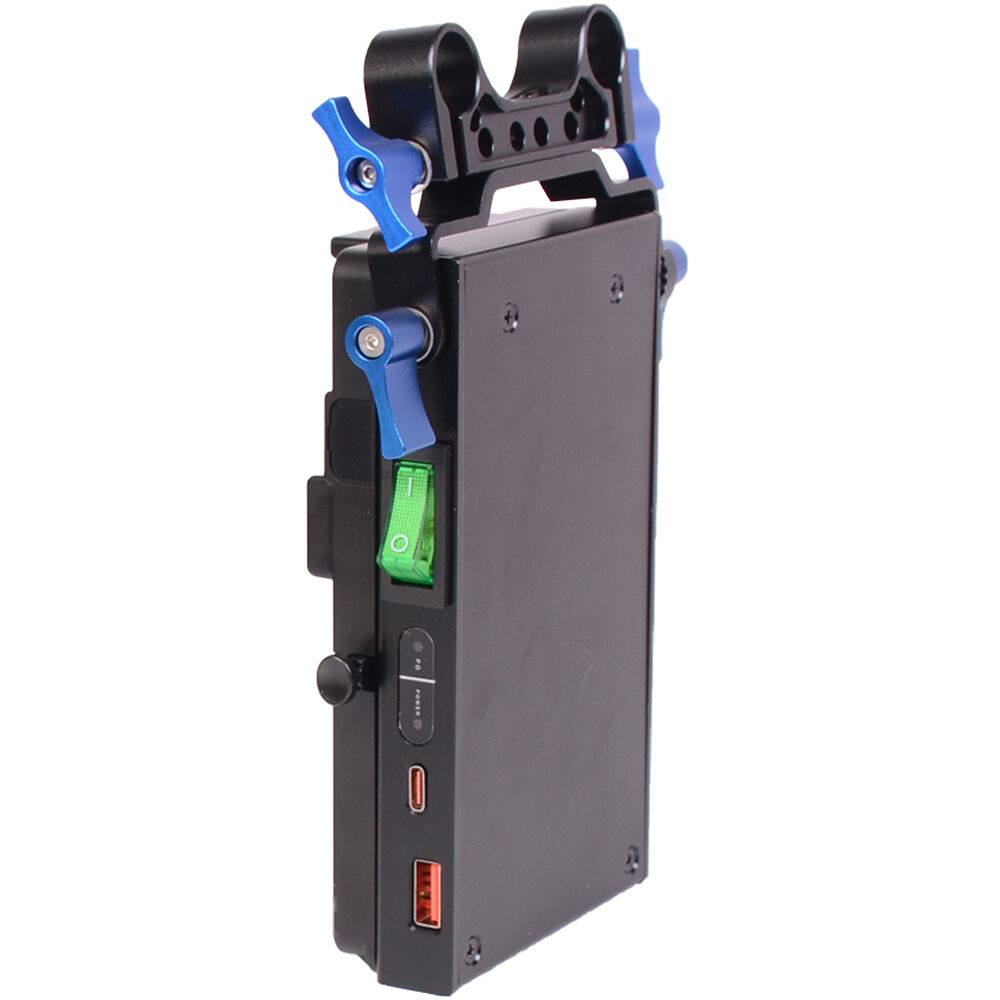

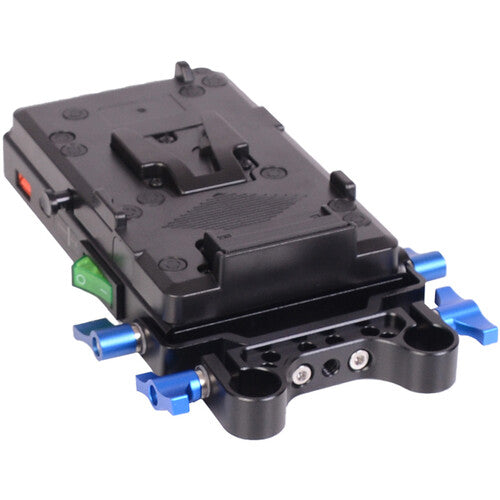

Power your camera and a variety of accessories from a single high-capacity V-mount battery with this V-Mount Battery Plate with 15mm LWS Rod Clamp from DigitalFoto. The battery plate provides a slot for a single V-mount battery and multiple power outputs to power a camera and accessories. The attached 15mm LWS rod clamp allows you to mount and release the plate quickly from standard, separately available 15mm LWS rods using locking levers.

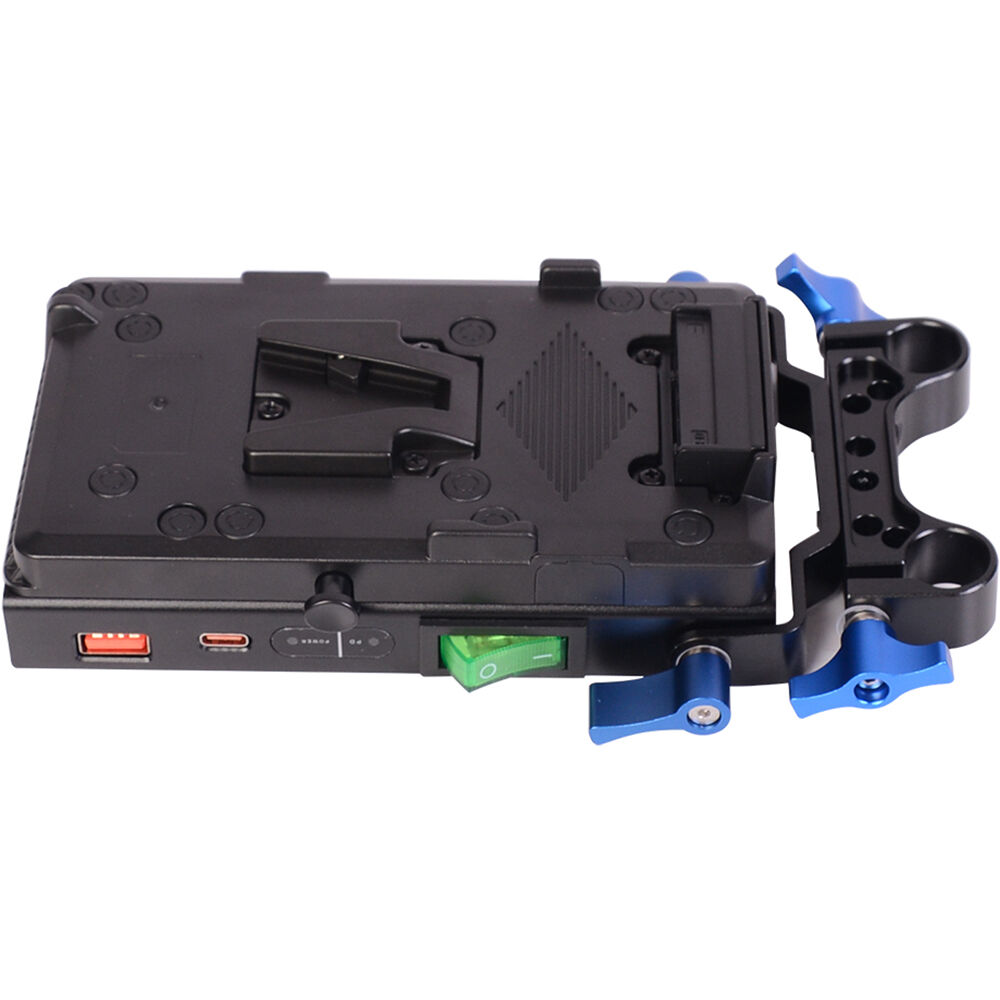

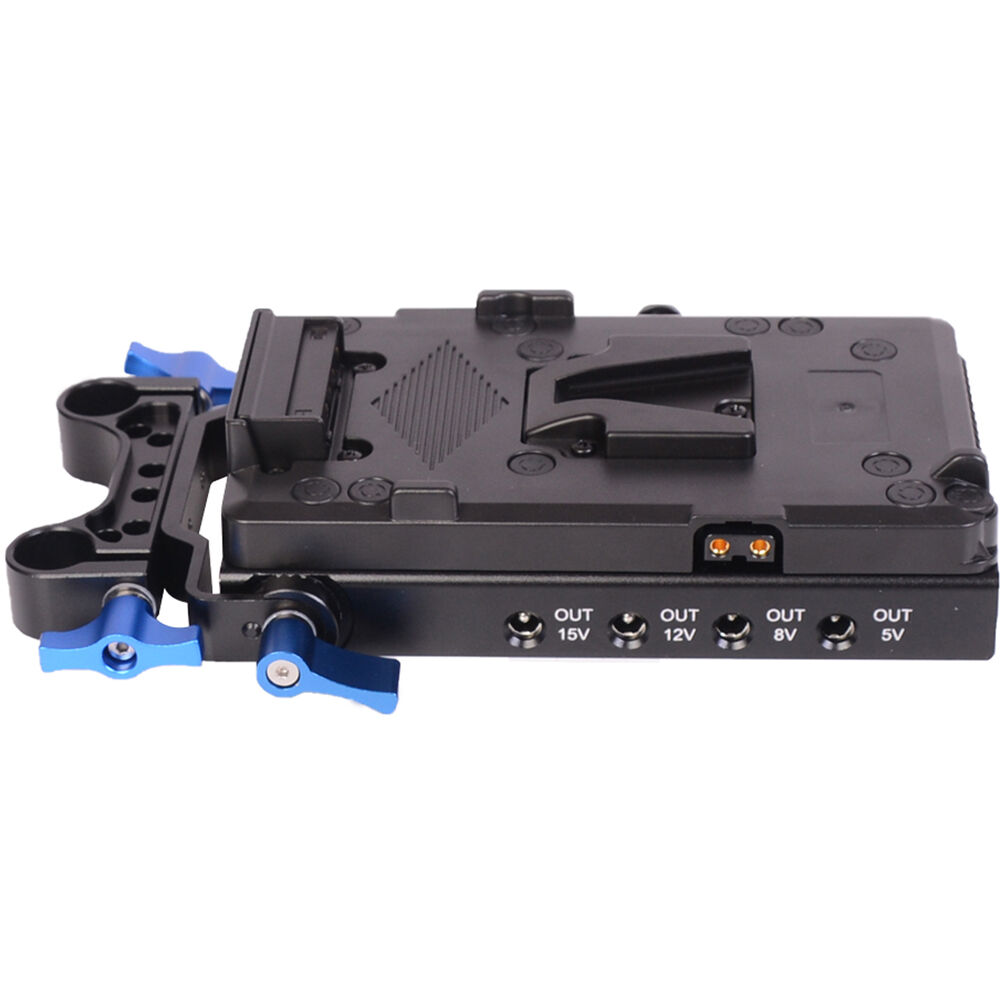

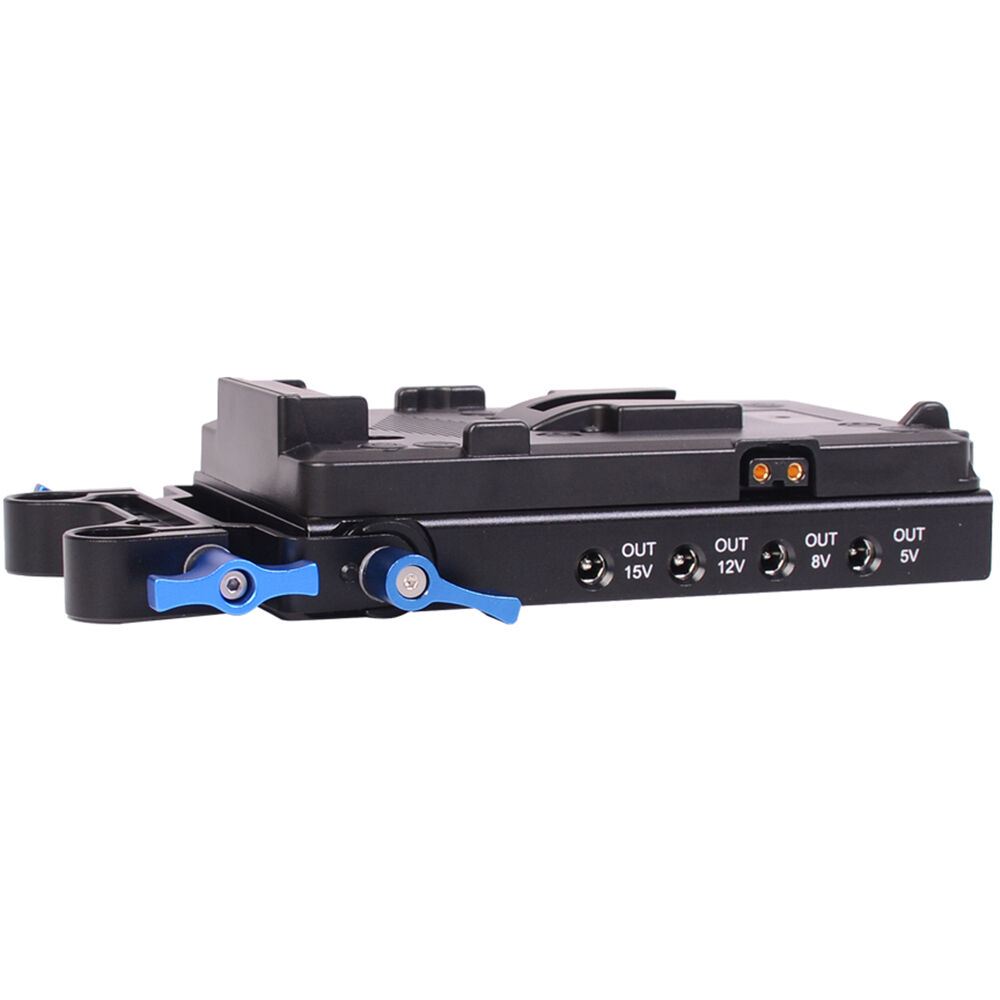

On the sides, the plate provides USB Type-A and USB Type-C ports for powering accessories, and the Type-C port can also be used to charge the mounted battery using QC or PD fast charging. There are also 5, 8, 12, and 15 VDC 2.5mm barrel ports and a D-Tap output on the other side to power additional accessories. The plate also features a power button on the side, so you can quickly cut the power from the battery.
Standard 15mm LWS rods

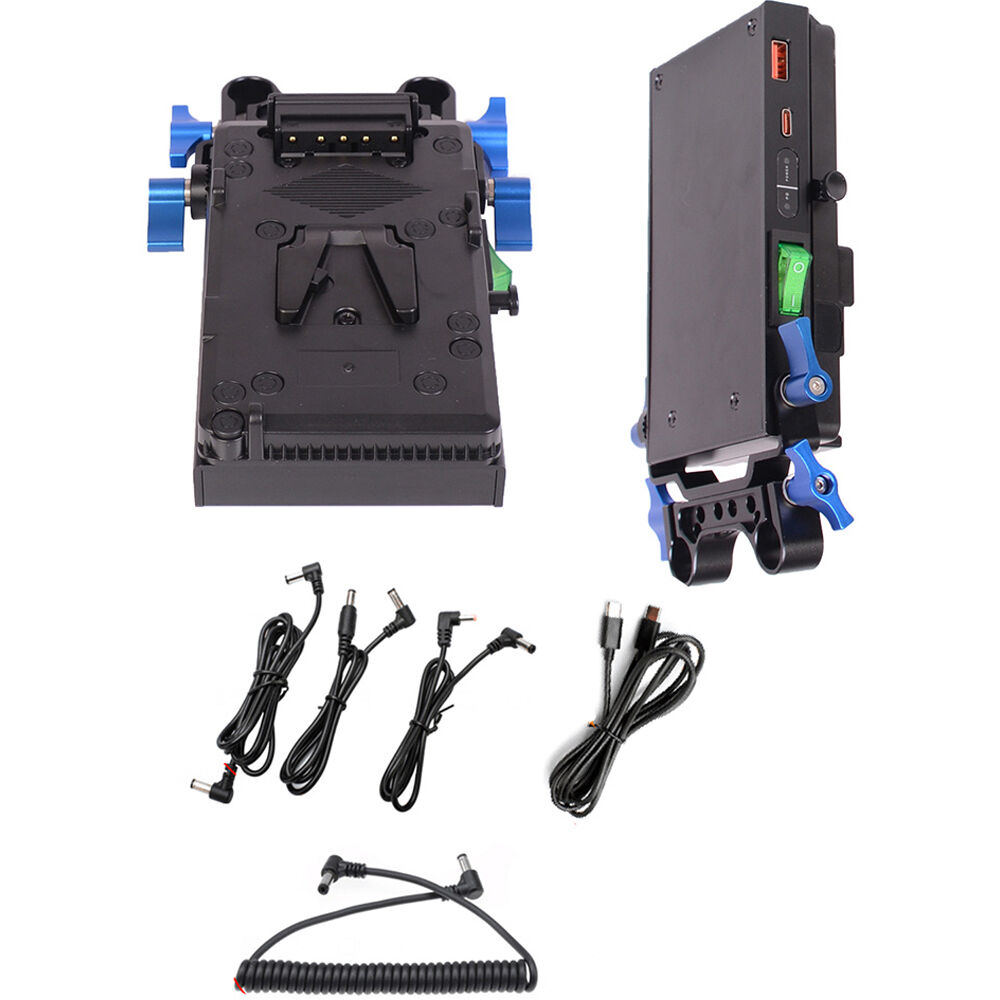

In the Box
- DigitalFoto Solution Limited V-Mount Battery Plate with 15mm LWS Rod Clamp
- USB Type-C Cable
- 2.5mm Coiled Cable
- 2.5mm Straight Cable with Right-Angle Connector (3.9')
- 2.5mm Straight Cable with Right-Angle Connector (2')
- 2.1mm Straight Cable (2')
- Limited 90-Day Manufacturer Warranty
DigitalFoto Solution Limited DF-VG9 Specs
| Maximum Load |
24 W
|
| Power Output |
USB Type-A: 5 to 12 VDC
USB Type-C: 5 to 20 VDC DC Jack: 15 VDC at 5 A DC Jack: 12 VDC at 3 A DC Jack: 8 VDC at 3 A DC Jack: 5 VDC at 3 A D-Tap: VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Power Input |
USB Type-C: 5 to 20 VDC
V-Mount: 12.8 to 16.8 VDC |
| Maximum Load |
24 W
|
| Power Output |
USB Type-A: 5 to 12 VDC
USB Type-C: 5 to 20 VDC DC Jack: 15 VDC at 5 A DC Jack: 12 VDC at 3 A DC Jack: 8 VDC at 3 A DC Jack: 5 VDC at 3 A D-Tap: VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1 x USB-A
1 x USB-C 4 x DC Jack 1 x D-Tap |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
15 mm Rod Clamp
|
| Number of Battery Bays |
1
|
| Dimensions |
7.3 x 4.7 x 1.6" / 185 x 120 x 40 mm
|
| Weight |
22.9 oz / 650 g
|
| Package Weight |
1.585 lb
|
| Box Dimensions (LxWxH) |
8.7 x 5.4 x 2.6"
|
