Description
IDX System Technology P-VCPMICROK Overview

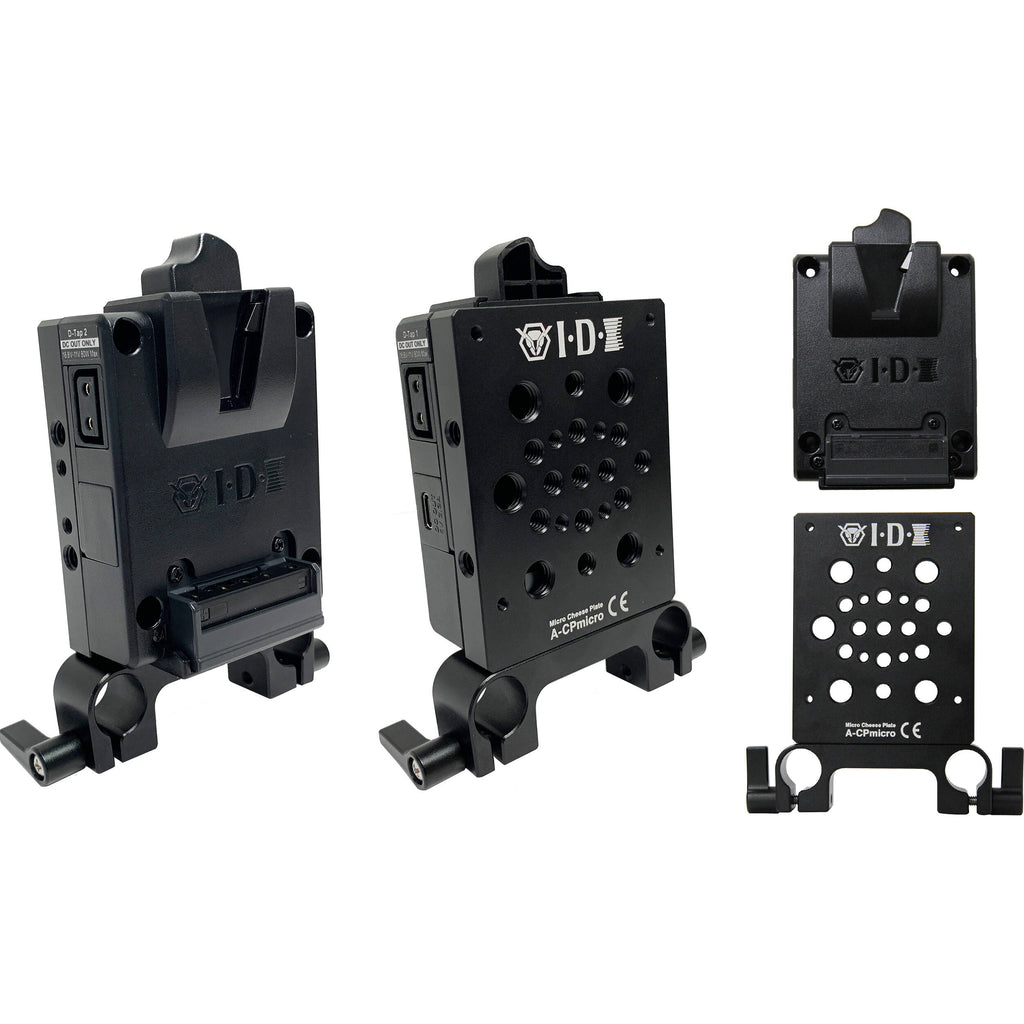

The P-Vmicro V-Mount Plate for Imicro Batteries with Multipurpose Cheese Plate Kit from IDX System Technology bundles a P-Vmicro V-mount plate with a multipurpose cheese plate. The kit provides a solid mounting solution for your Imicro-98 and 150 batteries, while expanding your accessory mounting options with multiple threaded 1/4"-20 and 3/8"-16 holes.
Power your camera and accessories using an Imicro-98 or Imicro-150 battery with the P-Vmicro V-Mount Plate for Imicro Batteries from IDX. The P-Vmicro is designed for IDX Imicro V-mount batteries and it mounts using the separately available IDX A-CPmicro cheese plate.
The plate features two D-Tap outputs with a maximum output of 80W to power your camera, lights, or accessories. It also features one 5V, 2.3A USB Type-C output to power smaller accessories such as a smartphone or tablet.
A-CPmicro cheese plate
Use this Multipurpose Cheese Plate from IDX to mount the P-Vmicro V-mount battery plate onto a separately available 15mm rod. The sturdy aluminum cheese plate provides numerous 1/4"-20 and 3/8"-16 threads for accessory mounting and a 15mm rod clamp. The rod ports are tightened using thumbscrews.
15mm rods
Items Included
- IDX System Technology P-Vmicro V-Mount Plate for Imicro Batteries
- 4 x M3 Screw
- Limited 2-Year Manufacturer Warranty
- IDX System Technology Multipurpose Cheese Plate for P-Vmicro V-Mount Plate
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
IDX System Technology P-VCPMICROK Specs
| Maximum Load |
80 W, 14 A
|
| Power Output |
D-Tap: VDC
D-Tap: VDC USB-C: 5 VDC at 2.3 A |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
No
|
| Maximum Load |
80 W, 14 A
|
| Power Output |
D-Tap: VDC
D-Tap: VDC USB-C: 5 VDC at 2.3 A |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
1/4"-20 Female, 3/8�-16 Female
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
No
|
| Dimensions |
2.6 x 3.78 x 1.1" / 6.6 x 9.6 x 2.79 cm
|
| Weight |
3.88 oz / 110 g
|
| Operating Temperature |
-4 to 113°F / -20 to 45°C
|
| Package Weight |
0.255 lb
|
| Box Dimensions (LxWxH) |
5.25 x 3 x 1.35"
|
IDX System Technology P-VCPMICROK Specs
| Material of Construction |
Anodized Aluminum
|
| Mounting Threads |
19 x 1/4"-20
6 x 3/8"-16 4 x M4 4 x M3 |
| Rod Standard |
15 mm
|
| Dimensions |
3.11 x 4.29 x 0.71" / 7.9 x 10.9 x 1.8 cm
|
| Weight |
6.0 oz / 170 g
|
| Package Weight |
0.445 lb
|
| Box Dimensions (LxWxH) |
5.05 x 4.6 x 1.05"
|
