Description
OCTAMAS gear OG-34004435 Overview

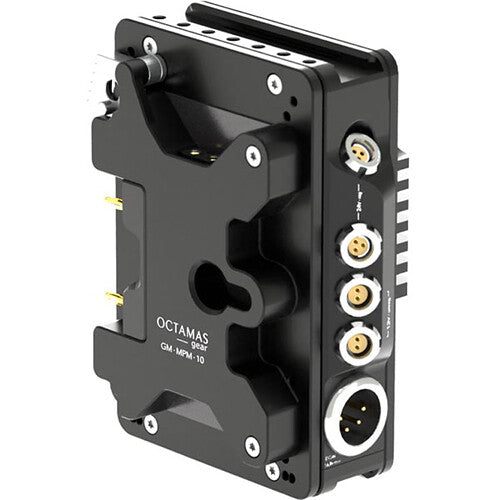

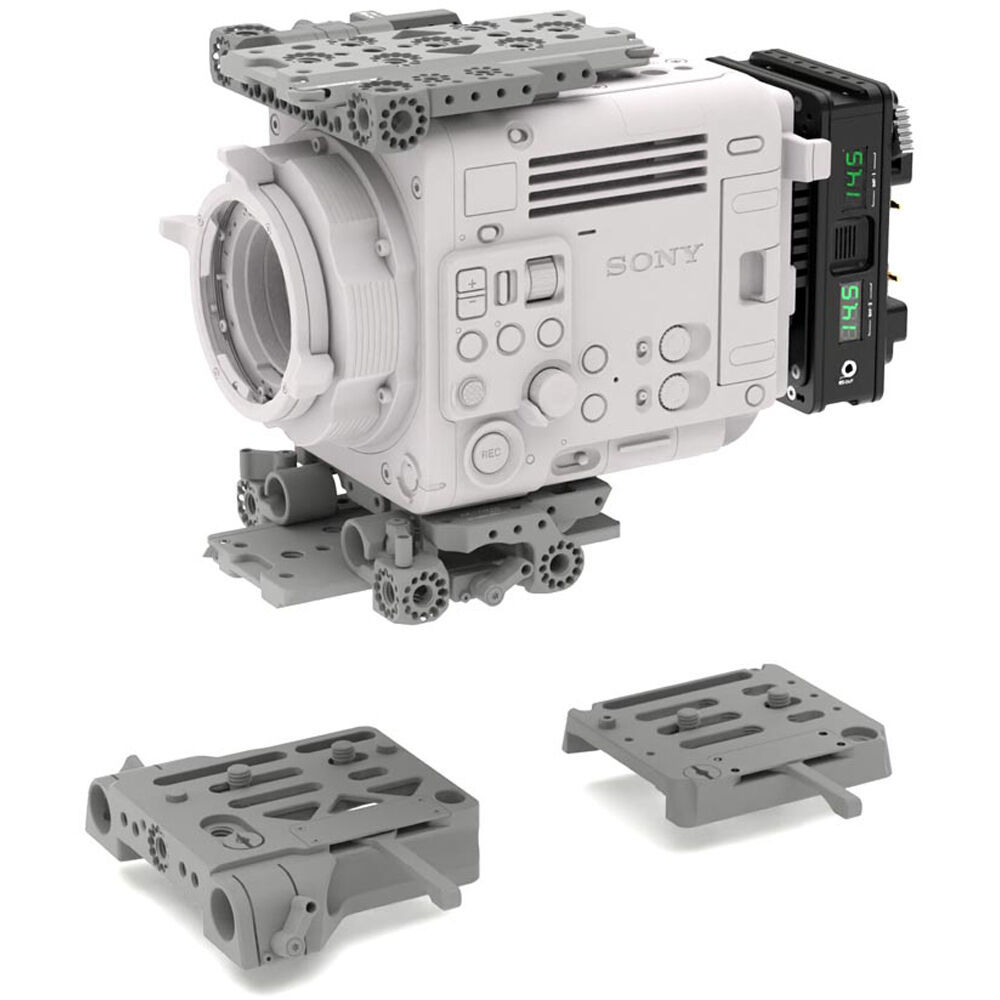

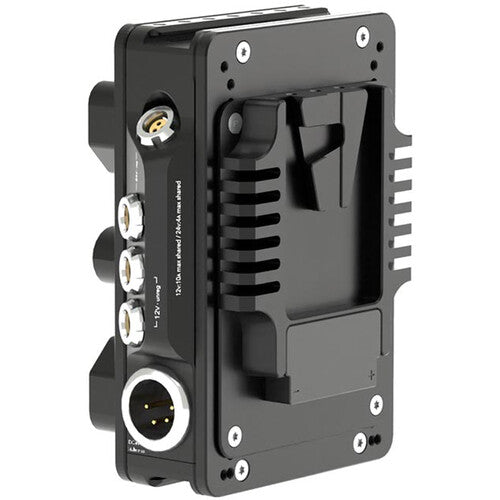

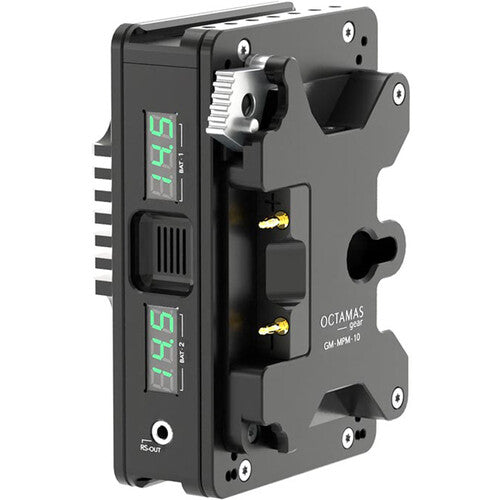

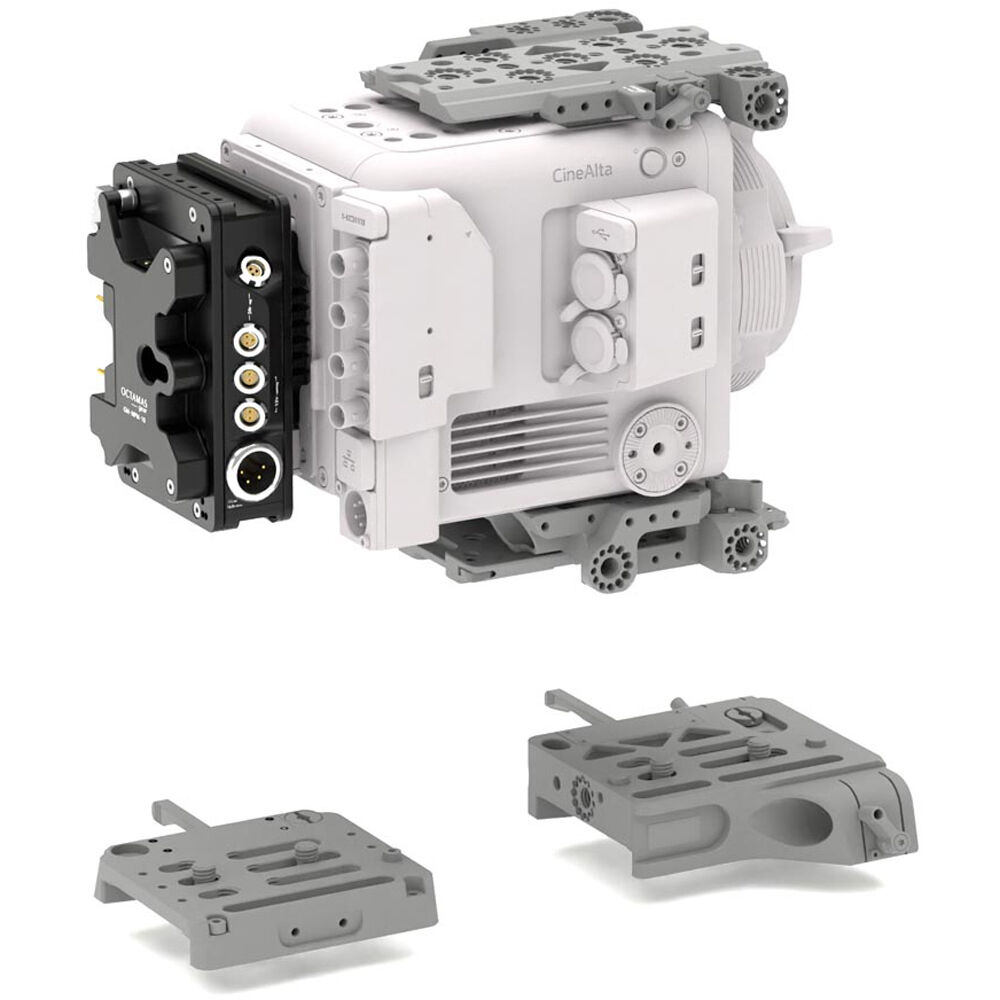

Adapt your cinema camera or light for use with full-sized Gold mount batteries using this Power Box Pro Gold Mount to V-Mount Adapter from OCTAMAS gear. Constructed from lightweight yet durable aluminum, this versatile power adapter features numerous power options for powering your V-mount camera or production gear using a professional Gold mount battery while providing redundant, hot-swap power and accessory power distribution options. Multiple threads on the top and bottom of the mount provide mounting options to integrate into the OCTAMAS gear SWISS cage system.
The plate features a 12V 4-pin XLR input to provide redundant power from an external source for hot-swapping with uninterrupted power, and its built-in chip prevents the battery from being discharged when installed. Output options include two 24V 3-pin Fischer run/stop trigger ports, a 3.5mm LANC run/stop trigger port, three D-Tap outputs, and two 2-pin LEMO-type outputs for powering accessories.
Items Included
- OCTAMAS gear Power Box Pro Gold Mount to V-Mount Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34004435 Specs
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
Gold Mount: VDC
XLR 4-Pin: 12 VDC |
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Inputs/Outputs |
1x XLR 4-Pin Male
2x Fischer 3-Pin 2x LEMO 2-Pin Female 3x D-Tap 1x 3.5 mm TRS |
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.8 x 3.5 x 2.6" / 123 x 90 x 66 mm
|
| Weight |
17.5 oz / 497 g
|
| Package Weight |
1.08 lb
|
| Box Dimensions (LxWxH) |
6.85 x 5.65 x 3.5"
|
