Description
OCTAMAS gear OG-34004085 Overview

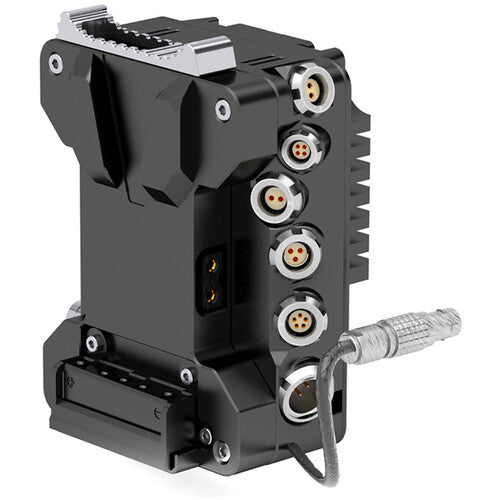

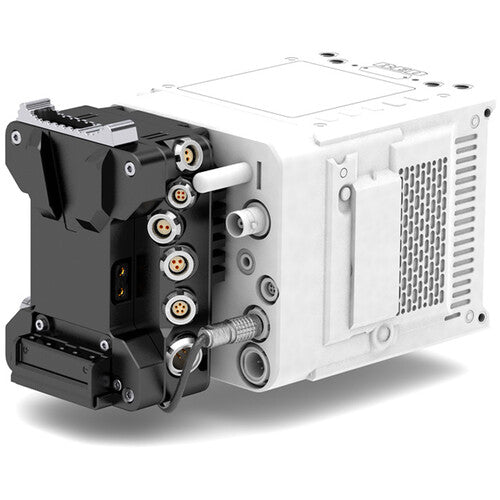

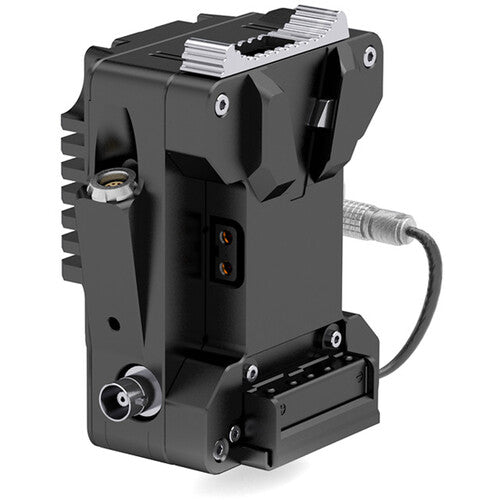

Power your RED KOMODO-X for extended periods of time with function extensions and failover with the Power Box Pro I/O from OCTAMAS gear. This power box mounts directly onto the V-mount of your RED KOMODO_X and features a V-mount battery plate and numerous power and control ports.
Once mounted and configured, attach the integrated RED-compatible EXT cable to power your camera and provide enhanced communication and control. Enjoy additional power output options such as D-Tap, 6-pin power failover, 9-pin pass-through power for a monitor or extension, as well as 5-pin timecode, BNC genlock, 4-pin RED CTRL, and a Fischer R/S port without having to connect your external devices to your camera.
NOTE: The plate supports most batteries up to 3.7" wide. Wider batteries require an optional offset plate.
- One 9-pin 0B RED EXT Cable
- One 9-pin 0B RED EXT pass-through for SmallHD or use of 9-pin breakout devices and triggers
- One 3-pin 24V Fischer RS (max. 3A) with Trigger protocol and trip fused
- One 6-pin 1B RED DC-IN (Hot Swap, Block Battery, Crane, Drone, Steadicam, etc.)
- One 4-pin 00B RED CTRL RCP2 port (SmallHD, c-Motion, etc)
- Two 2-pin 0B AUX/PWR unregulated direct power from DC or battery, trip fused
- One 5-pin 0B SMPTE Timecode In/Out and Genlock (Ambient Style)
- One BNC Genlock
- Two D-Tap with shorter positive pins so ground always connects first, unregulated direct power from DC or Battery, trip fused
- V-mount plate for battery
- Rear V-mount plate mounts onto RED KOMODO-X plate
In the Box
- OCTAMAS gear Power Box Pro I/O for RED KOMODO-X (V-Mount)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34004085Specs
| Maximum Load |
8 A
|
| Power Output |
LEMO 2-Pin: VDC
D-Tap: VDC Fischer 3-Pin: 24 VDC at 3 A |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
LEMO 6-Pin: VDC
|
| Maximum Load |
8 A
|
| Power Output |
LEMO 2-Pin: VDC
D-Tap: VDC Fischer 3-Pin: 24 VDC at 3 A |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Inputs/Outputs |
2x LEMO 9-Pin
1x Fischer 3-Pin 1x LEMO 6-Pin 1x XLR 4-Pin 2x LEMO 2-Pin 1x LEMO 5-Pin 1x BNC 2x D-Tap |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
Aluminum
|
| Dimensions |
3.9 x 3.3 x 2.2" / 100 x 85 x 55 mm
|
| Weight |
7.1 oz / 200 g
|
