Description
OCTAMAS gear OG-34001588 Overview

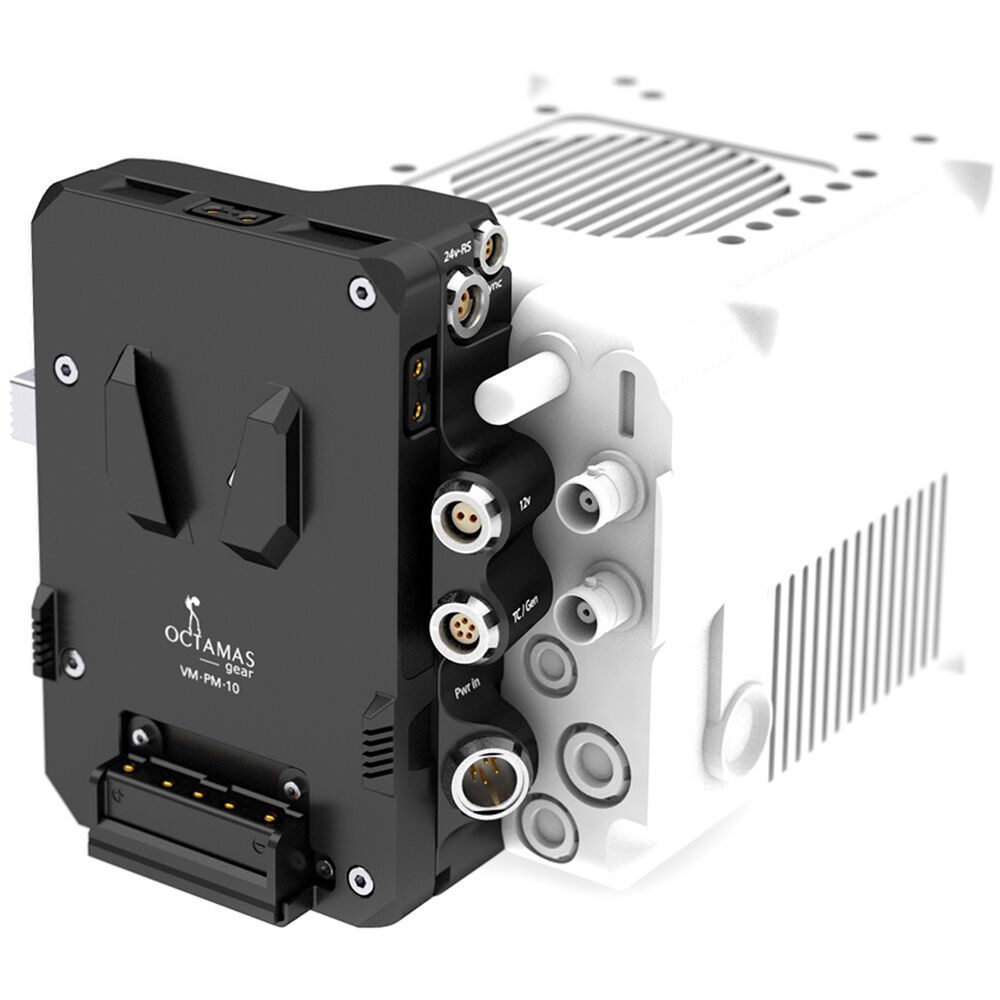

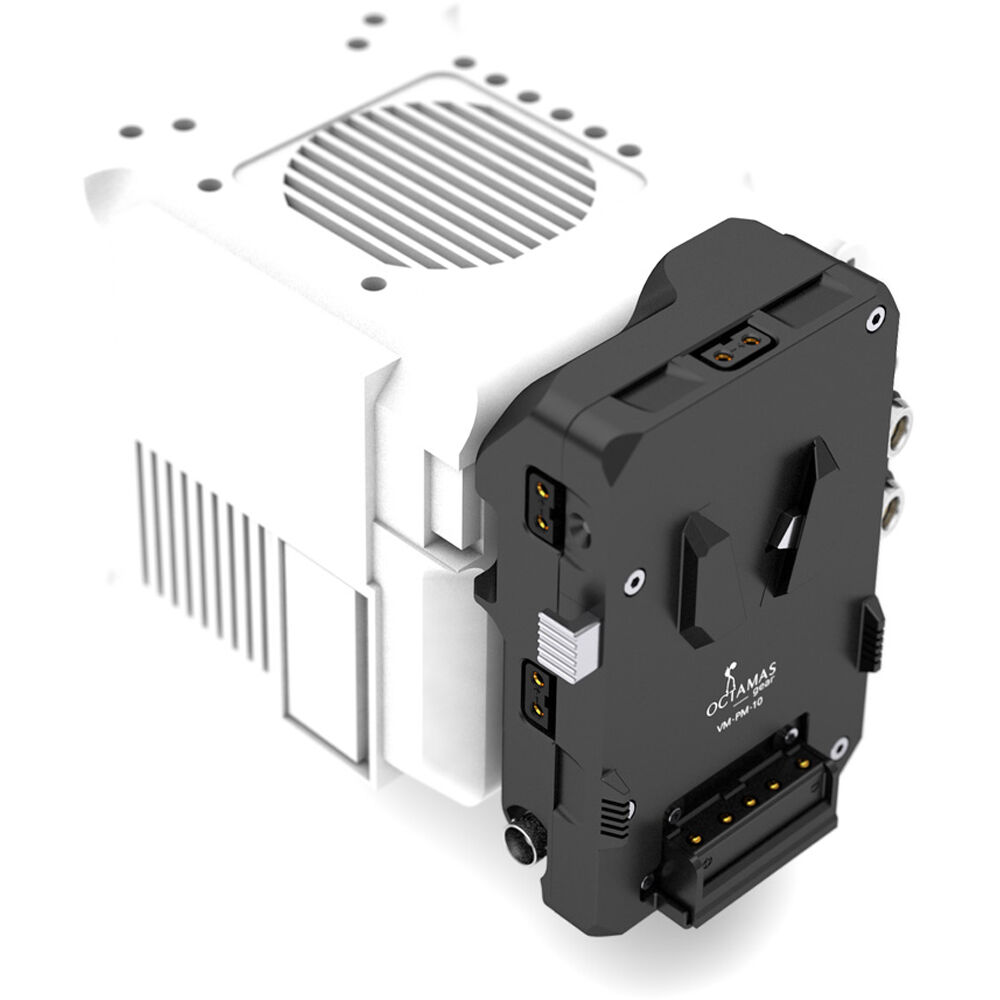

The Power Box Pro I/O V-Mount from OCTAMAS gear is a power distribution box for a V-mount battery that mounts directly onto the RED V-RAPTOR V-mount plate to provide power and control distribution. The plate plugs into the 9-pin EXT port on the camera to expand power and control options for the camera, and the 6-pin cable plugs into the camera's power input to provide hot-swap and failover options.

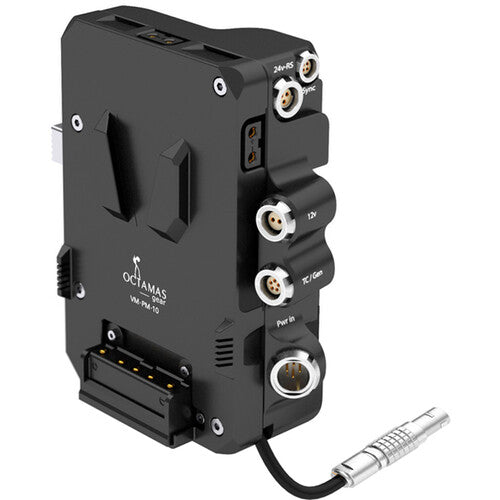

Power and control ports include five D-Tap outputs with an 8A safety fuse, a 2-pin 12V LEMO-type output, a 24V 3-pin Fischer 24V output that also supports run/stop, a BNC genlock port, a 4-pin RED CTRL RCP2 port, and a 5-pin SMPTE timecode/genlock input/output port. The V-mount Power Box supports SMBUS battery data pass-through to the camera.
In the Box
- OCTAMAS gear Power Box Pro I/O V-Mount for RED V-RAPTOR
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34001588Specs
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
LEMO 6-Pin: VDC
|
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
1x LEMO 9-Pin
1x Fischer 3-Pin 1x LEMO 6-Pin 1x LEMO 4-Pin 1x LEMO 2-Pin 1x BNC 1x LEMO 5-Pin 5x D-Tap |
| Plate Front / Battery Mount |
V-Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.8 x 4.1 x 1.9" / 123 x 103 x 49 mm
|
| Weight |
14.1 oz / 400 g
|
