Description

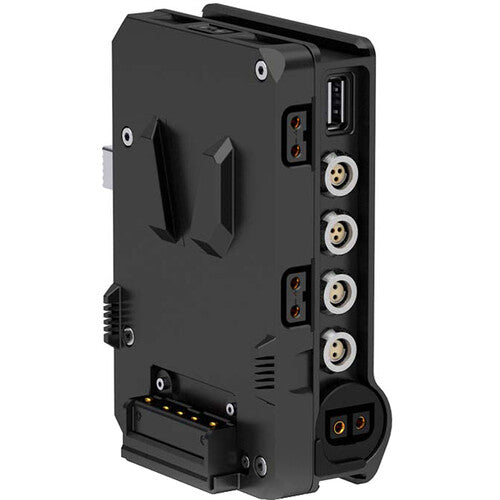

OCTAMAS gear OG-34003925 Overview
The Power Box V-Mount with D-Tap Camera Output from OCTAMAS gear is a power distribution box for a V-mount battery that features a D-Tap output to provide power to a camera or accessory. A separately available cable can provide unregulated 12 to 16.8V power to various cameras with different connectors. The V-mount can also pass SMBUS battery data through to the camera via the D-Tap port.
Other ports include three additional D-Tap accessory outputs, two 2-pin 12V LEMO-type outputs, two 24V 3-pin outputs that also support run/stop, and one 5V USB-A 3.1 input port to power a variety of accessories. For safety, an integrated fuse will trip if power exceeds 8A. The Power Box mounts onto the separately available OCTAMAS gear SWISS cage or 15mm LWS rod block.
In the Box
- OCTAMAS gear Power Box V-Mount with D-Tap Camera Output
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34003925Specs
| Power Output |
D-Tap: 12 to 16.8 VDC
Fischer 3-Pin: 24 VDC at 3 A LEMO 2-Pin: VDC D-Tap: VDC USB-A: 5 VDC at 2 A |
| Camera Power Method |
Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
No
|
| Power Input |
V-Mount: 12 VDC
|
| Power Output |
D-Tap: 12 to 16.8 VDC
Fischer 3-Pin: 24 VDC at 3 A LEMO 2-Pin: VDC D-Tap: VDC USB-A: 5 VDC at 2 A |
| Camera Power Method |
Connector
|
| Inputs/Outputs |
2x Fischer 3-Pin
2x LEMO 2-Pin 4x D-Tap 1x USB-A |
| Plate Front / Battery Mount |
V-Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.9 x 3.1 x 1.9" / 125 x 80 x 48 mm
|
| Weight |
14.1 oz / 400 g
|
