Description
SmallRig 4340 Overview

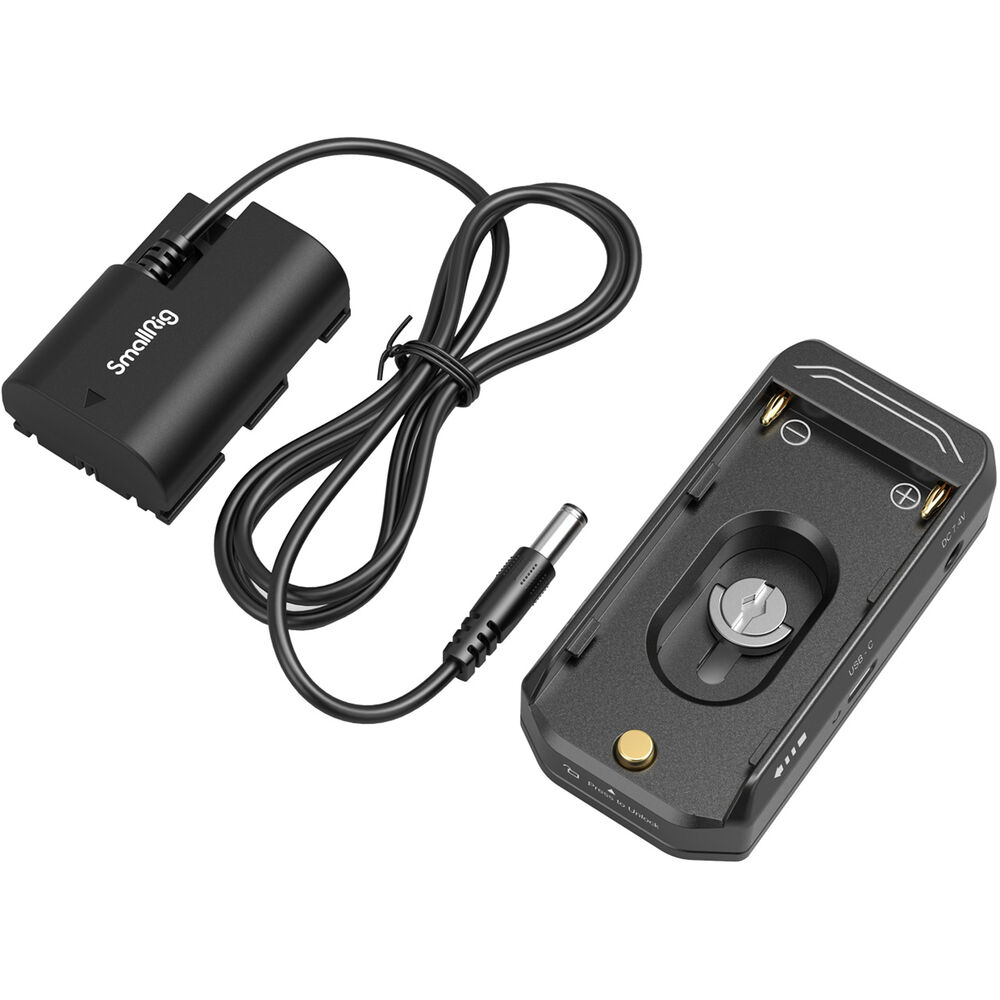

Mount your L-series battery on your cage to power your DSLR, mirrorless, or cinema camera with an LP-E6NH battery slot with this advanced edition L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit from SmallRig. The kit includes an L-series battery plate and a 2.1mm DC barrel to LP-E6NH dummy battery cable to accommodate Canon and Blackmagic Design cameras that can be powered using an LP-E6NH battery.

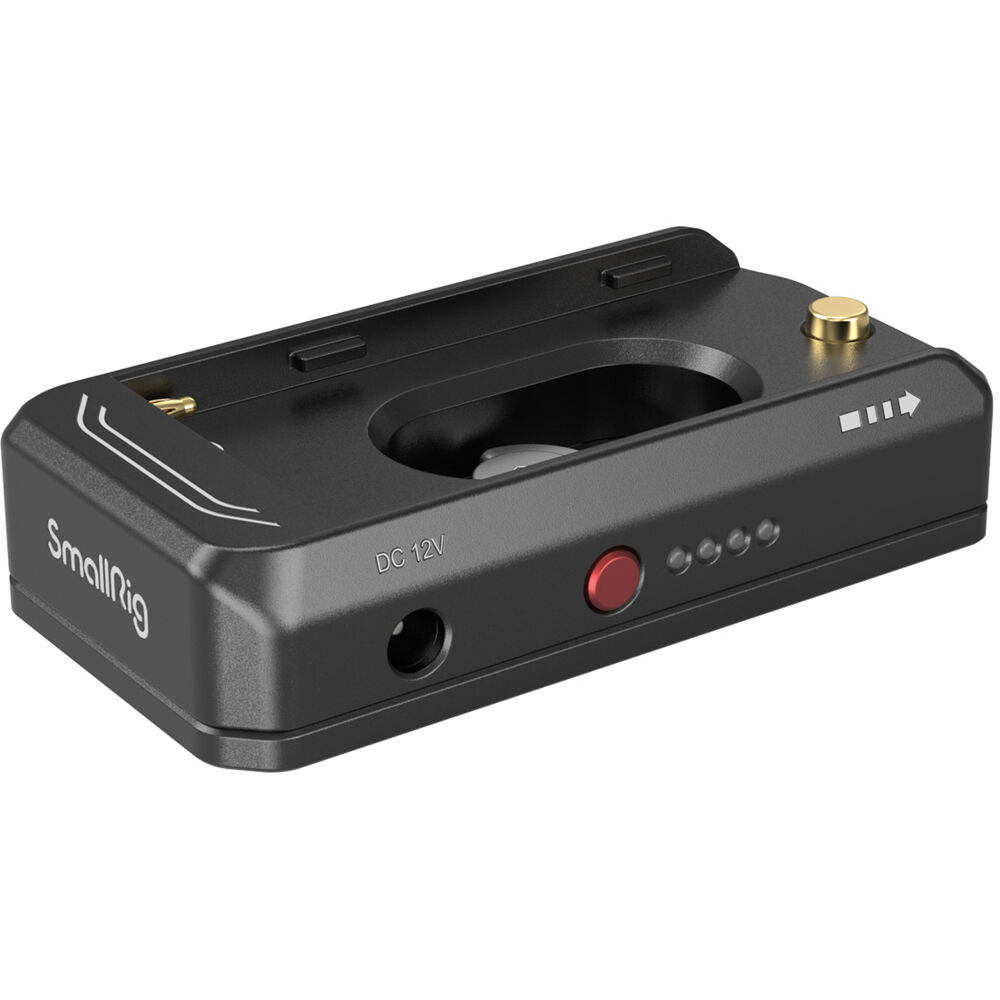

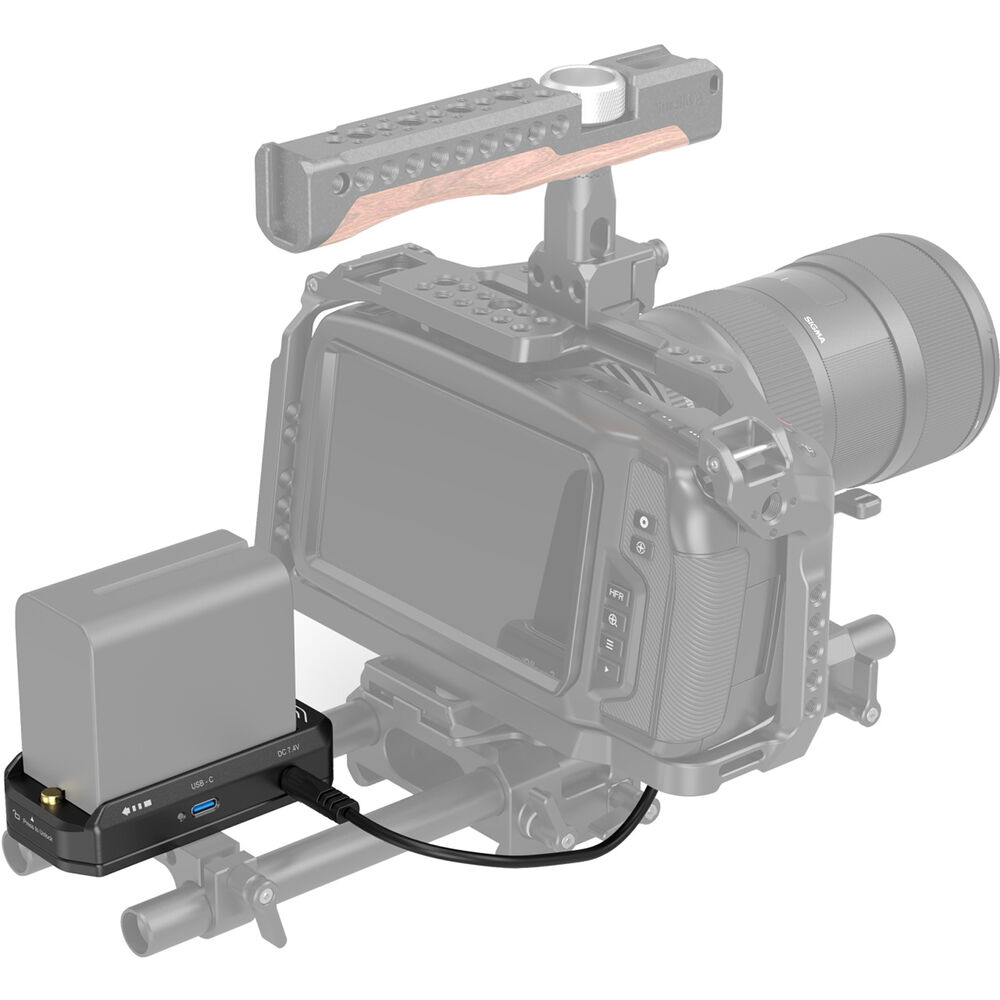

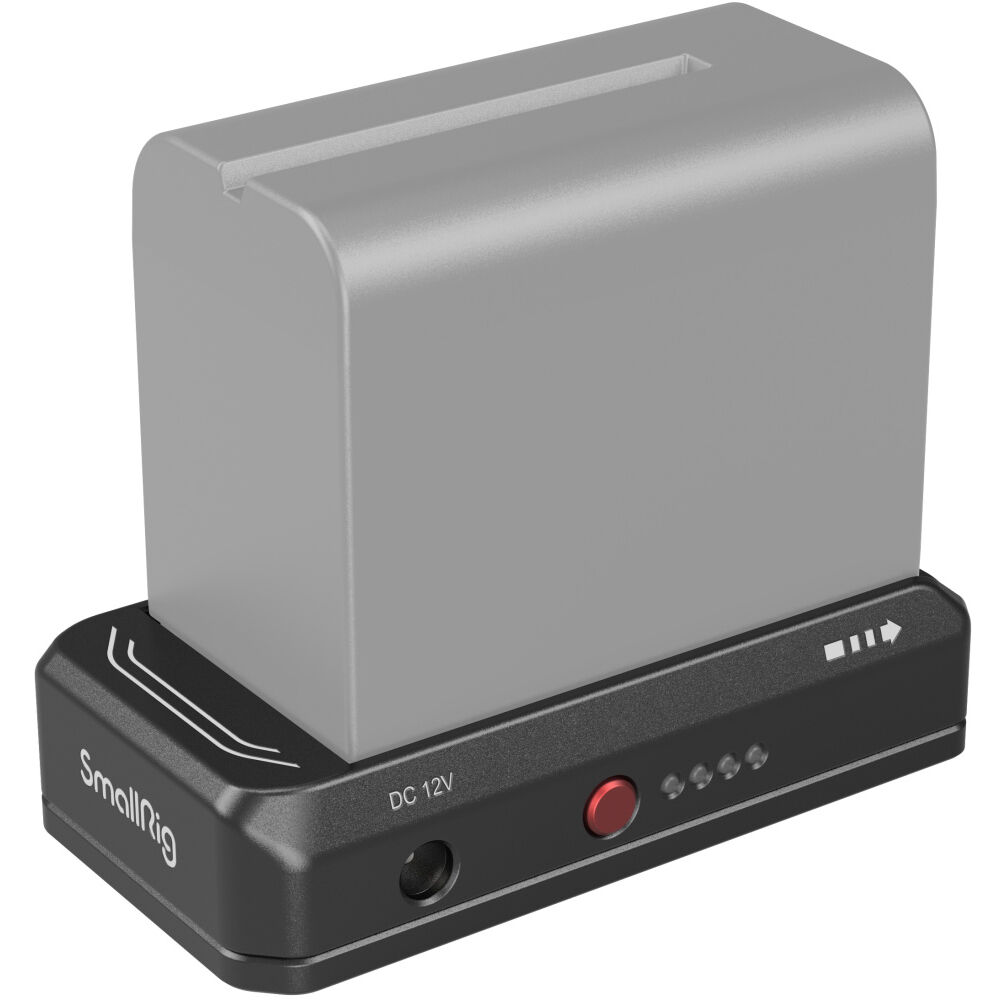

The aluminum battery plate accepts a separately available, high-capacity Sony L-series/NP-F type battery to provide up to 12V power to your camera. It mounts onto your camera rig or cage using the included 1/4"-20 thumbscrew, and it features a power button and battery status LED indicators on the side. The 36W input/output USB-C port can power a camera or accessory, and it can also be used to charge the mounted battery. There are 12 and 7.4V barrel outputs that can also power your camera or accessory using the included dummy battery or a separately available cable/adapter. All ports feature circuit protection to prevent damage to your gear.
- Canon EOS 5D Mark II/III/IV | 6D/6D Mark II | 7D/7D Mark II | 60D/60Da | 70D | 80D | 90D | XC10 | XC15 | 5DS/5DSR | R | R5/R5C | R6/R6 Mark II | R7
- Blackmagic Pocket Cinema Camera 4K/6K/6K Pro
- Compatible with NP-F type/L-series batteries, paired with DC to LP-E6NH dummy battery power cable, providing external power supply for Canon EOS R5/R5C, Blackmagic Pocket Cinema Camera 4K/6K/6K Pro, and various mirrorless cameras
- Aluminum and gold-plated electrical contacts make it more durable and conductive

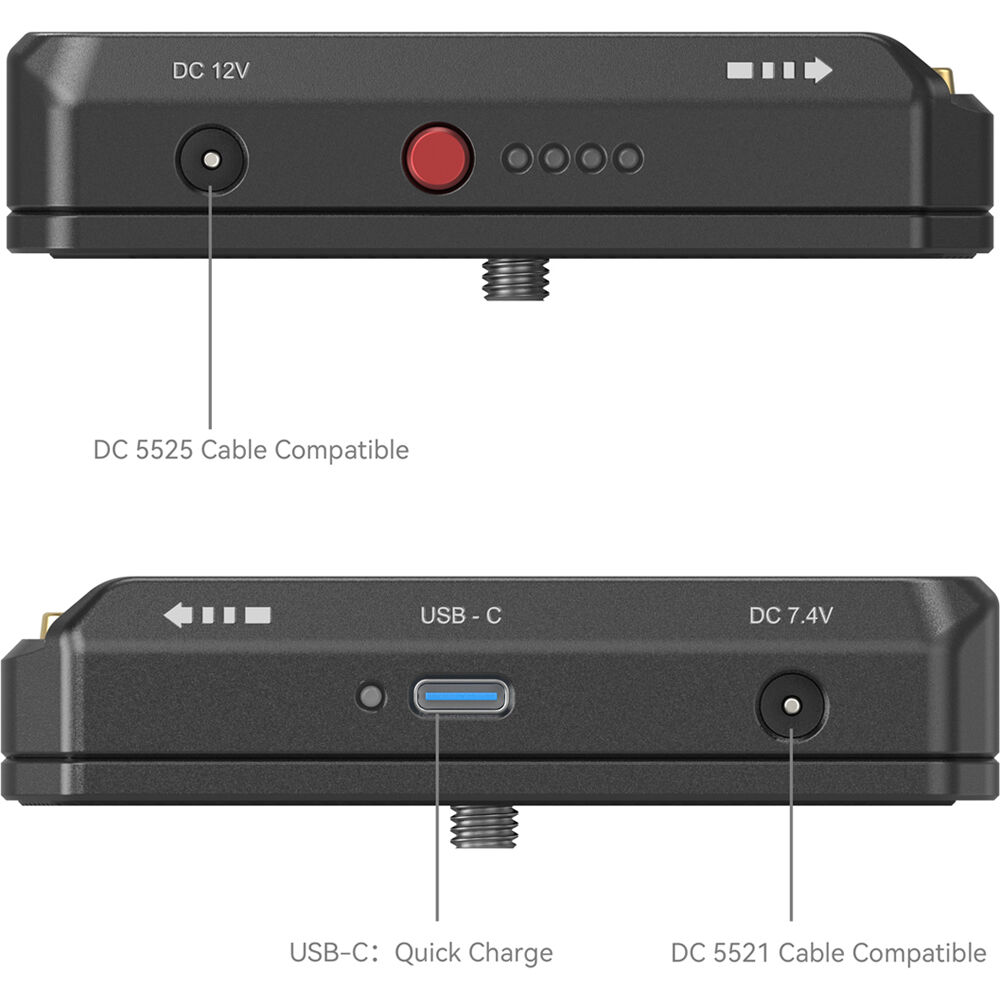

- Allows to access two devices with 7.4 and 12 VDC dual output Maximum DC and USB-C output: 36W

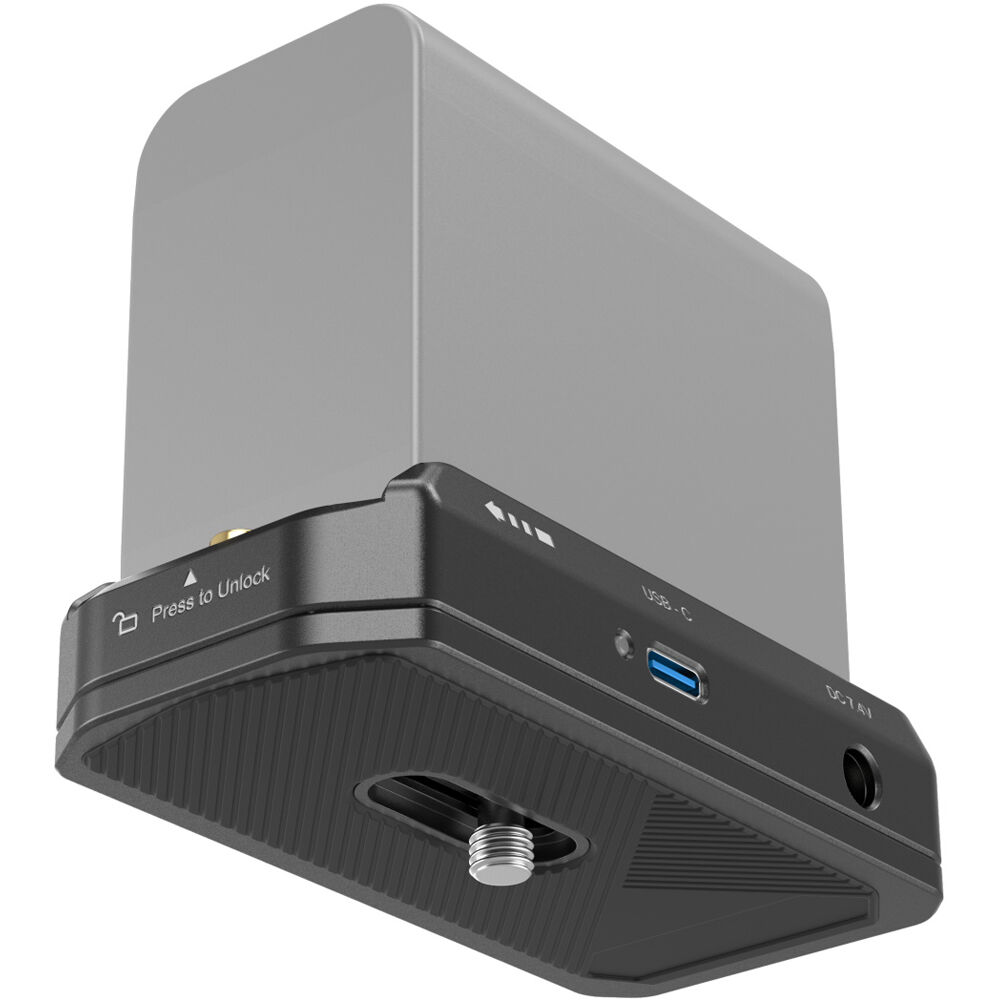

- The USB-C interface supports bidirectional input and output with 36W power
- Features automatic wake-up and sleep modes to avoid damage to the camera
- Comes with USB-C mode and power indicators for easy viewing of charging and state of charge
- Each output port features short circuit and high current protection to ensure safety during use
In the Box
- SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition)
- SmallRig L-Series/NP-F Battery Adapter Plate (Advanced Edition)
- 2.1mm DC to LP-E6NH Dummy Battery Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallRig 4340Specs
| Power Output |
DC Jack: 12 VDC
DC Jack: 7.4 VDC USB-C: VDC |
| Camera Power Method |
Connector, Dummy Battery
|
| Plate Front / Battery Mount |
Sony L-Series
|
| Power Input |
USB-C: VDC
|
| Power Output |
DC Jack: 12 VDC
DC Jack: 7.4 VDC USB-C: VDC |
| Camera Power Method |
Connector, Dummy Battery
|
| Inputs/Outputs |
2x Barrel Connector
1x USB-C |
| Dummy Battery |
Canon LP Series
|
| Plate Front / Battery Mount |
Sony L-Series
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female
|
| Material of Construction |
ABS Plastic
|
| Indicator |
LED
|
| Dimensions |

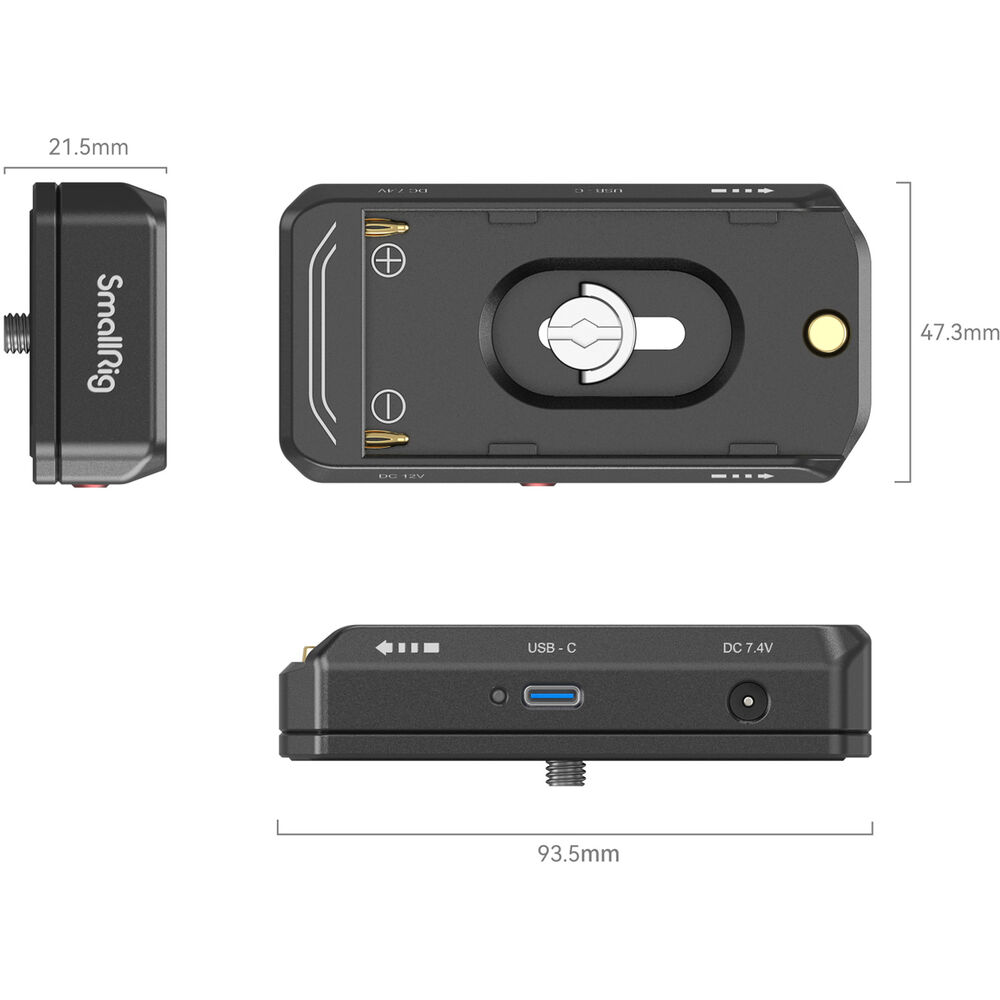

3.7 x 1.9 x 0.9" / 94 x 47 x 23 mm
|
| Weight |
4 oz / 113.5 g
|
| Package Weight |
0.425 lb
|
| Box Dimensions (LxWxH) |
3.9 x 2.8 x 2.2"
|
