Description
Tilta TA-T08-AMAB-B Overview
- 1Description
- 2Power Outputs
- 3I/O Expansion
- 4Battery Communication
- 5Modular Design

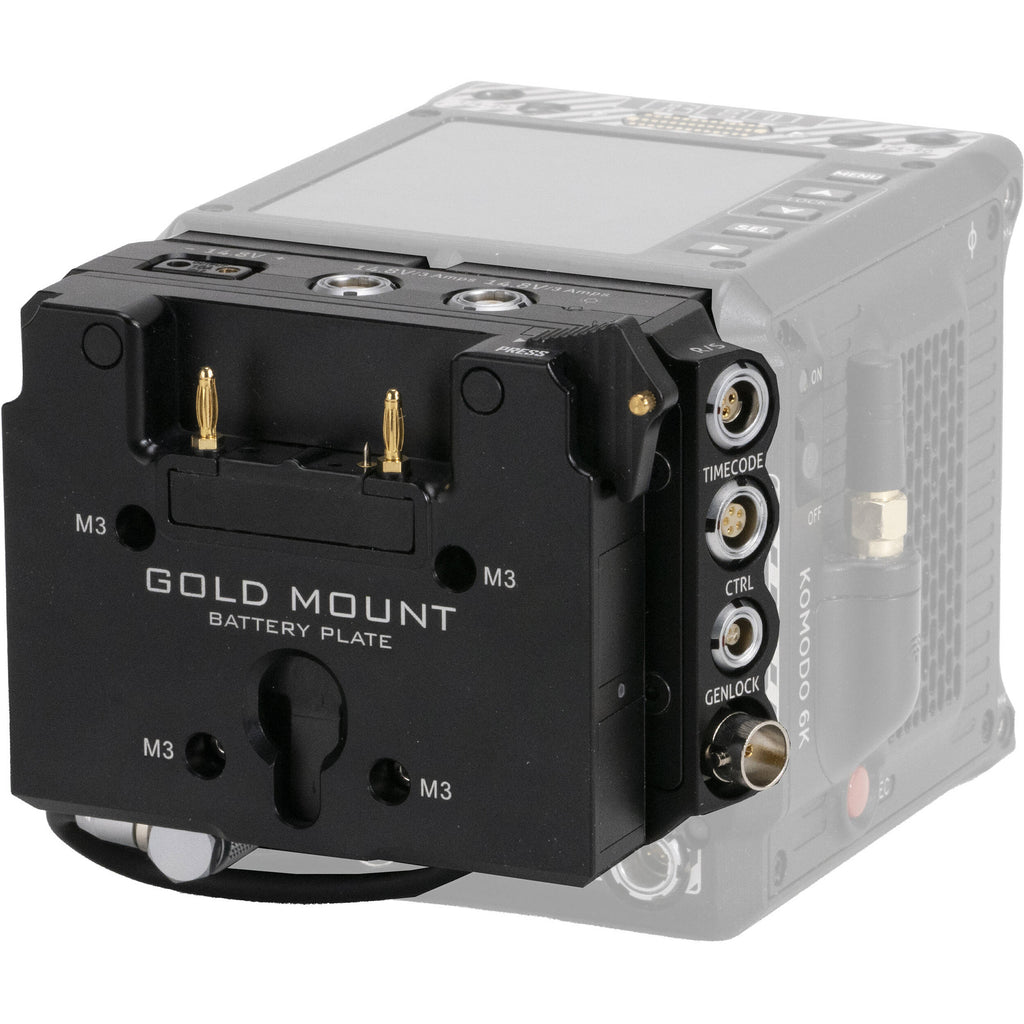

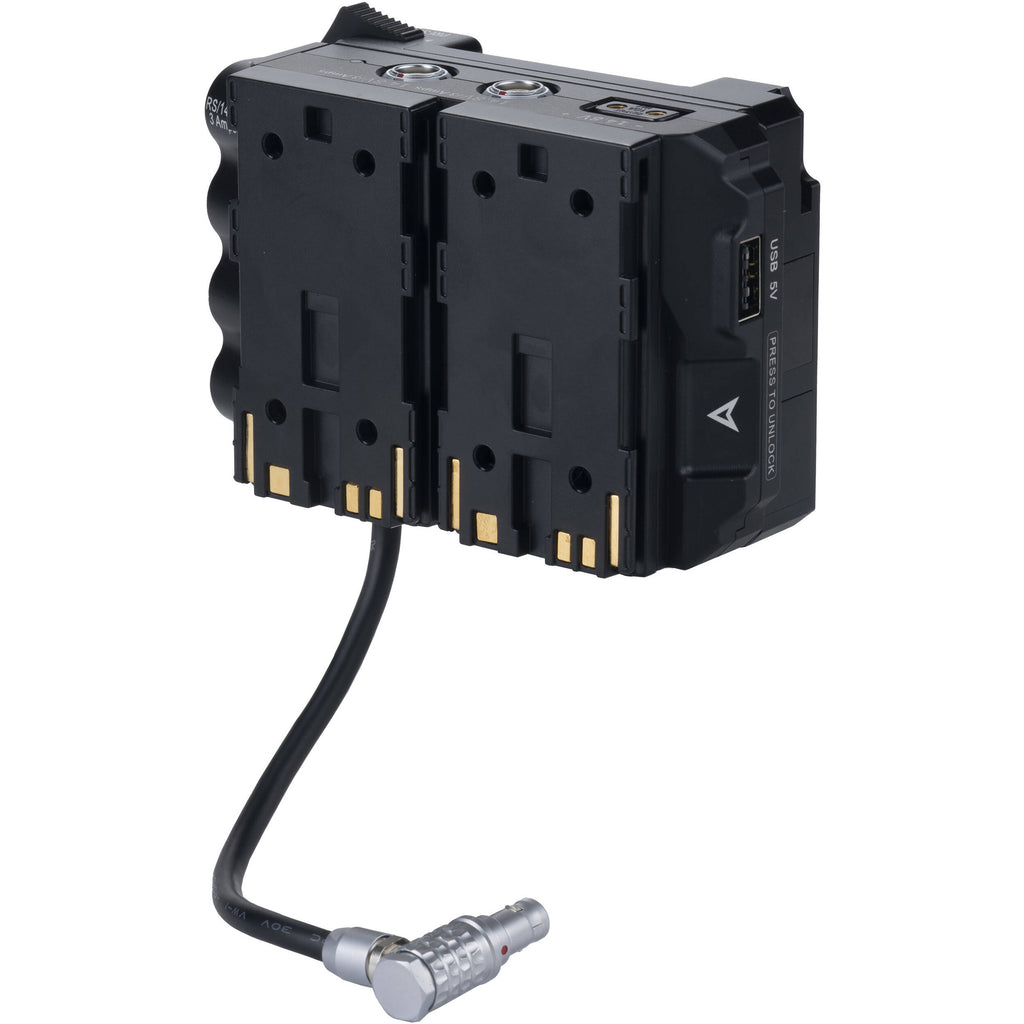

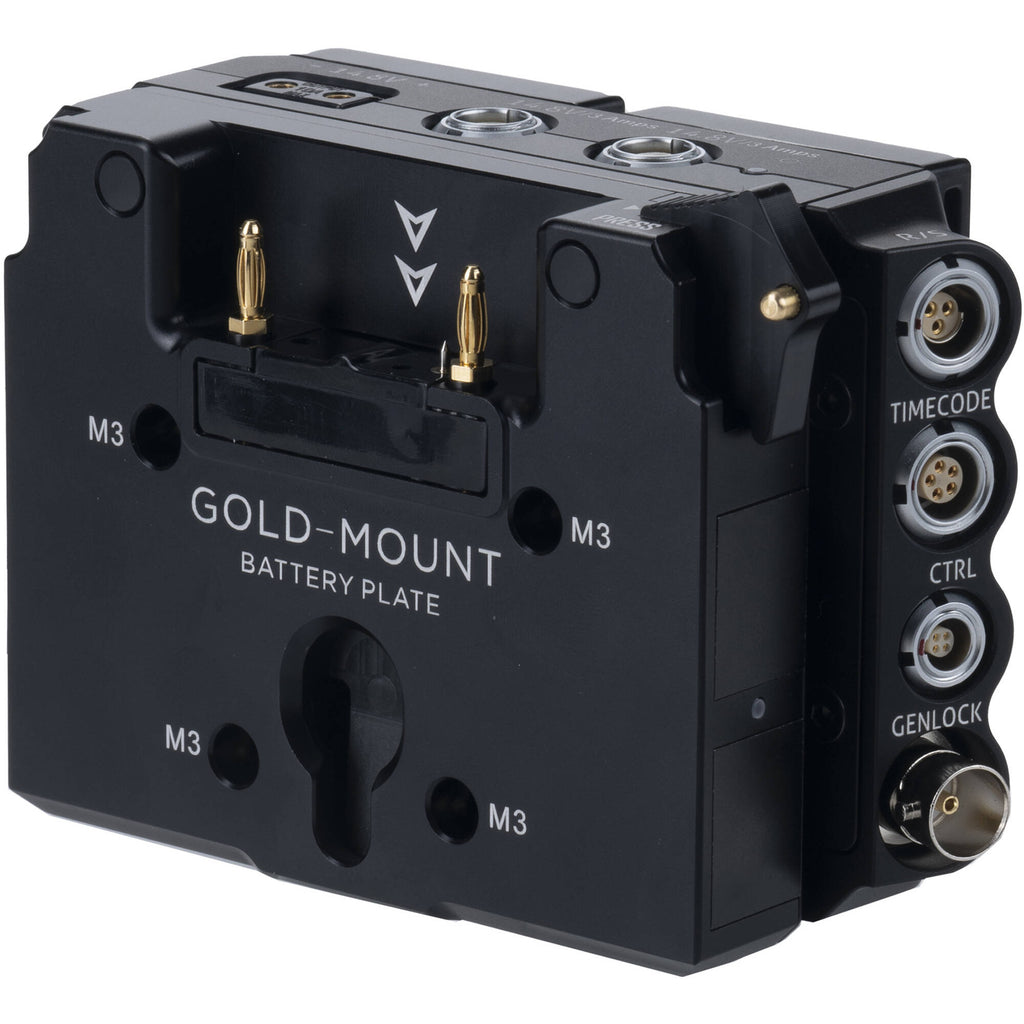

Power your RED KOMODO and accessories with the Tilta Advanced Power Distribution Module for RED KOMODO. The Tilta Power Distribution Module converts the KOMODO's native Canon BP-900 battery mounts to a horizontal Gold mount for use with long-lasting high-capacity Gold mount batteries. The module facilitates communication with other accessories, enabling batteries to display their remaining battery life on the camera screen, run/stop control via a Nucleus M follow focus controller, and extra I/O ports such as timecode and genlock.
Power Outputs
- One 14.8V D-Tap
- Two 14.8V 2-pin LEMO
- One 5V USB Type-A
I/O Expansion
- 5-pin LEMO timecode port
- BNC genlock port
- RED CTRL port
- 3-pin Fischer for run/stop control via a Nucleus M lens control system.
Battery Communication
Facilitates communication between the battery and the KOMODO, enabling the camera to display the remaining battery life for Gold mount batteries.
Modular Design
The interchangeable design allows you to swap between the horizontal/vertical V-mounts and the Gold mount as needed.
UPC: 810076272634
Table of Contents
- Description
- Power Outputs
- I/O Expansion
- Battery Communication
- Modular Design
Tilta TA-T08-AMAB-B Specs
Power
| Power Output | 12 to 16 VDC |
General
| Camera Power Method | Battery Plate Mount Type |
| Inputs/Outputs | 1 x D-Tap 1 x LEMO 2-Pin 1 x Fischer 3-Pin 1 x LEMO 3-Pin 1 x LEMO 4-Pin 1 x Barrel Connector 1 x Unspecified USB |
| Plate Rear Mount | Gold Mount Battery Plate |
| Number of Battery Bays | 1 |
| Material of Construction | Aluminum Alloy, Stainless Steel |
| Dimensions | 7 x 5 x 4.5" / 17.8 x 12.7 x 11.4 cm |
| Weight | 0.92 lb / 0.42 kg |
Packaging Info
| Package Weight | 1.275 lb |
| Box Dimensions (LxWxH) | 9.1 x 7.4 x 4.3" |
