Description
Wooden Camera 273000 Overview

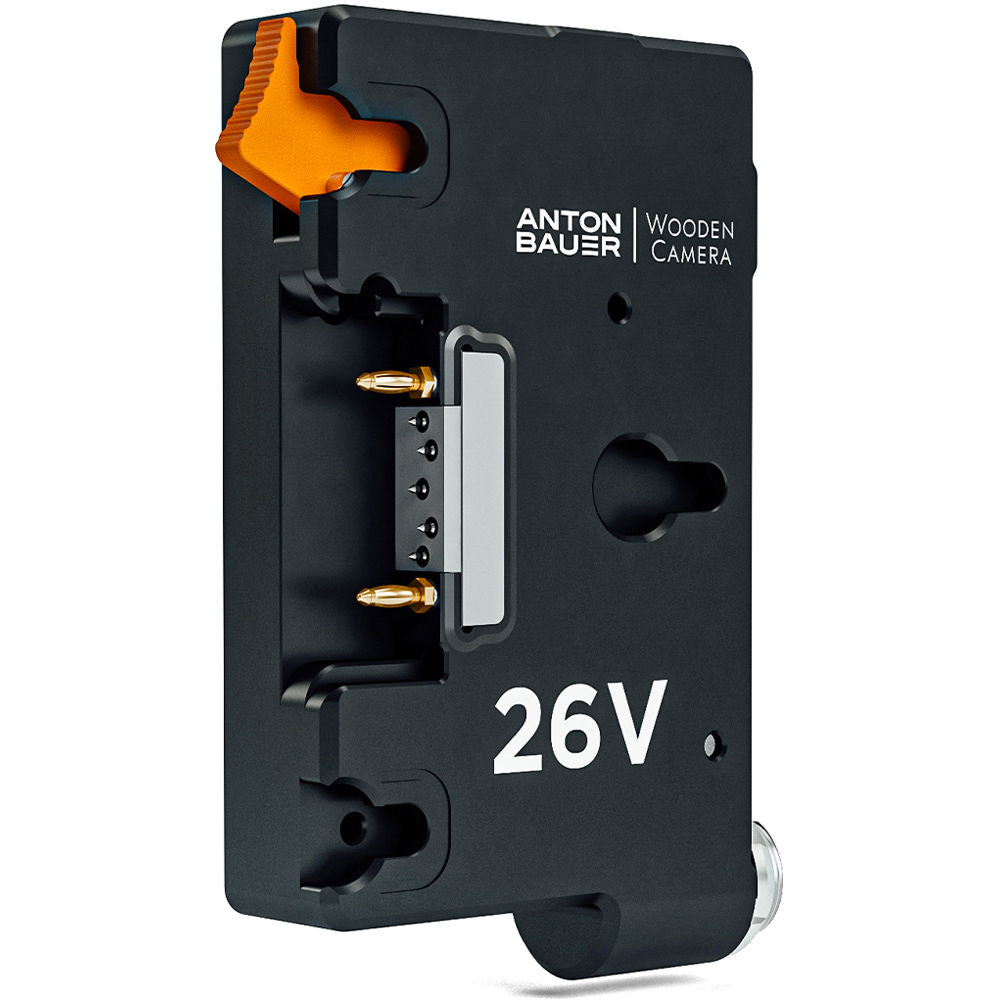

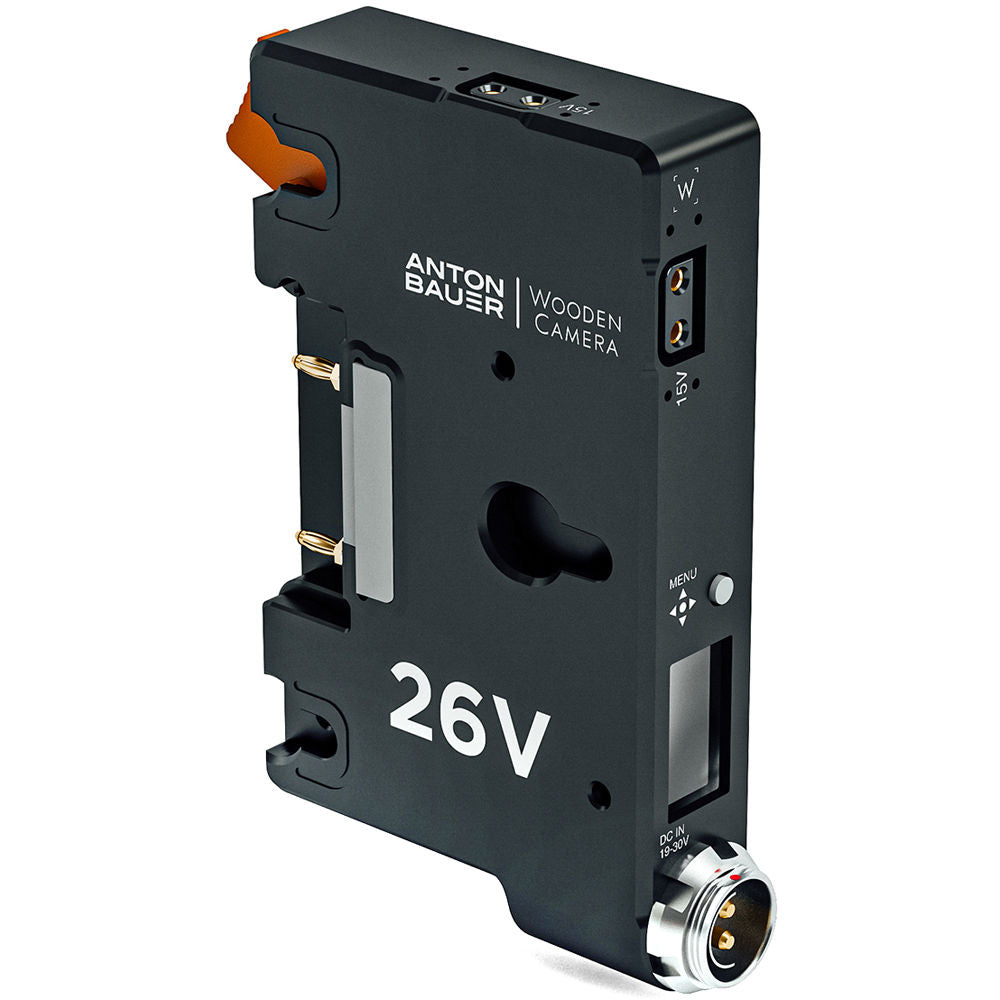

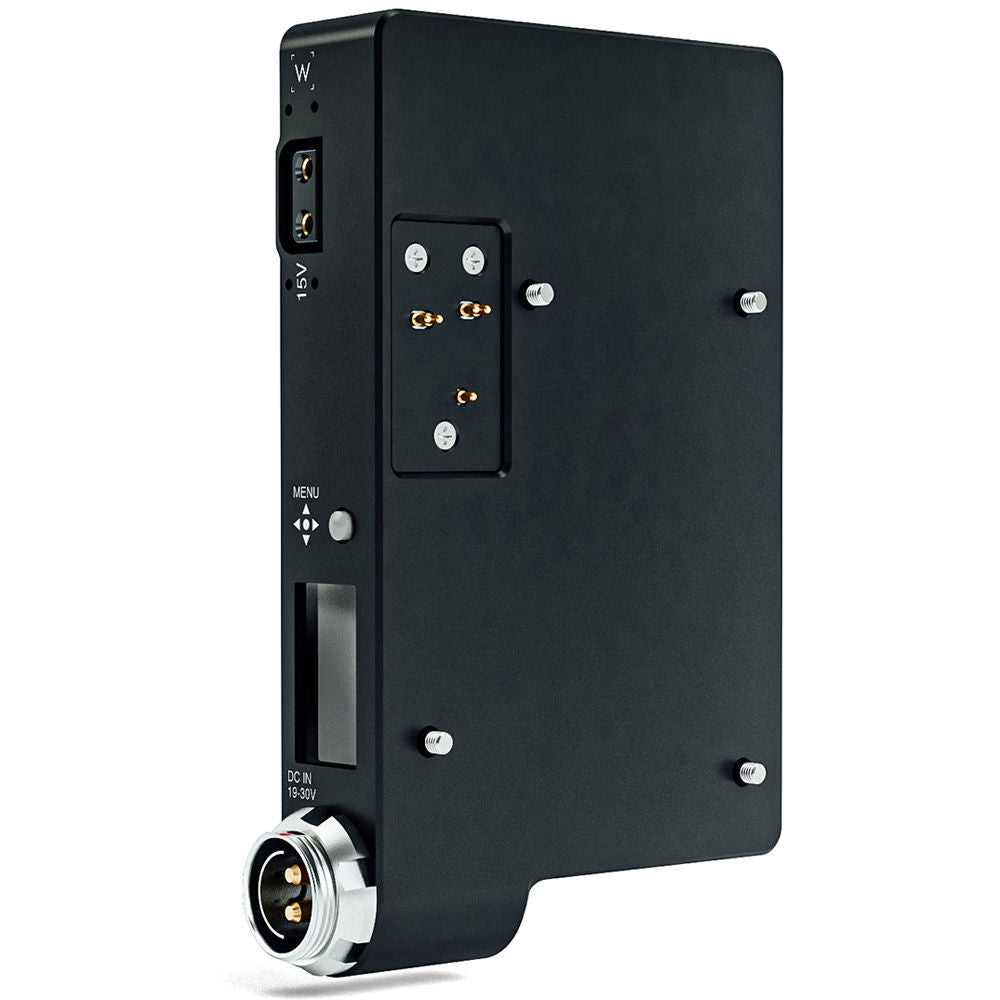

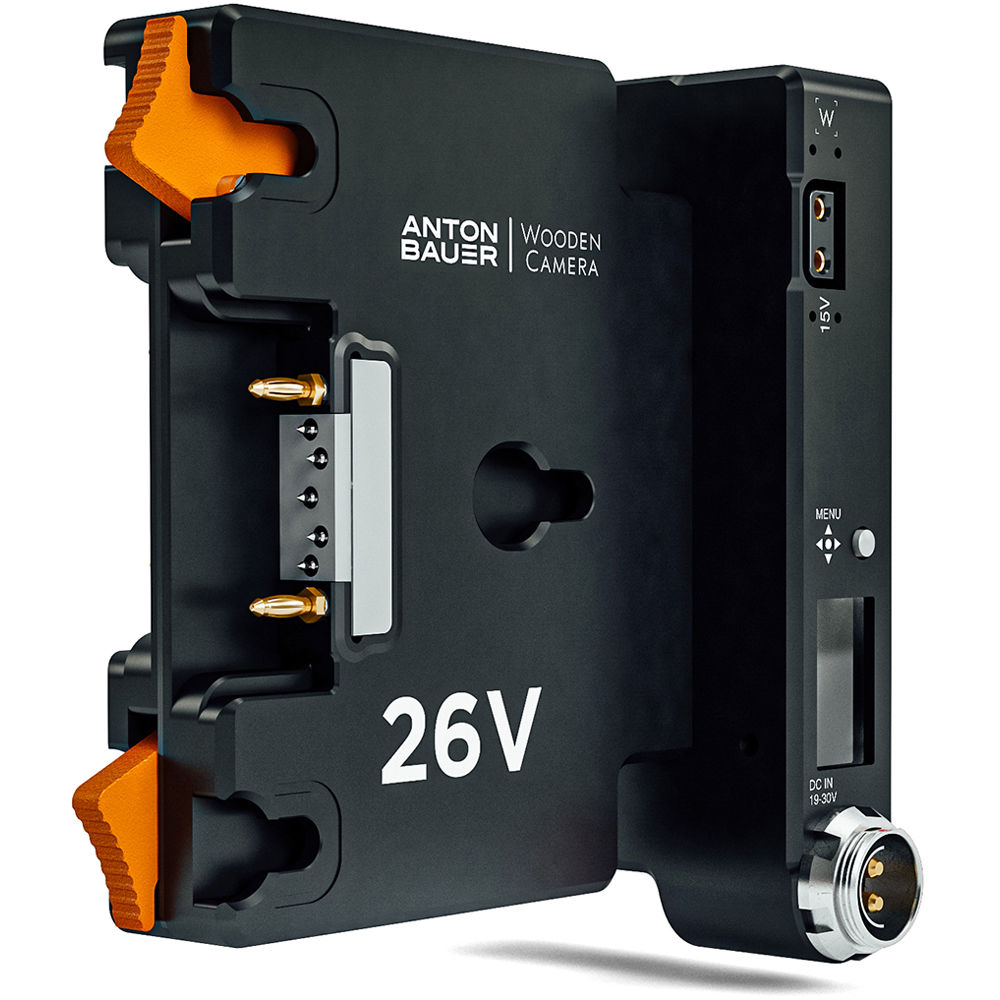

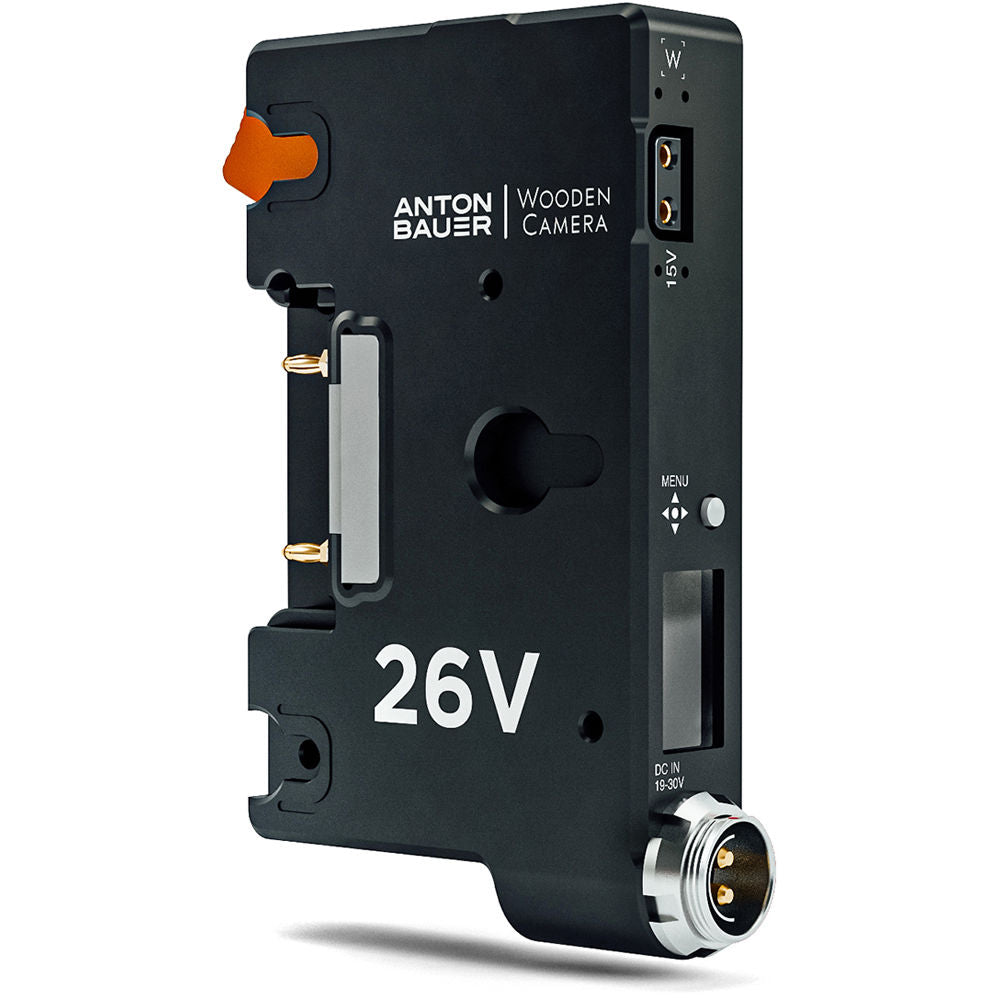

Add a Gold mount plate to your power-hungry ARRI ALEXA LF, 65, or SXT camera with this 26V Gold Mount Plus Battery Mount from Wooden Camera . The Gold mount plus allows you to mount one battery and attaches directly to the camera pogo connectors, providing power from large 26V block batteries.
The plate features a 2-pin Fischer input, which prioritizes the external DC source to drain before the onboard battery, and then it hot-swaps to the onboard battery when that source is drained. There are also two 15V regulated D-Tap outputs to power additional accessories. The plate supports battery hot-swapping, and it features an OLED screen that shows voltage and battery capacity information. A safety feature will cut power to the D-Tap ports if voltage exceeds capacity threshold.
In the Box
- Wooden Camera 26V Gold Mount Plus Battery Mount for ARRI ALEXA LF, 65, SXT
- Limited 1-Year Warranty
Wooden Camera 273000 Specs
| Input Voltage | 26 VDC |
| Output Voltage | 15 VDC (D-Tap) |
| Camera Power Method | Connector |
| Connectors | 2 x D-Tap 1 x 2-Pin Fischer |
| Battery Plate Type | Gold Mount |
| Number of Battery Bays | 2 |
| Hot-Swap Support | Yes |
| Indicator | OLED |
| Dimensions | 5 x 5 x 3.5" / 127 x 127 x 88.9 mm |
| Weight | 15.52 oz / 440 g |
| Package Weight | 1.075 lb |
| Box Dimensions (LxWxH) | 8.7 x 6.3 x 4.3" |
