Description
Wooden Camera A00599 Overview

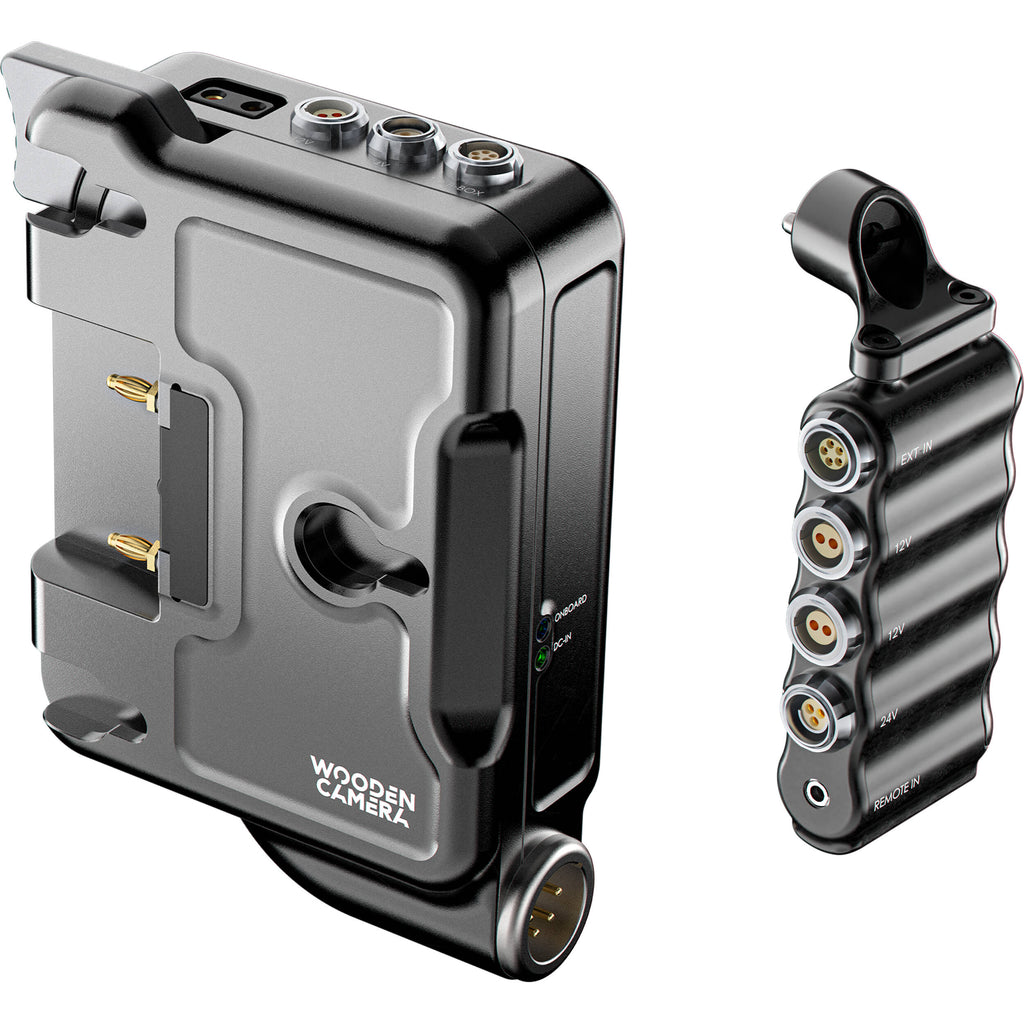

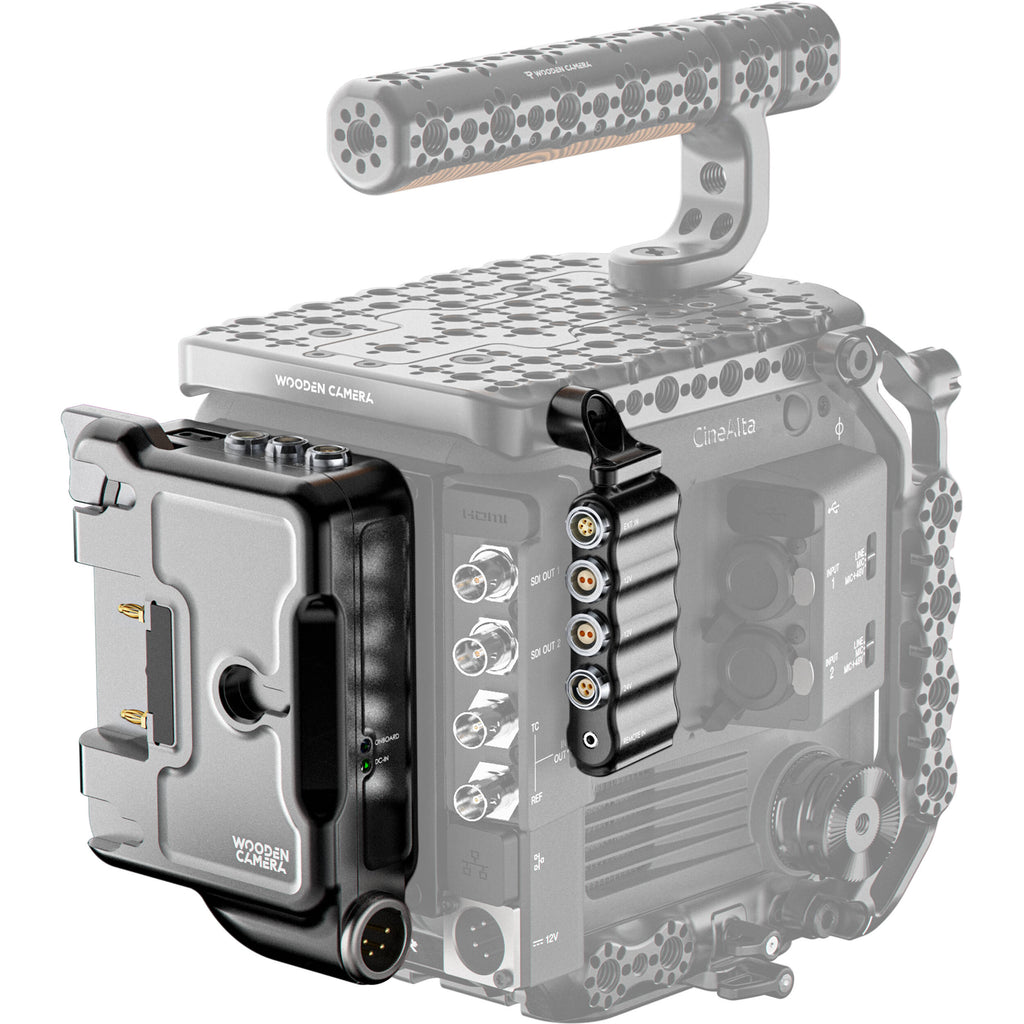

Extend the power output options of your Sony BURANO cinema camera with this D-Box + B-Box System Bundle from Wooden Camera. The bundle includes the D-Box power distribution unit with a Gold mount battery plate and the B-Box power extension unit. A remote cable and a link cable are included with the B-Box.

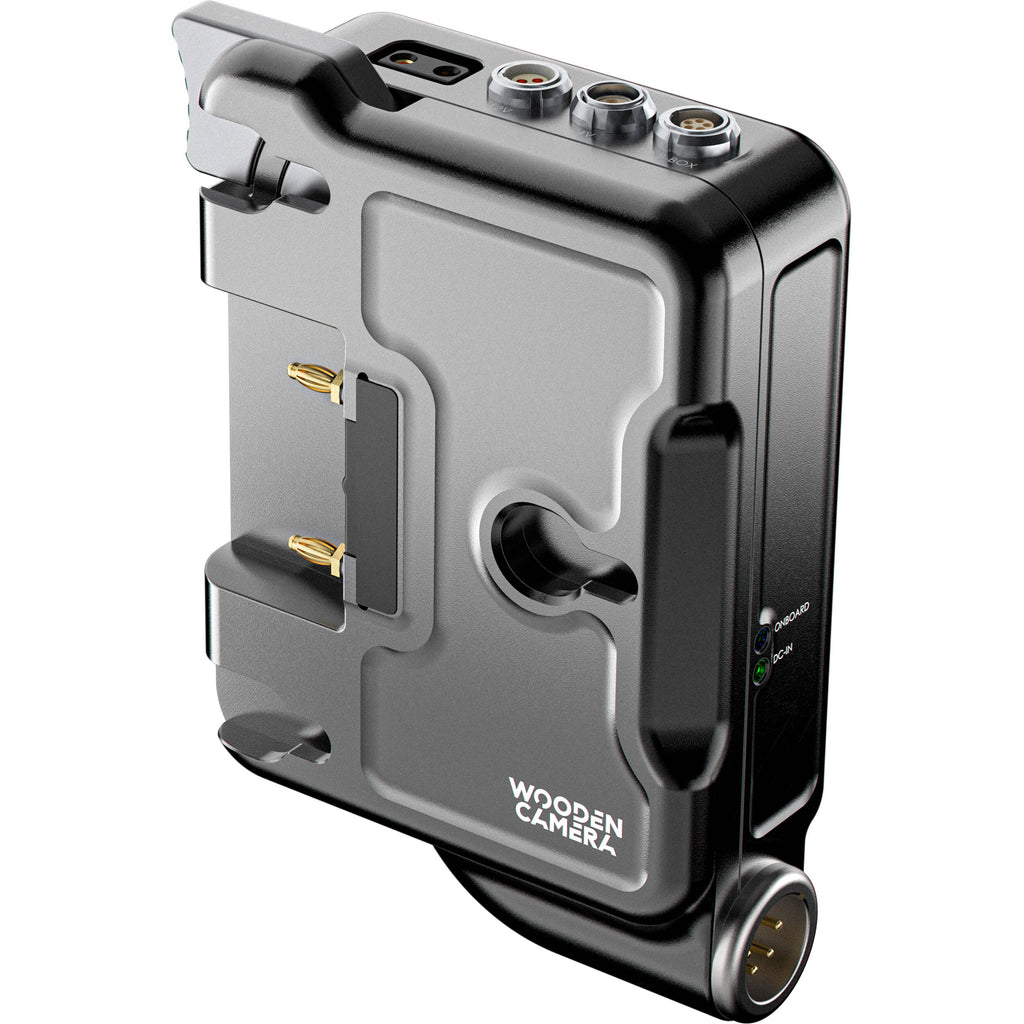

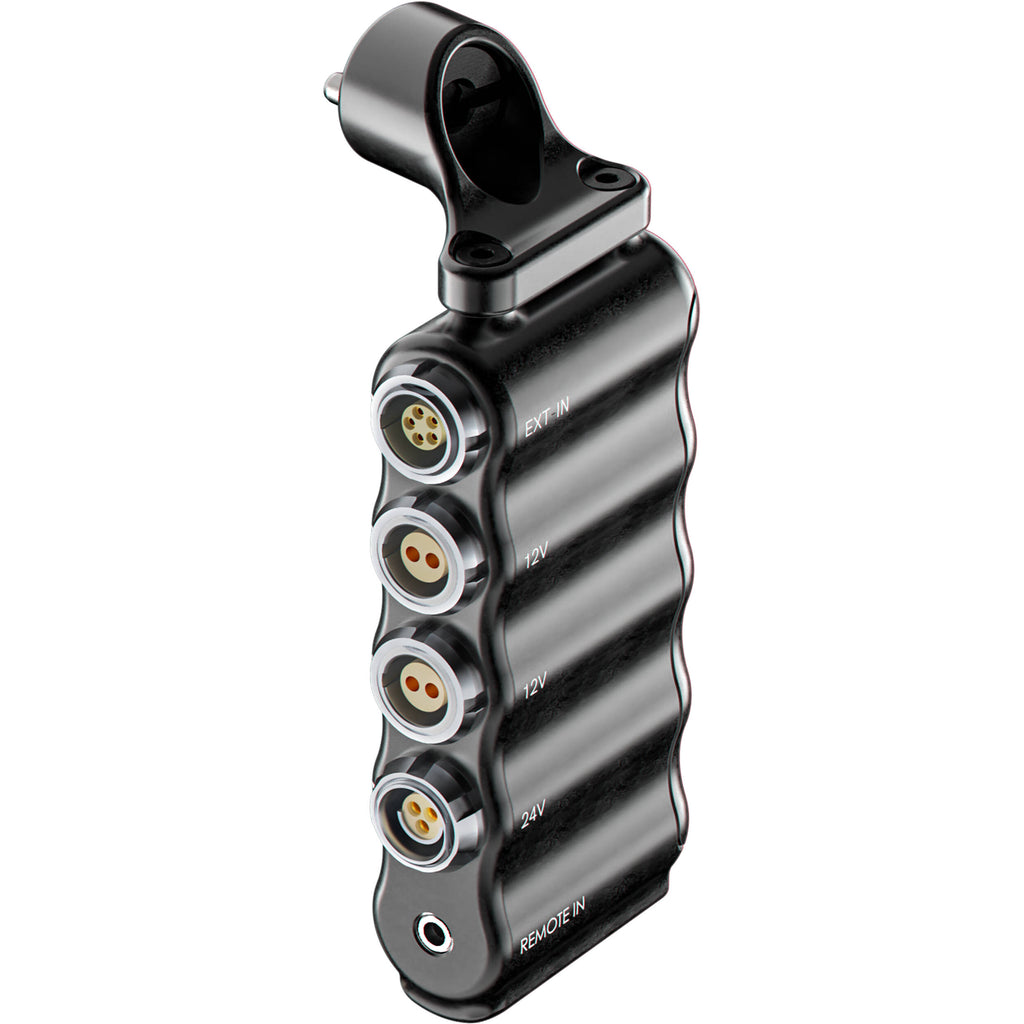

The D-Box provides 12V 2-pin, D-Tap, and 24V 3-pin ports to output power for the camera and accessories from a Gold mount battery, and it supports hot swapping when using the DC input. The B-Box connects to the D-Box with the link cable and adds two 12V 2-pin ports and a 24V 3-pin port that can be used with run/stop communication using the included remote cable. The B-Box mounts onto an optional top plate using the included side mount.
In the Box
- Wooden Camera D-Box for Sony Burano Camera (Gold Mount)
- Limited 1-Year Manufacturer Warranty
- Wooden Camera B-Box System for Sony BURANO
- Wooden Camera B-Box for Sony BURANO
- Wooden Camera B-Box Bolt-On Mount for Sony BURANO
- Wooden Camera Remote Cable for Sony BURANO B-Box
- Wooden Camera B-Box Link Cable for Sony VENICE, VENICE 2, and BURANO
Additional Resources
No additional resources available
Wooden Camera A00599Specs
| Power Output |
D-Tap: VDC
LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
Gold Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
Mini 4-Pin XLR: VDC
|
| Power Output |
D-Tap: VDC
LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Inputs/Outputs |
1x D-Tap
1x LEMO 2-Pin 1x LEMO 3-Pin 1x Mini XLR 4-Pin Male |
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Dimensions |
53.5 x 39.4 x 15" / 136 x 100 x 38 cm
|
| Weight |
0.9 lb / 394.6 g
|
| Package Weight |
1.22 lb
|
| Box Dimensions (LxWxH) |
7.3 x 4.7 x 3.2"
|
