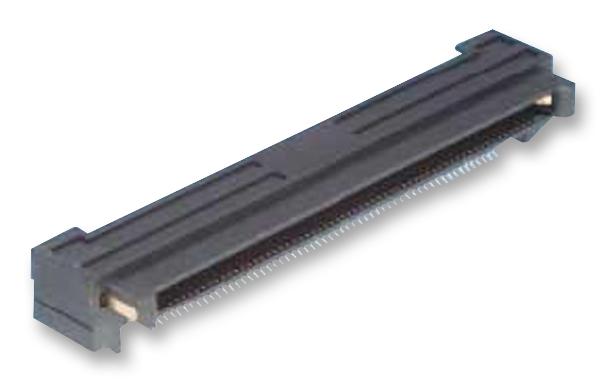

HIROSE(HRS) FX18-80P-0.8SV10 Board-To-Board Connector 0.8 mm 80 Contacts Header Functionmax FX18 Series Surface Mount

The FX18 series from Hirose are surface mount straight board to board headers with 0.8mm pitch spacing for coplanar /vertical/ stacking connection. It has multi-functional (MF) contact such as ground contact to enhance grounding, power supply contacts up to 12A to reduce required pin counts and 3 step sequential contacts for grounding and detection. These connectors have large mating guide for easy insertion and mates with signal contact of 2mm.

• Insertion loss to cross talk ratio (ICR) meets IEEE 802.3ap specifications for 10+Gbps
• Pin through hole mounting multifunction contacts increase strength against wrenching
• Stacking heights is 10mm
• 80 contacts
• Operating temperature range from -55?C to 80?C
• Phosphor bronze contacts with gold plating
• Rated voltage of 100VAC and rated current of 0.5A (signal) and 3A (multi functional contact)
• Flammability rating meets UL94 V-0, black colour polyamide (PA) insulator
• Maximum contact resistance of 90mohm
• Mating cycles is 500

Applications

Industrial

Other details

Brand	HIROSE(HRS)
Part Number	FX18-80P-0.8SV10
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
Drawing EN
