Description

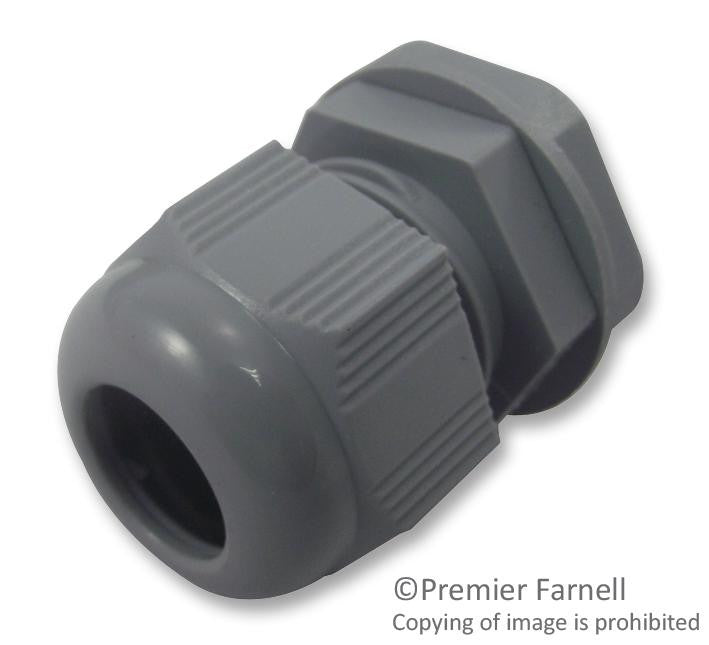

The 20MM series of TE Connectivity are nylon cable glands and locknuts which are designed with anti-vibration top caps. This assists in areas where vibration could be a problem. Although the cap when tightened is locked it can be un-screwed and re-tightened.
- Anti vibration cap
- Gland comes complete with locknut
- Neoprene seal
- Protection class to IP68/5 bar
- Operating temperature range -30�C to 80�C
- Operating temperature up to 150�C intermittent
- VDE compliant
- Available in black, grey, red and white
- 20mm size gland available in 10.0mm to 14.0mm cable range
Applications
Industrial, Maintenance & Repair
Product details
| Cable Diameter Max | 12mm |
| Cable Gland Material | Nylon 6 (Polyamide 6) |
| Thread Size - Metric | M20 |
| Product Range | - |
| Cable Diameter Min | 6mm |
| Thread Size - Imperial | - |
| IP / NEMA Rating | IP68 |
| Gland Colour | Grey |
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1478768-3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
