Description

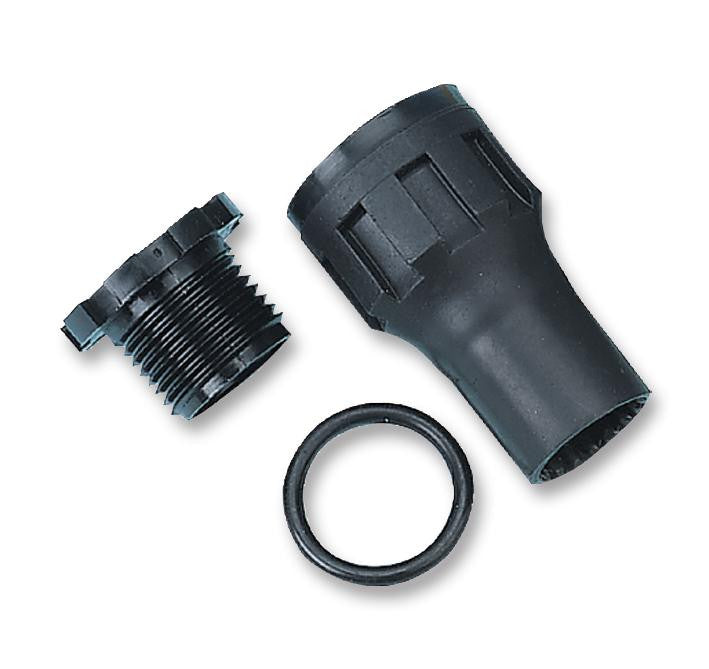

The CES-2 is a heat-shrinkable Cable Entry Seal made of flame retardant polyolefin. It provides a watertight, fume-tight seal where cables enter connection boxes, bulkheads or other enclosures. This standard seal features thin-wall enclosures consists of a three-part assembly - a rigid plastic nylon nut, an O-ring and a heat-shrinkable molded area. It is available with the molded area configured with one opening for a single wire or cable entry or with two, three or four legs of equal size to seal multiple wires or cables at the entry to enclosures and/or bulkheads. To meet sealing requirements, It has factory-applied adhesive that provides the seal to wire and cable jackets.
- Seals multicable openings
- Seals per U.S. coast guard HQ 3774 in wet, dry and corrosive locations
Applications
Industrial
Product details
| Total Length - Metric | 69.85mm |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Shrink Ratio | 3:1 |
| I.D. Recovered Max - Imperial | 0.25" |
| I.D. Supplied - Imperial | 0.75" |
| I.D. Supplied - Metric | 19.1mm |
| Product Range | - |
| I.D. Recovered Max - Metric | 6.4mm |
| Shrink Tubing / Boot Colour | Black |
| Total Length - Imperial | 2.75" |
| Boot Configuration | Straight |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | CES-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
