Description

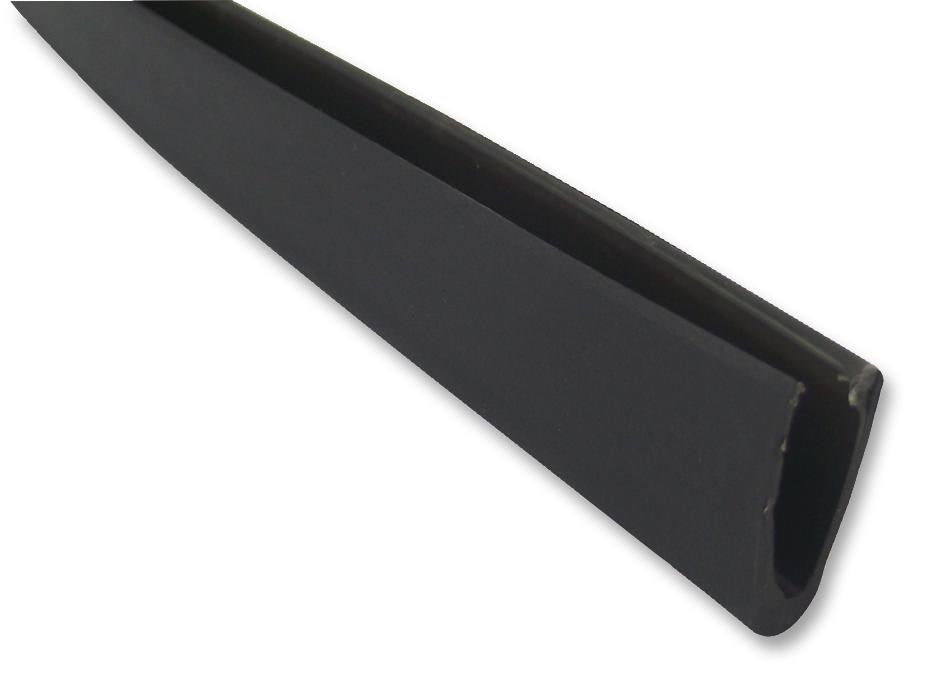

The RAYRIM-NR series are extruded polyolefin strip grommets from TE Connectivity. Internally coated with a heat activated adhesive that on heating profile changes from a 'V' to a 'U' section and the adhesive bonds to the substrate profile. Profile offers a clean and rapid means of covering metal, wood and glass edges for all round protection. Flexible nature of product feature application to both internal and external radii, as well as straight edges.
- Installation temperature is 150�C to 200�C
- Operating temperature range -55�C to 80�C
- Available in different dimensions
- Available with standard size of 30SWG to 5SWG
- Thickness of0.31mm to 5.38mm
- Black colour
Applications
Industrial
Footnotes
On the application of heat above +80�C, the adhesive will melt and flow.
Product details
| Cable Diameter Max | - |
| Grommet Colour | Black |
| Grommet Type | Heat Shrink Edging |
| Panel Thickness Max | 1.63mm |
| Mounting Hole Dia | - |
| Product Range | - |
| Cable Diameter Min | - |
| Grommet Material | PO (Polyolefin) |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | RAYRIM-NR7-0-769-186 |
| Quantity | Each |
| Technical Data Sheet EN |  |
