Description

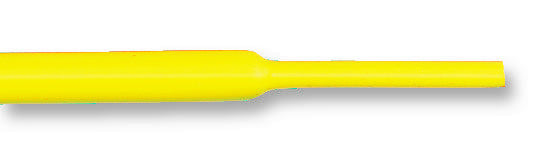

The RNF-100 series from TE Connectivity are general purpose, flame retardant, high performance polyolefin heat shrinkable tubing. Features higher level of performance at elevated temperature, mechanical abrasion and fluid resistance, tubing are high quality, heat shrinkable product for wide variety of uses, has an excellent physical, chemical and electrical properties that meet industrial and military requirements.
- Irradiated modified polyolefin material
- Flexible coloured polyolefin tubing
- Single wall type
- Maximum working voltage of 600V
- Wide range of colours and sizes
- 2:1 shrink ratio
- Fluid types suited are aviation Fuel, Hydraulic Fluid, Lubricating Oil, Water
- Compliant to MIL-DTL-23053/5 Class 1&2 standard
- Minimum shrink temperature +121�C
- Operating temperature range -55�C to +135�C
Applications
Industrial
Product details
| Length - Metric | 1.2m |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Shrink Ratio | 2:1 |
| I.D. Recovered Max - Imperial | 0.125" |
| I.D. Supplied - Imperial | 0.251" |
| Length - Imperial | 4ft |
| I.D. Supplied - Metric | 6.4mm |
| Product Range | RNF-100 Series |
| I.D. Recovered Max - Metric | 3.2mm |
| Shrink Tubing / Boot Colour | Yellow |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | RNF-100-1/4-4-STK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
